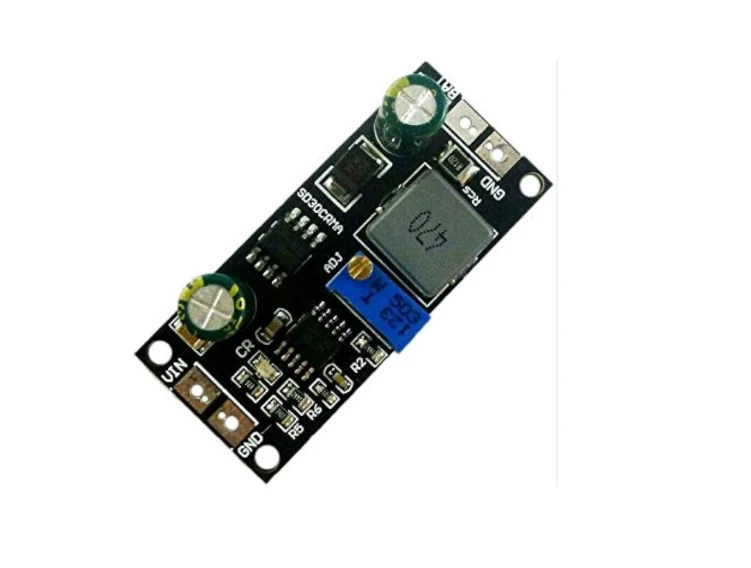

The SD30CRMA MPPT is a Maximum Power Point Tracking (MPPT) solar charge
controller designed to optimize the power output from solar panels by
continuously tracking and adjusting to the maximum power point. It ensures
efficient energy conversion and battery charging in solar power systems. This
component is essential for maximizing the efficiency of solar power systems,
making it a popular choice for both residential and commercial solar
installations.
MPPT 3.7V 3.8V 7.4V 11.1V Lithium
Battery Charger Module for 12V Solar Panel DIY KIT
Description:
1A 12V Battery
Charger with With Photovoltaic Cell MPPT Function
Complete Charge Controller for
Single or Multi-cell Lithium ion, LiFePO4 or
Lithium Titanate Batteries.
MPPT is 12V : Input DC 12-28V,Output DC 1.2-11V
Adjustable(3.6V 4.2V 4.3V 4.35V 8.4V)

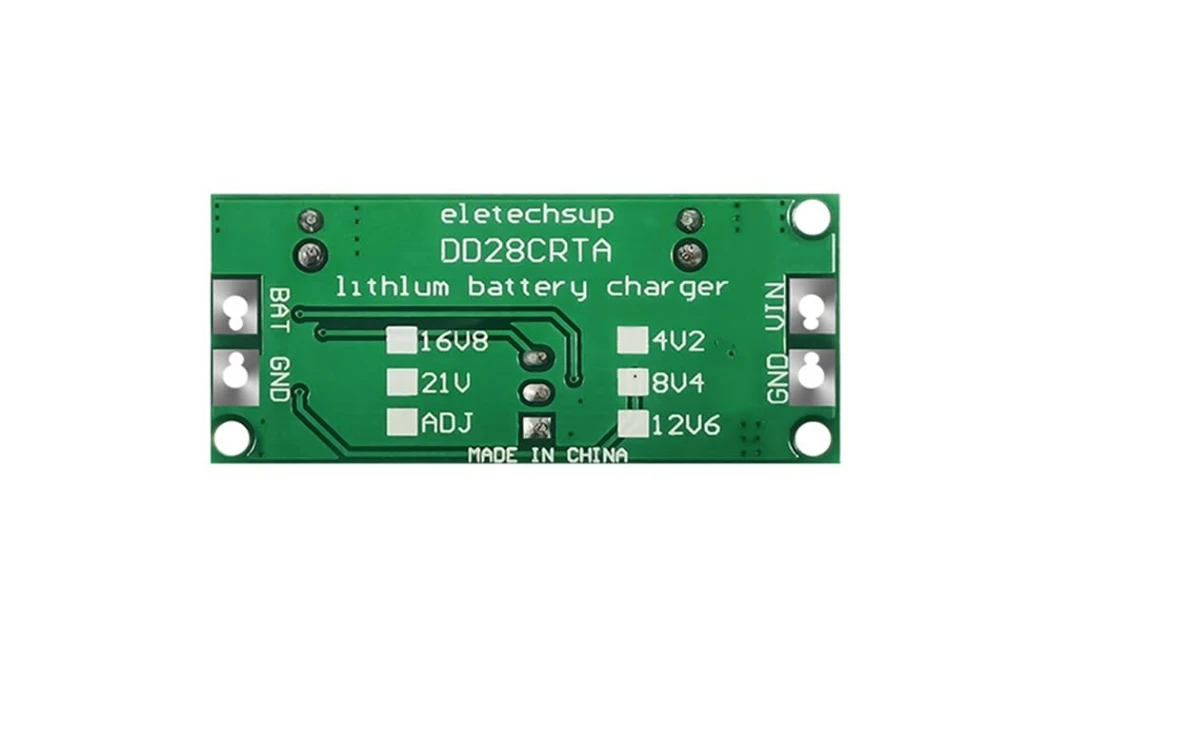

MPPT Disable(Change R5 to 12KΩ,it is recommended to buy DD28CRTA) :
The maximum charge current / output current is 1A, but you can change the
current by changing the value of the Rcs resistor.
Can be used as Voltage Source when
Battery is Absent
Automatic Conditioning of Deeply
Discharged Batteries
Automatic Recharge
Led indicator : ''CR'' LED is
charge status indicator
Battery Overvoltage Protection
Operating Ambient Temperature－40℃ to ＋85℃
Size : 45 x 20 x 15mm
Weight : 7.3g
