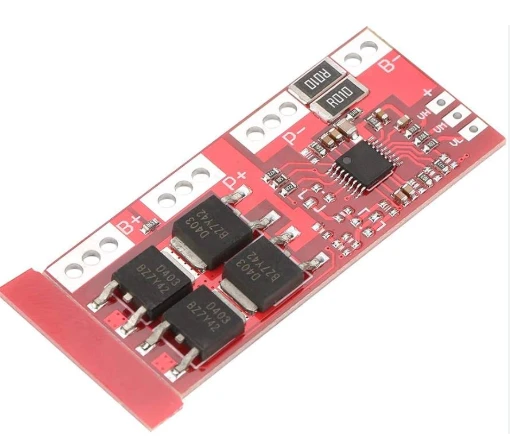

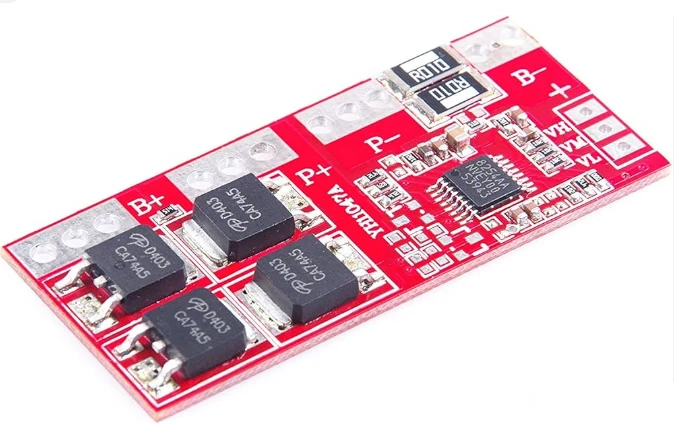

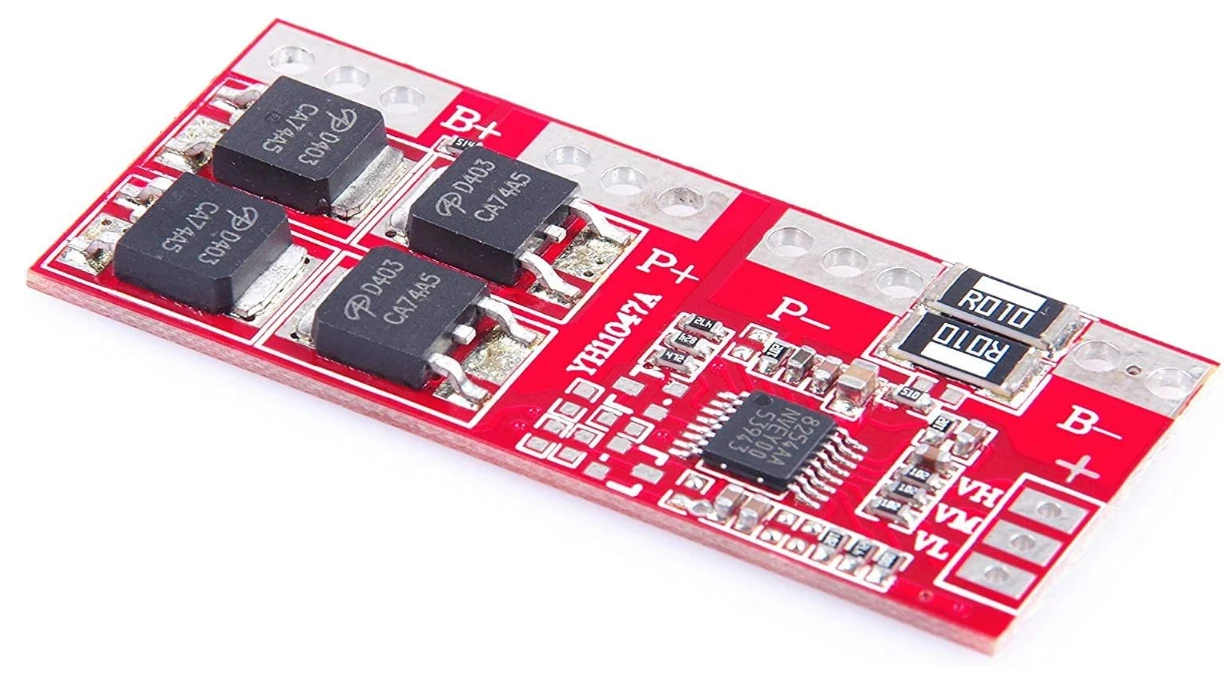

3S 30A BMS 18650 Li-ion Lithium Battery Charger Protection Board

(0) 0 Reviews 1 Orders 0 Wish listed

UGX30,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

New force to do, 3 string lithium battery protection board, suitable for the nominal voltage 10.8V lithium battery pack, 11.1V lithium battery pack, 12.6V lithium battery pack. With automatic activation, protection conditions automatically restored after the restoration of protection, no charger activation, the use of more convenient.

The protection board can be modified according to customer requirements voltage, current and other parameters.

Specifications:

· Module name: 3 string lithium battery protection board

· Module nature: polymer lithium battery protection board

· Overcharge detection voltage: 4.25 ± 0.025V

· Overcharge release voltage: 4.15 ± 0.05V

· Over-discharge detection voltage: 2.50 ± 0.08V

· Over discharge release voltage: 3.00 ± 0.1V

· Overcurrent: 20-30A

· Operating current: 15A (natural cooling 10A, plus heat sink 15A, the maximum instantaneous current 30A) For other current, please contact customer service.

Main features:

· Overcharge protection,

· Over-discharge protection,

· Short circuit protection,

· Overcurrent protection.

Operating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat)

Wiring: welding output

Module size: 50mm * 22mm * 4mm

Module weight: 10 grams

Applications:

The protection board can be used as a nominal voltage of 10.8V, 11.1,12.6V four string polymer lithium battery pack, four 18650 lithium battery pack as overcharge, over discharge, short circuit protection. No activation is required. For applications with high instantaneous currents, inverting applications can protect against false triggering and are easier to use.
