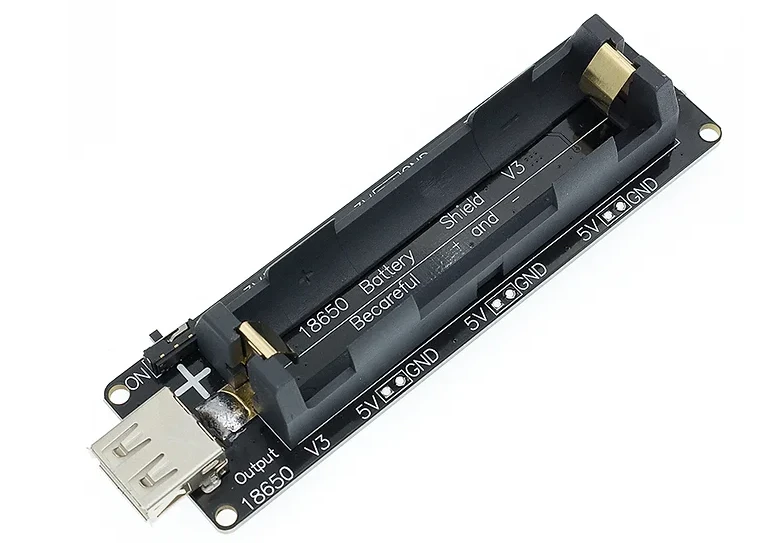

This is a 1x 18650 Lithium Battery
Shield V3 Mobile Power Expansion Board Module 5V/3A 3V/1A Micro USB for Arduino
ESP32 ESP8266 and Raspberry Pi. This mobile power supply has a built-in lithium
battery protection IC, which has overcurrent, overvoltage, Under voltage
protection, and the module is a portable mobile power supply that
supports 3V/1A and 5V/3A two voltage outputs with an onboard voltage switching
button
Installation of the battery must be
determined positive and negative, the board has been clearly marked positive
and negative Or Installation errors will burn out the module. The battery
voltage works normally from 3.2V to 4.2V. 5V voltage output rated current is
3A, maximum support 3.6A current, the output of current depends on the quality
of the 18650 battery.
Features:
1.
Supports 3V 1A voltage outputs.
2.
Supports 5V 3A voltage outputs.
3.
Micro USB charging current is
600mA-800mA.
4.
Supports up to one 18650 battery. It
is recommended to use a single 18650 battery, which can be longer.
Package Includes:
1 x 18650 Lithium Battery Shield V3
for Arduino ESP32 ESP8266 and Raspberry Pi
