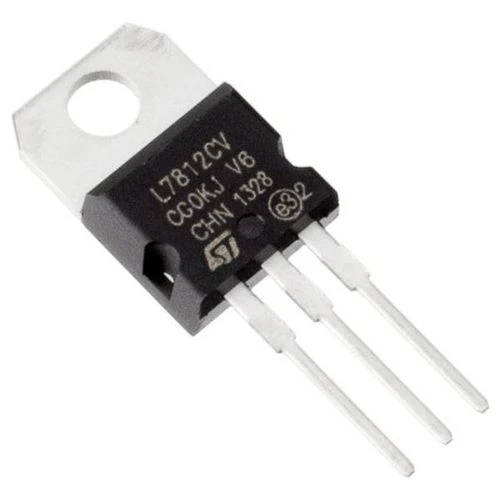

LM7812CV L7812CV LM7812L-TA3-T KA7812, 1 Linear Voltage, Voltage Regulator 1.5
(0) 0 Reviews 0 Orders 0 Wish listed
UGX1,000.00
Quantity :
Total price :
  (Tax : )
Out of stock

L78 Series of fixed output voltage regulators are useful in a wide range of applications within the electronics Industry. The three terminal positive linear voltage regulators can remove problems that are related with single point regulation by providing local on-card regulation. The Regulator IC can deliver up to 1.5A at the fixed output voltage, which can range from 5 V to 24 V. The voltage regulator offers safe area protection with the addition of internal thermal shutdown and current limiting.

Key parameters:

Polarity: Positive
Number of Outputs: Single
Output Type: Fixed
Output Voltage: 12 V
Output Current: 1.5 A
Line Regulation: 240 mV
Load Regulation: 240 mV
Dropout Voltage (Max): 2.5 V @ 1A
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: 0 C


No review given yet!

Fast Delivery all across the country
Safe Payment
7 Days Return Policy
100% Authentic Products
