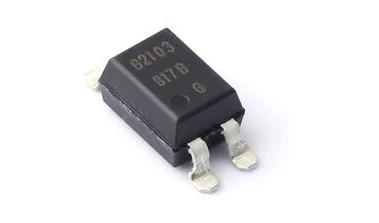

PC817 Opto-coupler
(0) 0 Reviews 0 Orders 0 Wish listed
UGX1,000.00
Quantity :
Total price :
  (Tax : )
Out of stock

Product Description

Number of channels: 1
Isolation voltage: 5kV
Optocoupler Output Type: optical transistor
Input Current: 20mA
Output voltage: 80V
Package types: DIP
Pin Count: 4
SVHC (highly concerned about the substance): No SVHC (15-Dec-2010)
Approval Bodies: UL
Rise time: 18μs
Fall time: 18μs
Power consumption: 200mW
Power dissipation, Pd: 200mW
Outside width: 6.5mm
External Depth: 4.58mm
External Length / Height: 3.5mm
Operating temperature range: -30 ° C to +100 ° C
Pin pitch: 2.54mm
Of a type approved: UL Recognised
Pitch: 7.62mm
Maximum forward current, If: 50mA
Voltage, Vceo: 80V
Current, Ic: 20mA
The current pass rate (CTR) Minimum: 200%
Current transfer ratio (CTR), Maximum: 400%
Output Type: phototransistor
