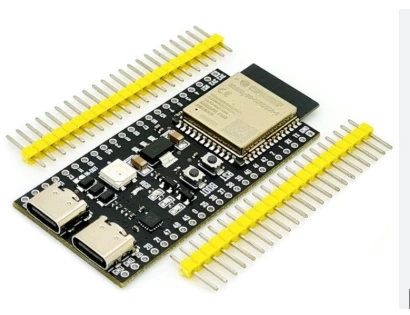

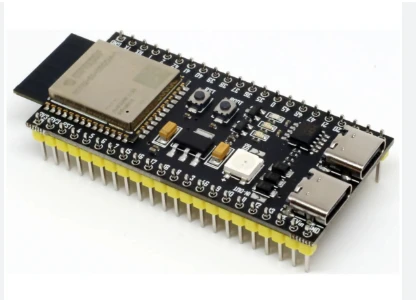

The ESP32-S3 is a development board equipped with ESP32-S3-N16R8, a general-purpose Wi-Fi + Bluetooth® LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions. Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-S3 DevKitC on a breadboard.

ESP32-S3-WROOM-1 is a powerful, generic Wi-Fi+ Bluetooth LE MCU module built around the ESP32-S3 series of SoCs. On top of a rich set of peripherals, the acceleration for neural network computing and signal processing workloads provided by the SoC makes the module an ideal choice for a wide variety of application scenarios related to Artificial Intelligence of Things (AIoT), such as wake word detection, speech commands recognition, face detection, and recognition, smart home, smart appliances, smart control panel, smart speaker, etc.

Specifications:

• Board Model: ESP32-S3-N16R8
• Main Module: Espressif ESP32-S3-WROOM-1-N16R8 (Xtensa® 32-bit LX7 Dual-Core Processor, Up to 240MHz)
• Flash Memory: 16MB Quad SPI In-Package
• ROM: 384kB
• PSRAM: 8MB
• RTC SRAM: 16kB
• PSRAM: 8MB Quad SPI In-Package
• USB to UART Interface IC: WCH CH343P
• USB Connector Type (Dual): 2x USB Type-C Female Sockets (1x USB & OTG Port; 1x USB to UART Port) (Labelled underneath PCB as “USB” and “COM”)
• Supply Voltage: 5VDC
• On-Board Regulator: AMS1117 (Fixed 3.3V Version)
• ESP Module Operating Voltage: 3.3VDC
• Indication LEDs: 1x WS2812 RGB LED / 1x Power LED / 1x USB-UART TX LED / 1x USB-UART RX LED
• Operating Temperature: -40 to +65°C
• Number Of Pins: 44
• Pin Pitch: 2.54mm
• Spacing Between Pin Rows (Pin Centre to Centre): ~25.4mm (Breadboard Compatible)
• Board Dimensions (Including Pin Headers): ~(63.6mm x 27.8mm x 4.9mm)

• WiFi Protocols: 802.11 b/g/n (1T1R mode with data rate up to 150 Mbps)
• Frequency Band: 2.4GHz (Supports 20MHz and 40Mhz Bandwidth)
• Wireless Network Modes: Station / SoftAP / SoftAP + Station
• Hardware Features: 45x Programmable GPIO’s / 4x SPI / 1x LCD Interface / 1x DVP Camera Interface / 3x UART / 2x I²C / 2x I²S / 1x RMT (TX; RX) / etc
• WiFi Security: Secure Boot / Flash Encryption / 4k-bit OTP, up to 1792 bits for users / Cryptographic Hardware Acceleration

• Bluetooth Protocols: Bluetooth LE – Bluetooth 5, Bluetooth Mesh
• Power: Up to 20dBm
• Speeds: 125kbps / 500kbps / 1MBps / 2MBps
• Advertising Features: Advertising Extensions / Multiple Advertising Sets
• Other Features: Internal co-existence mechanism allowing WiFi and Bluetooth to share a single antenna

Package contents:

1x ESP32-S3-N16R8 development board only
