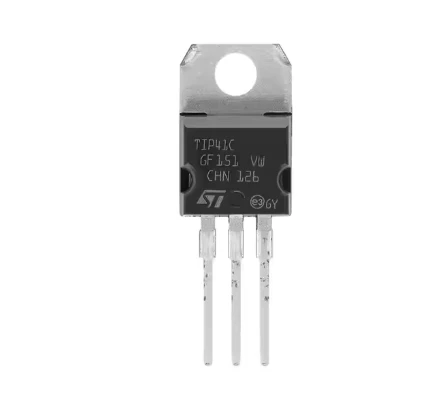

The TIP41 is a widely used NPN power transistor designed for general-purpose switching and amplification applications. It is capable of handling medium to high power levels and operates effectively in a variety of electronic circuits where switching and amplification of signals are required.

Key Features:

• Transistor Type: NPN (Negative-Positive-Negative) bipolar junction transistor.
• Maximum Collector-Base Voltage (V_CB): Typically 100V.
• Maximum Collector-Emitter Voltage (V_CE): Typically 100V.
• Maximum Emitter-Base Voltage (V_EB): Typically 5V.
• Collector Current (I_C): Rated up to 6A continuous (higher peak current ratings may be achievable with appropriate heatsinking).
• Power Dissipation (P_D): Maximum power dissipation is typically around 65W.
• Gain (h_FE): Typically ranges from 15 to 75, depending on operating conditions.
• Package Type: TO-220 package, which allows for efficient heat dissipation.
• Applications: Commonly used in power supply circuits, audio amplifiers, motor drivers, and general switching applications where moderate power handling and switching speed are required.

Technical Specifications:

• Operating Temperature Range: Typically -65°C to +150°C.
• Package Type: TO-220, providing good thermal conductivity and mechanical strength.
• Mounting Style: Through-hole mounting for easy integration into circuit boards or heat sinks.
• Pin Configuration: Base (B), Collector (C), Emitter (E).

Applications:

• Power supply regulators and switches.
• Audio amplifiers and preamplifiers.
• Motor drivers and solenoid control.
• General-purpose switching and amplification in various electronic circuits.

Datasheet: For detailed technical information, refer to the TIP41 datasheet.
