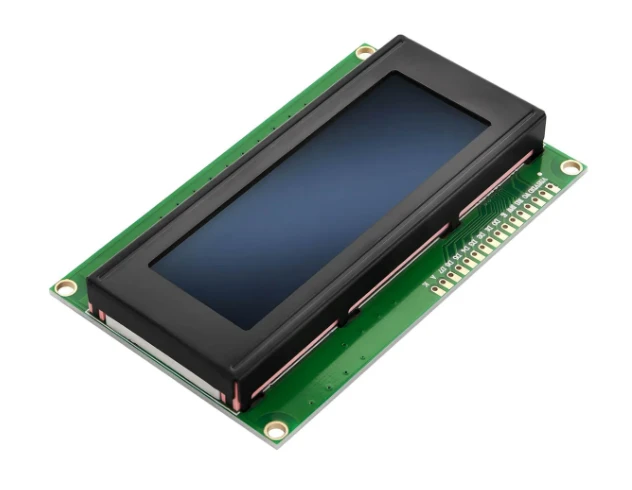

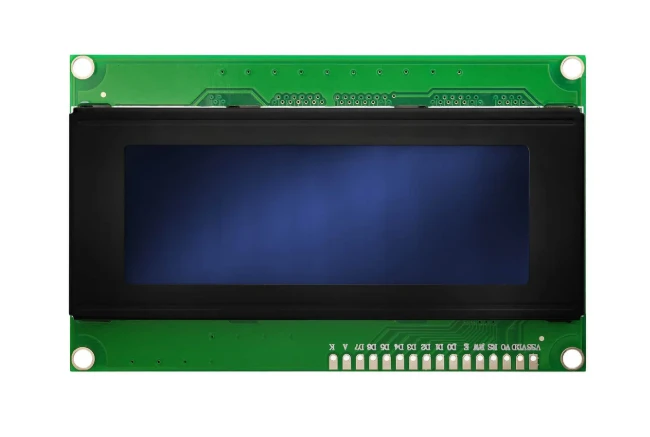

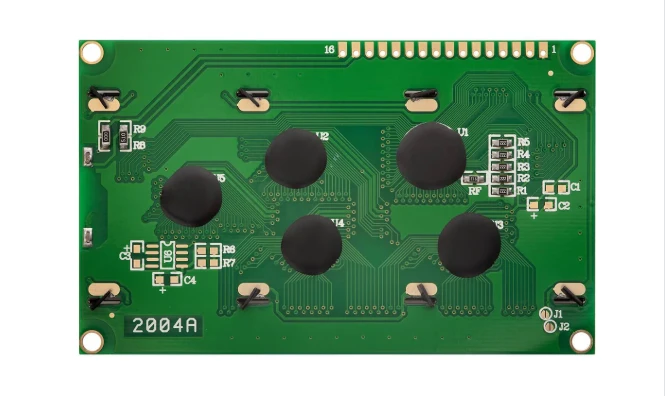

LCD 20x4 Character Module Blue

(0) 0 Reviews 0 Orders 1 Wish listed

UGX30,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

This is a basic 20 character by 4 line display. Interface code is freely available. You will need ~11 general I/O pins to interface to this LCD
screen. Includes LED backlight. If you want to add some visual output to your Arduino projects, you’ll need a display. If you need
moderate data on display, the LCD2004 Parallel LCD Display is a quite good solution for the Arduino projects.

This is an industry-standard JHD629-204A based controlled 4 lines x 20 characters LCD display with white characters on Blue background. It is a parallel interface so you will need 7 pins for 4-bit mode or 11 pins for 8-bit mode to interface to this LCD screen.

Features and Specifications:

Wide viewing angle and high contrast.
Industry-standard JHD629-204A equivalent LCD controller built-in.
+5V DC supply with 33 Ohm resistor LED backlight.
Supported 4 or 8-bit parallel interface.
Display 4-line X 20-character.
Operate with 5V DC.=
Interface with 16 pins male header Connector.
20 characters wide, 4 rows
Black text on the yellow background
The module can easily interface with an MCU
The module is a low-power consumption character LCD Module with a built-in controller
Single LED backlight included can be dimmed easily with a resistor or PWM.
Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
