Raspberry Pi Touch Display

(0) 0 Reviews 0 Orders 0 Wish listed

UGX360,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

This seven-inch, 800 x 480 touchscreen display lets you create interactive Raspberry Pi projects like tablets, entertainment systems, and information dashboards. It’s powered from your Raspberry Pi; no separate power supply is required.

Raspberry Pi OS provides touchscreen drivers with support for ten-finger touch and an on-screen keyboard, giving you full functionality without the need to connect a keyboard or mouse.

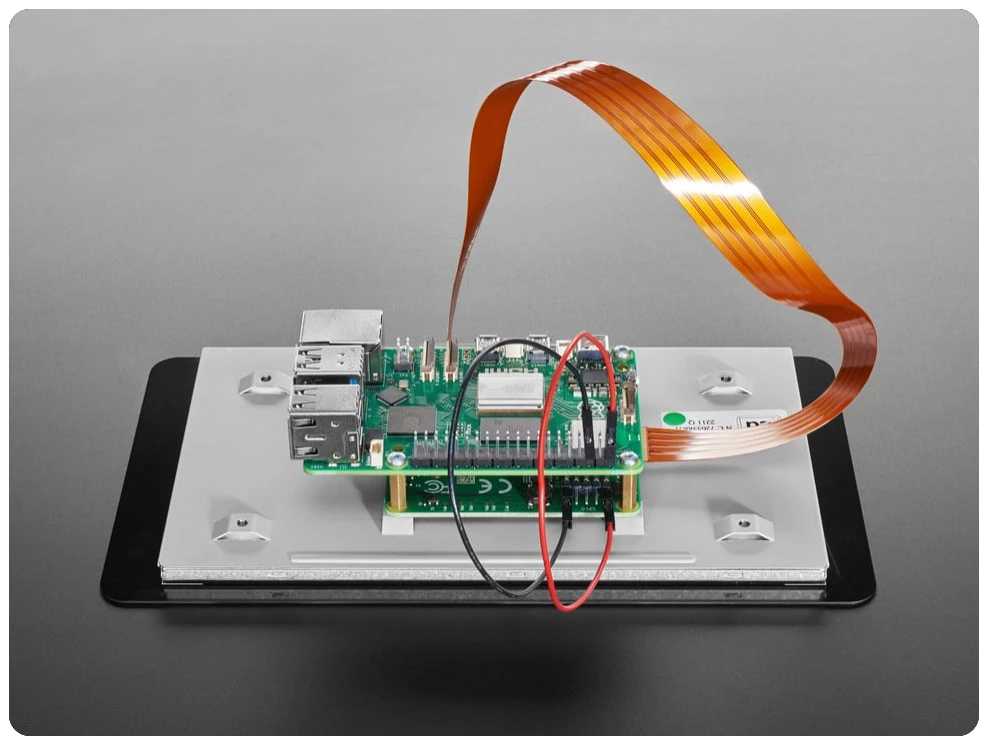

The display connects to Raspberry Pi via an adapter board that handles power and signal conversion. Only two connections to your Raspberry Pi are required: power from the GPIO port, and a ribbon cable that connects to the DSI port on all Raspberry Pi computers except for Raspberry Pi 400 and the Raspberry Pi Zero line.

Features:

Assembly module size: 192.96mm × 110.76mm
Display size (diagonal): 7 inches
Display format: 800 (RGB) × 480 pixels
Active area: 154.08mm × 85.92mm
LCD type: TFT, normally white, transmissive
Touch panel: True multi-touch capacitive touch panel with up to 10
points of absolution
Surface treatment: Anti-glare
Colour configuration: RGB-stripe
Backlight type: LED B/L

Kit contains:

7” Touchscreen Display
Adapter Board
DSI Ribbon cable
4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display)
4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
