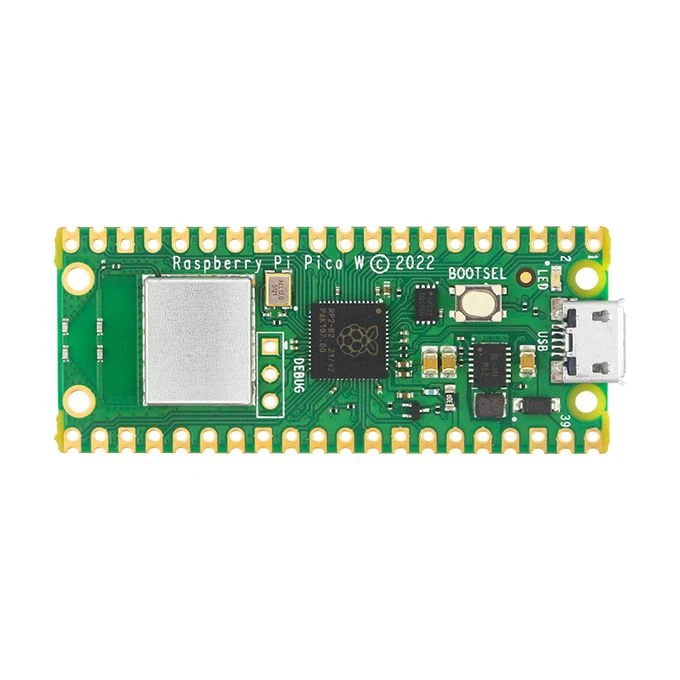

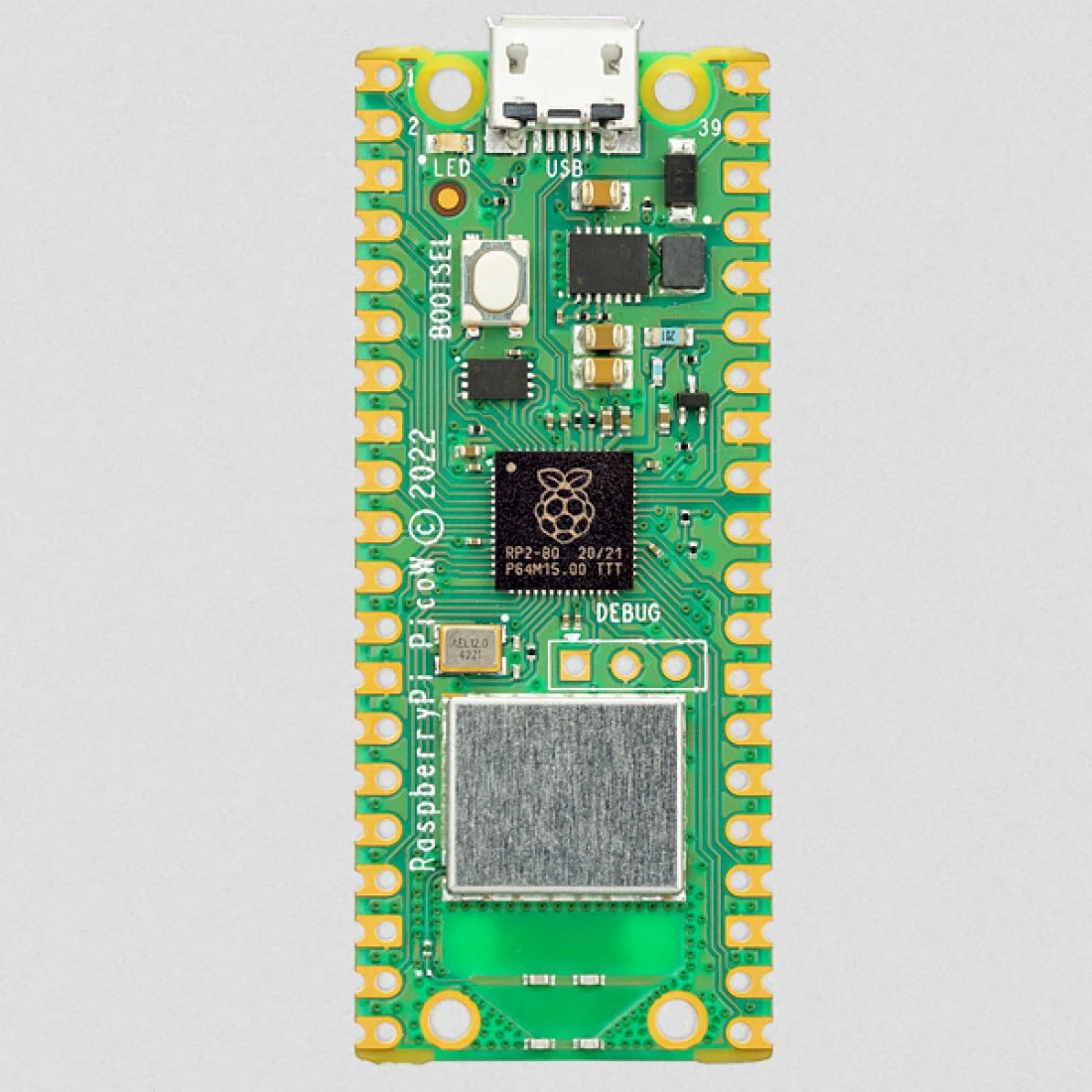

Raspberry Pi PicoW  is a tiny, fast and versatile board that is built with RP2040, a new microcontroller chip designed by Raspberry Pi in the UK. Raspberry Pi Pico can be used in many everyday operations such as controlling appliances and operating a light display among other uses. It is programmable in MicroPython and C, making it adaptable to a wide range of applications and skill levels. Getting started is just as easy and dragging and dropping a file.

Experts can take advantage of Pico’s rich peripheral set including SPI, 12C and 8 Programmable I/O (PIO) state machines to customize peripheral support.

Specification:

1.     RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

2.     Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

3.     264KB of SRAM, and 2MB of on-board Flash memory

4.     Castellated module allows soldering direct to carrier boards

5.     USB 1.1 with device and host support

6.     Low-power sleep and dormant modes

7.     Drag-and-drop programming using mass storage over USB

8.     26 × multi-function GPIO pins

9.     2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

10.  Accurate clock and timer on-chip

11.  Temperature sensor

12.  Accelerated floating-point libraries on-chip

13.  8 × Programmable I/O (PIO) state machines for custom peripheral support

14.  Wireless communication
