The Raspberry Pi
Touch Display 2 is a portrait orientation touchscreen LCD
display designed for interactive projects like tablets, entertainment systems,
and information dashboards.

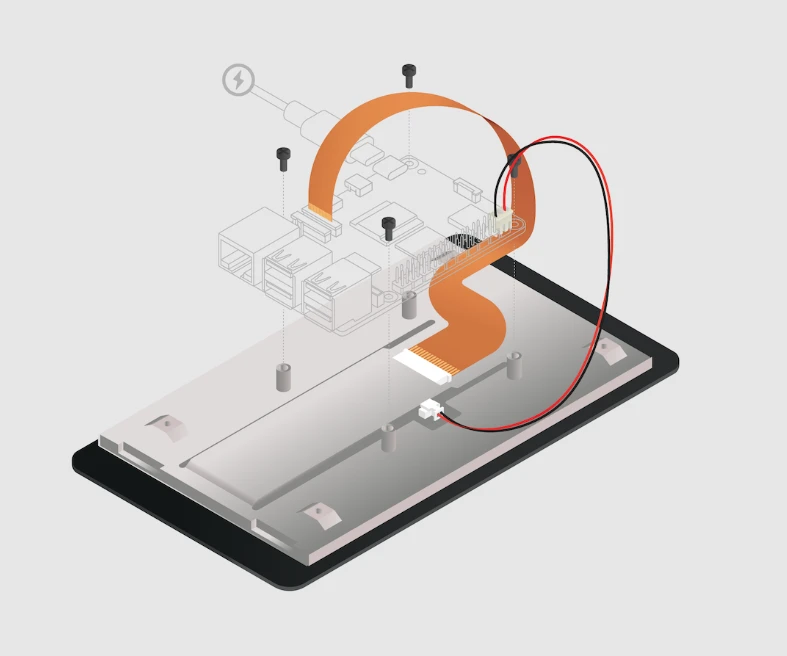

The Touch Display 2 connects
to a Raspberry Pi using a DSI connector and GPIO connector. Raspberry Pi OS
provides touchscreen drivers with support for five-finger multitouch and an
on-screen keyboard, providing full functionality without the need to connect a
keyboard or mouse.
Specifications:
·
1280×720px resolution, 24-bit RGB display
·
155×88mm active area
·
7" diagonal
·
powered directly by the host Raspberry Pi,
requiring no separate power supply
·
supports up to five points of simultaneous
multi-touch
The Touch Display 2 is
compatible with all models of Raspberry Pi from Raspberry Pi 1B+ onwards,
except the Zero series and Keyboard series, which lack a DSI connector.
Included
in box:
The Touch Display 2 box contains the following parts (in
left to right, top to bottom order in the image below):
·
Touch Display 2
·
eight M2.5 screws
·
15-way to 15-way FFC
·
22-way to 15-way FFC for Raspberry Pi 5
·
GPIO connector cable
