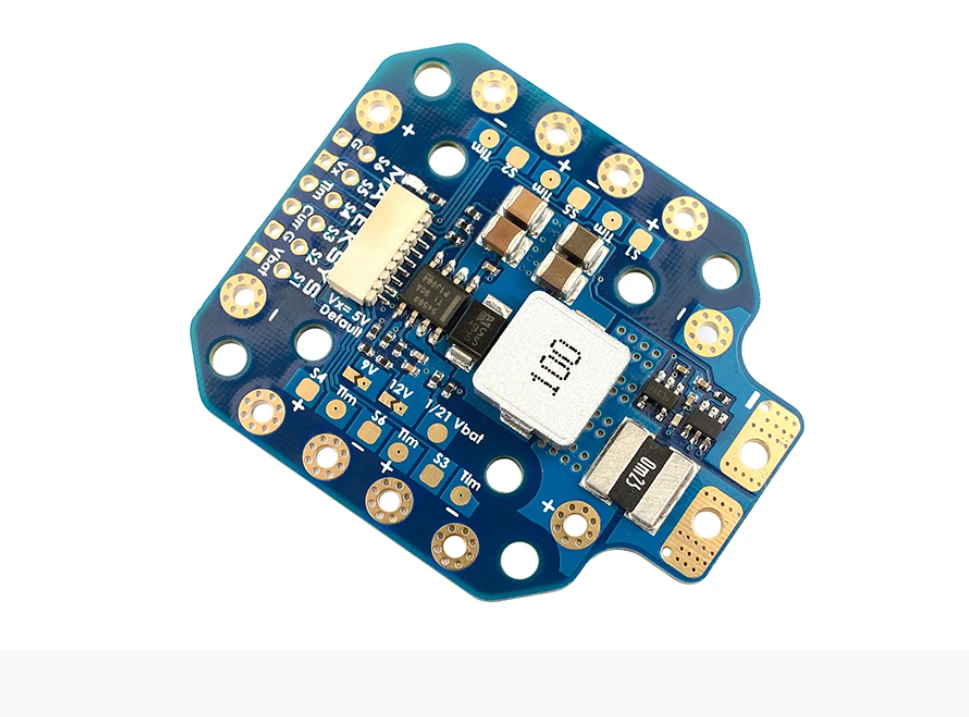

Matek’s latest HEX-PDB is
capable of handling high power draws necessary to push UAV’s or X-Class drones.
Capable of providing power for a hexacopter or quad this PDB is capable of
handling 140A continuous current and 264A burst current.
PDB:
·
Input voltage
range: 6~60V (2~12S LiPo)
·
PDB/current
sense resistor: 140A cont, 264A burst.
·
ESC power
pads: 60A cont. 100A burst
·
6x ESC power
/signal/ telemetry pads
·
Current Senor:
264A, 3.3V ADC
·
Current Scale
125(INAV/BF), BATT_AMP_PERVLT 80 (ArduPilot)
JST-SH-8P
Connector and Pads:
·
Vbat: Battery
voltage
·
G: ground
·
Curr: current
signal
·
Tlm:
Duplicates Tlm pads for ESC telemetry
·
S1/S2/S3/S4/S5/S6:
ESC signal
·
Vx: Regulator
output
BEC Vx output
(5V default):
·
· Vx=
5V by default, Continuous 5 Amps
·
Bridge 9V
jumper, Vx= 9V, Continuous 4 Amps, Max.5A
·
Bridge 12V
jumper, Vx= 12V, Continuous 4 Amps, Max.5A
·
Output
Short-circuit tolerant (1 seconds)
·
Overcurrent
protection & self-recovery
·
Voltage
divider resistors 1K:20K
·
Output 1/21
Vbat voltage
Physical:
·
Mounting: 30.5
x 30.5mm, 20 x 20mm, Φ3mm
·
Dimensions: 49
x 40 x 6 mm
·
Weight: 12g
Included in
package:
o 1x PDB-HEX
o 1x Rubycon ZLJ 63V 390uF
o 1x JST-SH1.0_8pin cable, 5cm
o 2x JST-SH1.0_8pin connectors
