Description

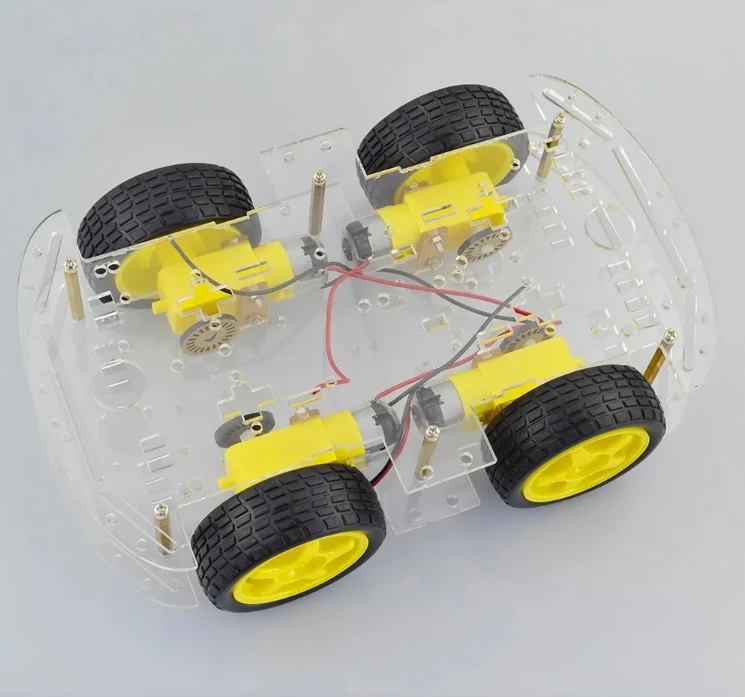

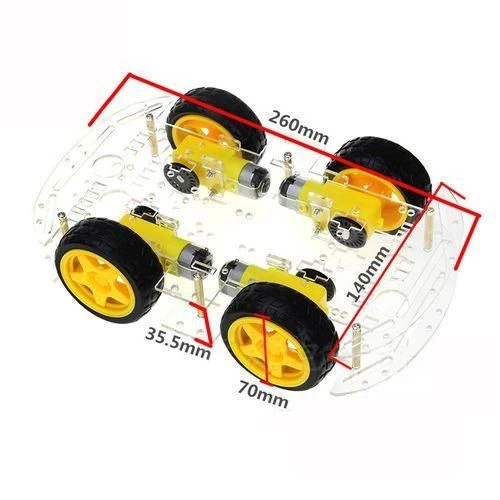

This 4WD dual-part smart car body includes 4 gear motors. With it you are able to connect external control board, drive board and other sensor elements to DIY your own smart car.
To facilitate the speed measurement, it adds 2 speed encoders as well.
Β
Motor Specifications:
1. Model: F130SA-11200-38V
2. Operating voltage: DC 3-6V
3. Rated voltage: DC 4.5V
4. No-load current: β€80mA
5. No load speed: 200 RPM
6. Deceleration ratio: 1:48
Β
Package Included:
1. Gear motor * 4pcs
2. Wheel * 4pcs
3. M3*30MM round-head screw * 8pcs
4. M3*8MM round-head screw * 14pcs
5. M3 Nickel plated nut * 10pcs
6. M3*40MM copper pillar * 6pcs
7. Speed encoder * 4pcs
8. 16mm*33mm+3mm acrylic panel * 8pcs
9. 255*147+4mm transparent acrylic panelοΌtopοΌ* 1pcs
10. 255*147+5mm transparent acrylic panelοΌbottomοΌ* 1pcs
11. 150mm black both ends tin-coat 5mm 22# connector wire * 4pcs
12. 150mm red both ends tin-coat 5mm 22# connector wire * 4pcs
