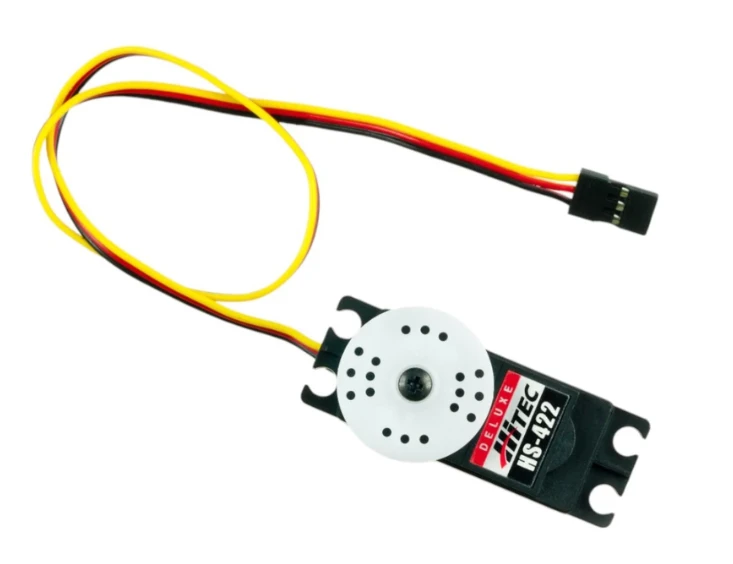

The HS-422 has been around for a while and for
a good reason, durability and the ability to be easily modified. For
inexpensive robotic applications this perfect servo. It can easily be modified
for wheeled applications since the output shaft is supported on the bottom and
top with bronze bushings and the potentiometer is indirect drive. The circuit
board is also separate from the motor so the potentiometer can be easily
accessed. Simply a great servo at a great price.
Specifications:
·
Control System: +Pulse
Width Control 1500usec Neutral
·
Required Pulse: 3-5
Volt Peak to Peak Square Wave
·
Operating Voltage:
4.8-6.0 Volts
·
Operating Temperature
Range: -20 to +60 Degree C
·
Operating Speed
(4.8V): 0.21sec/60° at no load
·
Operating Speed
(6.0V): 0.16sec/60° at no load
·
Stall Torque (4.8V):
45.82 oz/in. (3.3kg.cm)
·
Stall Torque (6.0V):
56.93 oz/in. (4.1kg.cm)
·
Operating Angle: 45
Deg. one side pulse traveling 400usec
·
360 Modifiable: Yes
·
Direction:
Clockwise/Pulse Traveling 1500 to 1900usec
·
Current Drain (4.8V):
8mA/idle and 150mA no load operating
·
Current Drain (6.0V):
8.8mA/idle and 180mA no load operating
·
Dead Band Width: 8usec
·
Motor Type: 3 Pole
Ferrite
·
Potentiometer Drive:
Indirect Drive
·
Bearing Type: Dual
Oilite Bushing
·
Gear Type: Nylon
·
Connector Wire Length:
11.81" (300mm=11.81in)
·
Dimensions: See
Schematics
·
Weight: 1.6oz (45.5g)

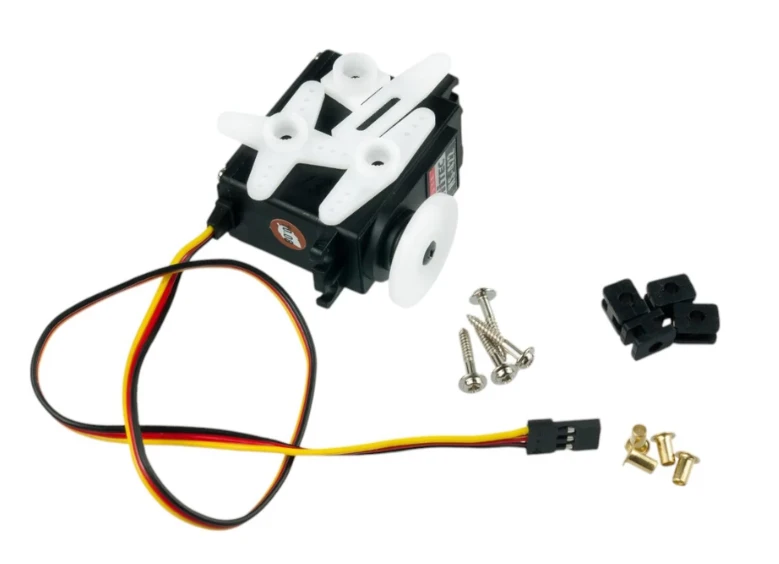

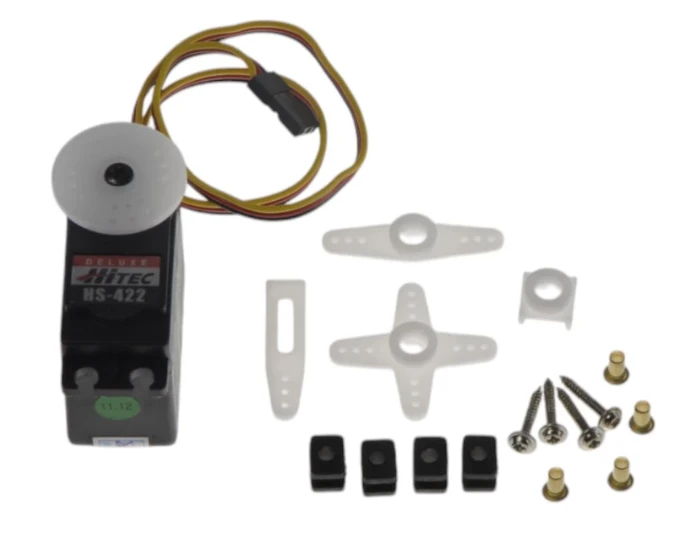

Package List:
·
Hitec HS422
Servo x1
