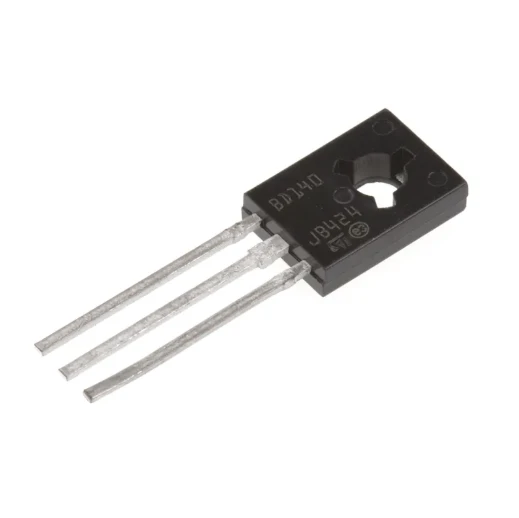

BD140 is a
PNP medium power transistor suitable for audio amplifiers, switching
applications, and power supplies. With a collector current up to 1.5A and
collector-emitter voltage of 80V, it’s ideal for controlling moderate loads. It
can also be paired in Darlington configurations or used in motor driver circuits.
Features/Specs:
·
Bi-Polar
PNP Transistor
·
Continuous
Collector current (IC) is -1.5A
·
Collector-Emitter
voltage (VCE) is- 80 V
·
Collector-Base
voltage (VCB) is- 80V
·
Base
Current (Ib) is -0.5A
·
Emitter
Base Breakdown Voltage (VBE) is -5V
·
DC
current gain (hfe) is 40 to 160
·
Available
in To-225 and SOT-32 Package
·
Collector
Dissipation: 12.5 W
·
Operating
Junction Temperature Max (Tj): 150°C
