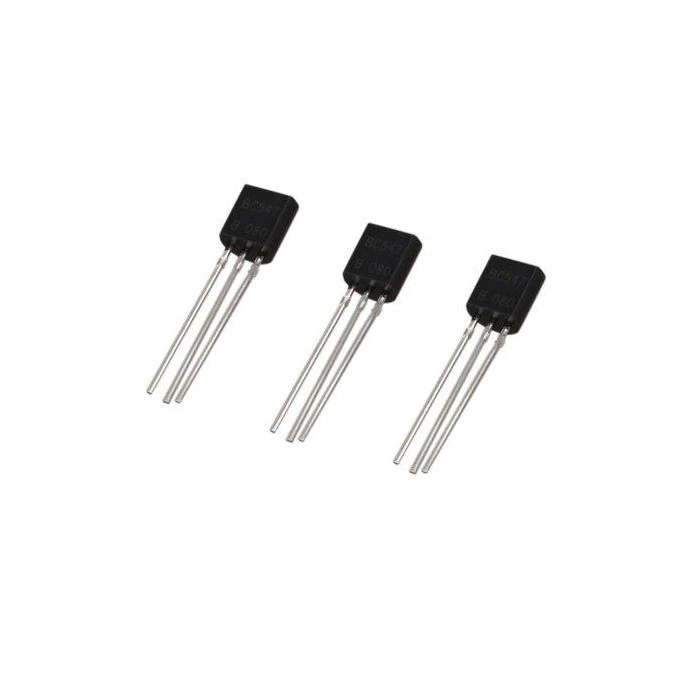

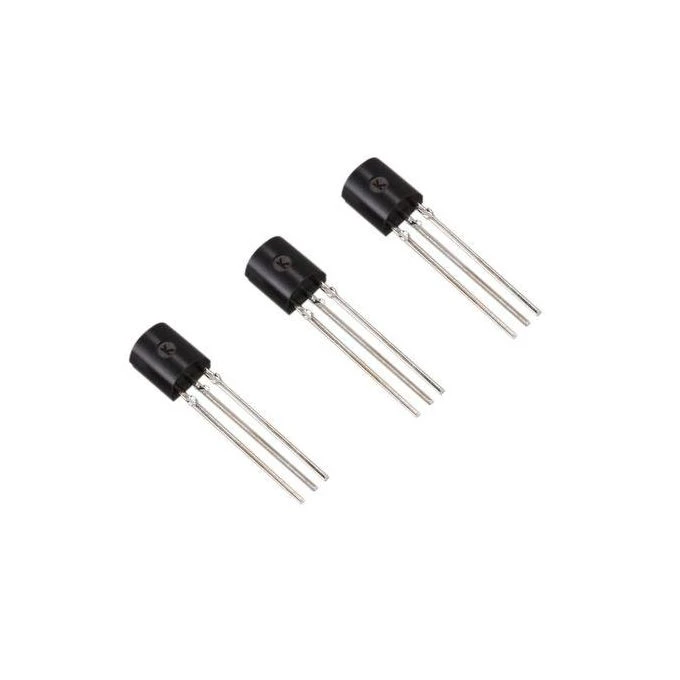

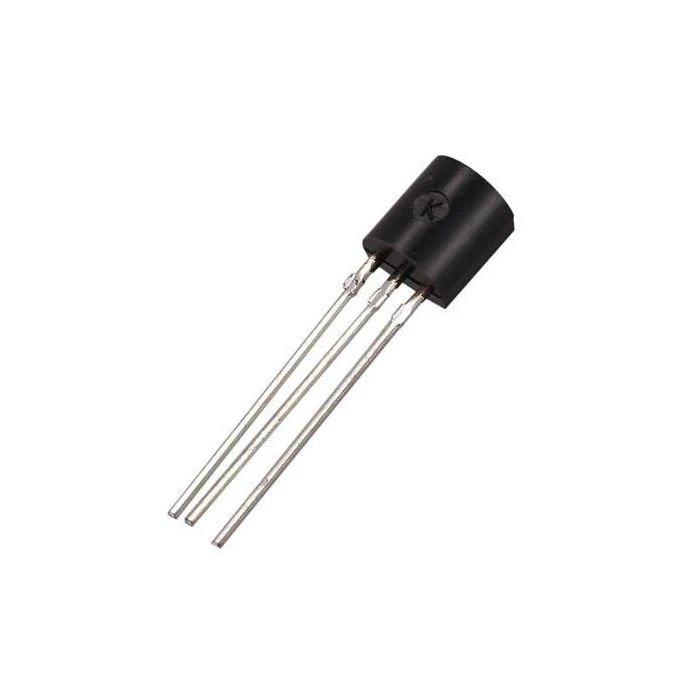

BC547 is a general-purpose BJT NPN transistor mostly used in
electronics hobbyists and educational electronics projects. Besides these uses,
it can also be used in commercial circuits. It comes in TO-92 packaging and the
maximum output current this transistor can handle is 100mA. The transistor is
having very good DC current gain and low noise capabilities due to which is
ideal to use in signal amplification stages. The typical saturation voltage is
only 90 millivolts which is also a good sign to use it as a switch.
Specifications:
Package Type: TO-92
Transistor Type: NPN
Max Collector Current(IC): 100mA
Max Collector-Emitter Voltage (VCE): 45V
Max Collector-Base Voltage (VCB): 50V
Max Emitter-Base Voltage (VEBO): 6V
Max Collector Dissipation (Pc): 500 miliWatt
Max Transition Frequency (fT): 300 MHz
Minimum & Maximum DC Current Gain (hFE): 110 – 800
Max Storage & Operating temperature Should Be: -65 to +150 Centigrade
