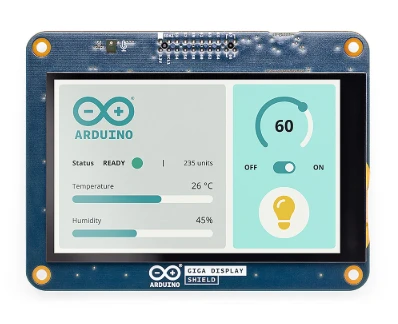

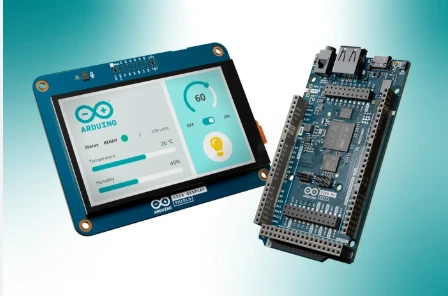

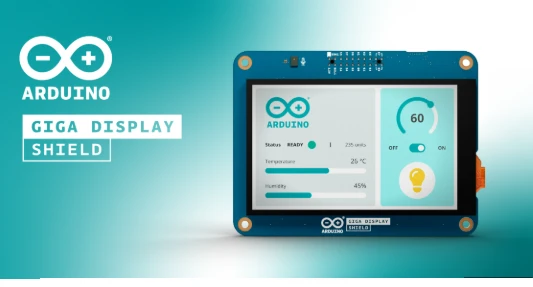

Introducing the GIGA Display Shield, a touch screen solution designed to effortlessly deploy graphic interfaces in your projects. Leveraging the new pin header connector in the middle of GIGA R1 WiFi, this shield offers seamless integration and enhanced functionalities.

With the GIGA Display Shield, you gain access to an array of features, including a digital microphone, 6-axis IMU, and Arducam connector. These added capabilities allow you to fully utilize the other 54 available pins, making it incredibly convenient to create handheld devices or dashboards to control your project.

With the Arduino GIGA Display Shield, effortlessly deploy graphic interfaces to your Arduino GIGA R1 WiFi projects using our innovative touch screen solution, which includes a digital microphone, 6-axis IMU, and Arducam® connector, enabling seamless creation of handheld devices or dashboards.

Features

• A back-light screen with the resolution of a 4.0” TFT-LCD which contains 480x800 pixels, and can display up to 16.7 million colours
• LVGL is a framework for creating sophisticated UIs, supporting animations, and touch with a large set of widgets to choose from
• Draw on the display with the easy-to-use and well documented GFX library
• The microphone on the shield is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface
• The shield has an IMU that can provide precise acceleration, angular rate measurement and intelligent on-chip motion-triggered interrupt features
• This shield has a camera connector with support for a range of Arducam® cameras. Display the camera feed directly on the display
• This shield has a built-in RGB LED that is controlled via an I2C interface

Technical Specifications:

Board Name:  Arduino® GIGA Display Shield
SKU:               ASX00039
Camera connector : SOCKET 2ROW 20POS VERTICAL PASS THROUGH (Arducam Compatible)
Video Codec: F32Q-1A7H1-11020
Touchscreen: F32Q-1A7H1-11008
Type: KD040WVFID026-01-C025A
Size: 3.97 inch
Resolution: 480x800 RGB
Colors: 16.7 million
Touch mode: Five-point touch & gesture
Interface: I2C
IMU Sensors: BMI270

Microphone: MP34DT06JTR

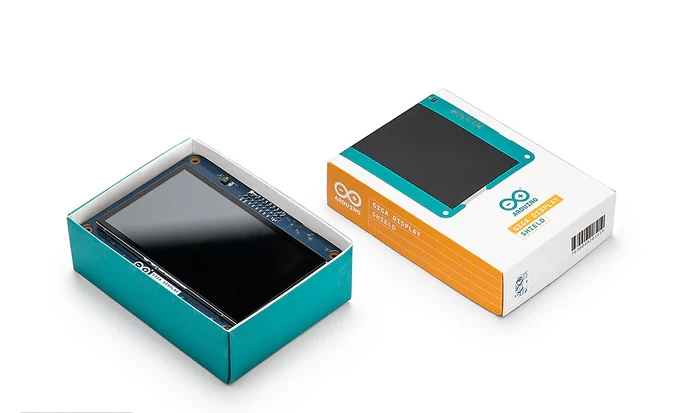

What's in the box

·         Display (KD040WVFID026-01-C025A), Digital Microphone (MP34DT06JTR), 6-axis IMU (BMI270), and Arducam Connector
