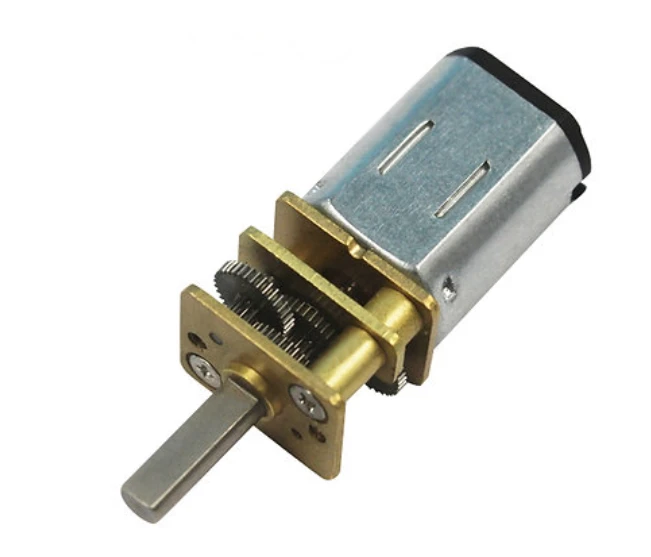

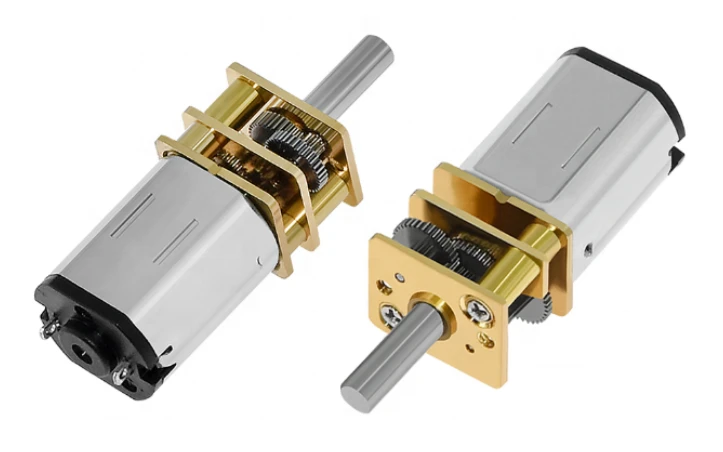

This
is a DC Mini Metal Gear Motor, ideal for making robots. Light weight, high
torque and low RPM. Fine craftsmanship, durable, not easy to wear. With
excellent stall characteristics, can climb hills easily. You can also easily
mount a wheel on the motor’s output shaft. Widely used on boat, model car,
robotic, home appliances, linear motion control.
Specifications:
Model
: GA12-N20
Rated
Voltage : 6~12V
Revolving
Speed : 100RPM @ 6V
Load Speed: 80RPM
Rated Torque: 2 kg.cm
Stall Torque: 16 kg.cm
Rated
Current: 0.07A
Stall Current: 1A
Reduction
Ratio: 1:10
Total
Length : 34mm
Gear
Material: Full Metal
Gearbox
Size : 15 x 12 x 10mm (L*W*H)
Shaft
Size : 3 x 10mm(D*L)
Net
Weight : 10g
