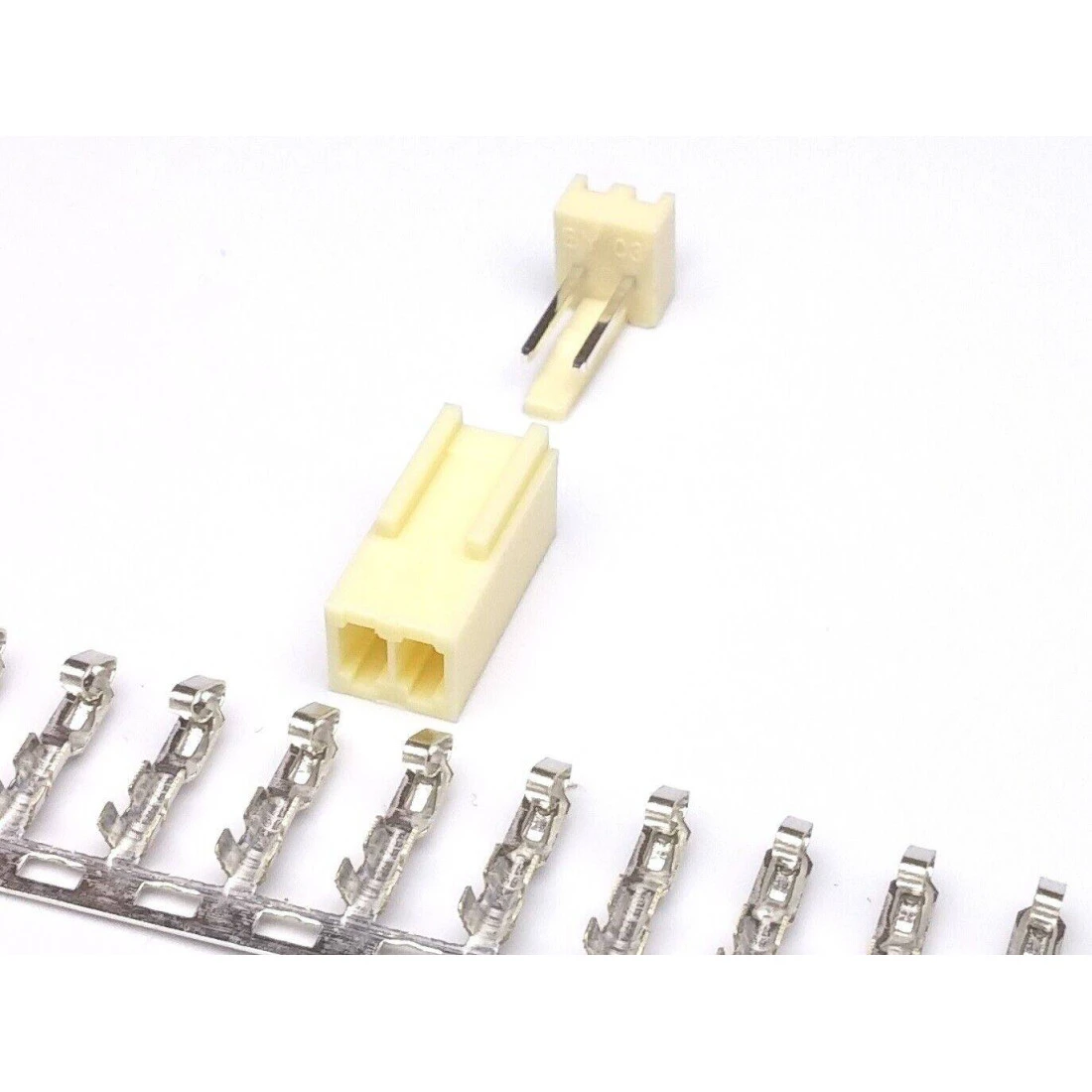

KF2510
is a series of connectors compatible with Molex 5051 / KK 254 series. This
series features a 5051-styled housing with 2.54mm pitch, in line with the more
common KK 254 series.
Technical
Data:
Pin
Pitch: 2.54mm
Maximum Current: 4A AC/DC
Maximum Voltage: 250V AC/DC
Temperature Range: -25Β°C - +85Β°C
Contact Resistance: β€10mΞ© (β€20mΞ© after environmental testing)
Insulation Resistance: β₯1000MΞ©
Withstanding voltage: 1000V AC/minute
Compatible Wire Size: 28AWG - 22AWG
Housing Material Nylon: PA66 (UL94V-0)
Header Material Nylon: PA66 (UL94V-0), Brass, Tin (plating)
Contact Material: Phosphor bronze, Tin (plating)
