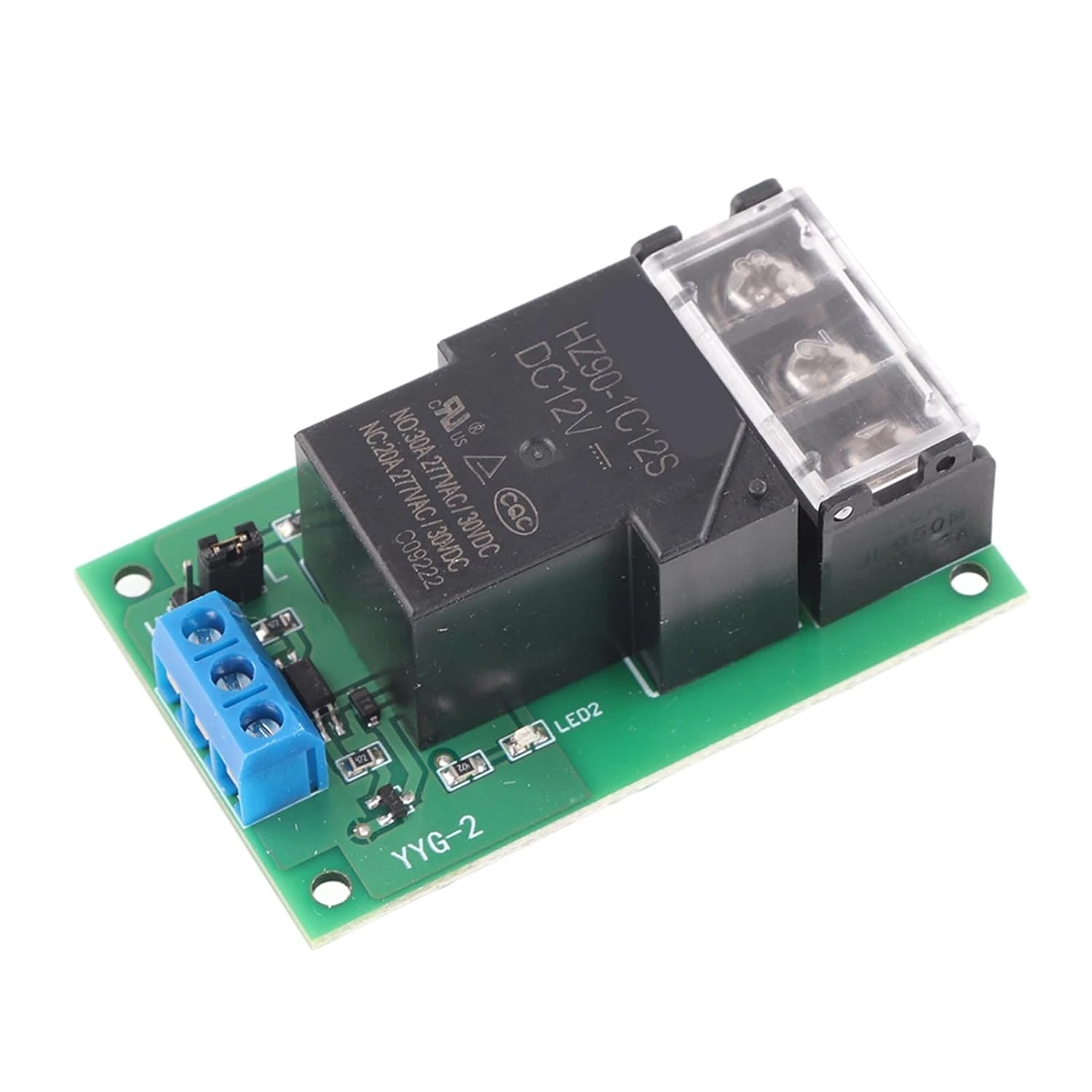

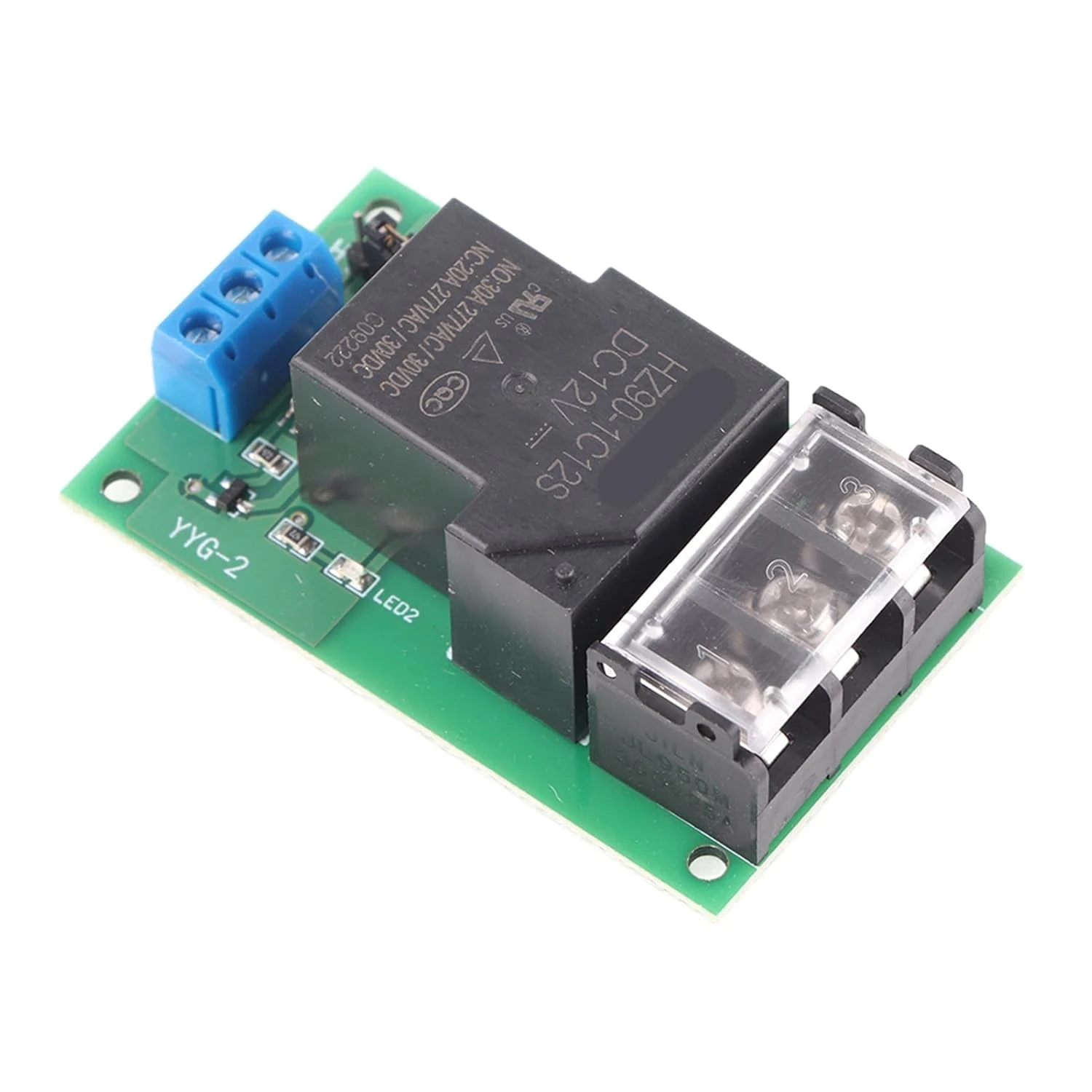

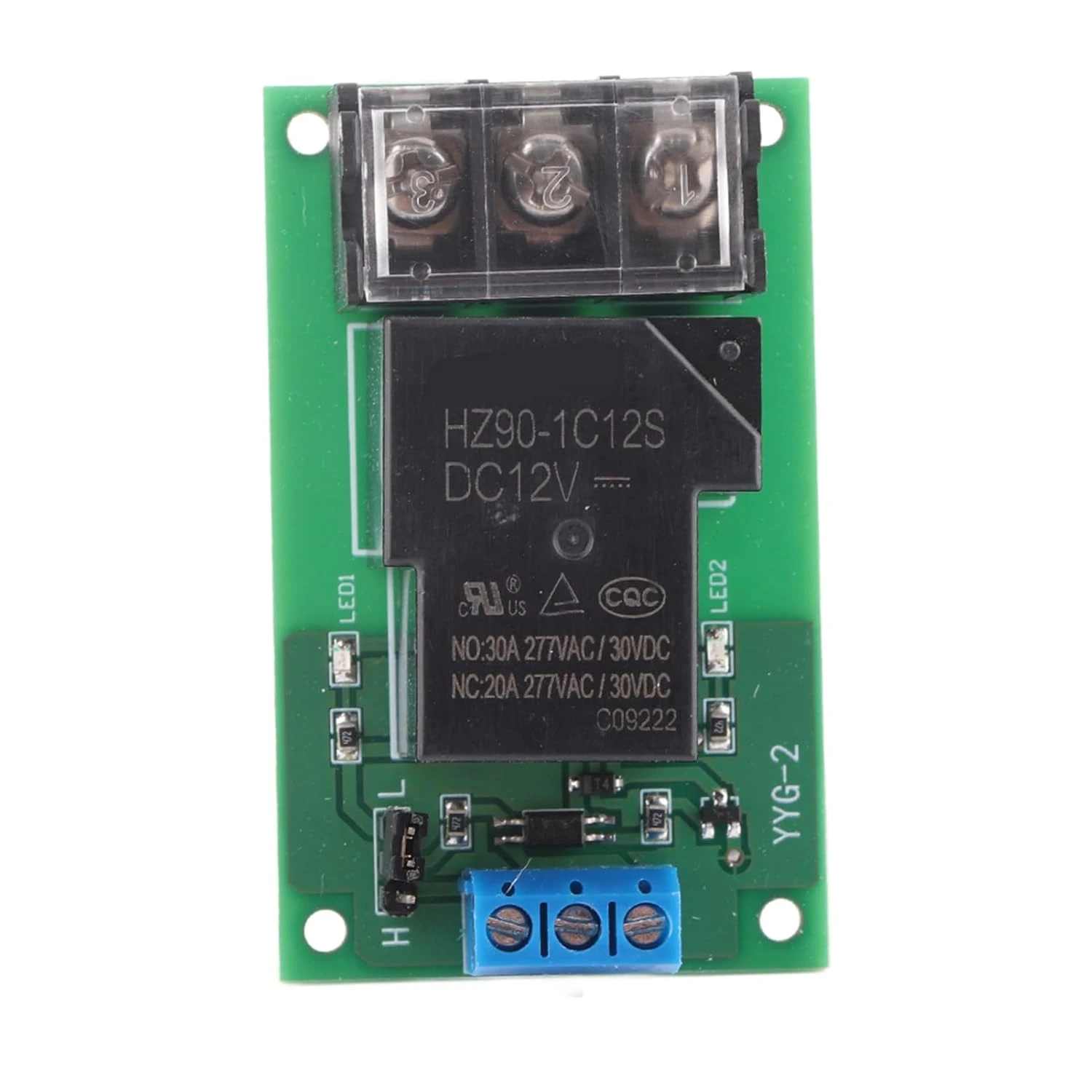

This is a 1 channel
relay module with load capacity of 250V/30A for AC and 30V/30A
for DC, making it suitable for handling a wide range of power inputs on its

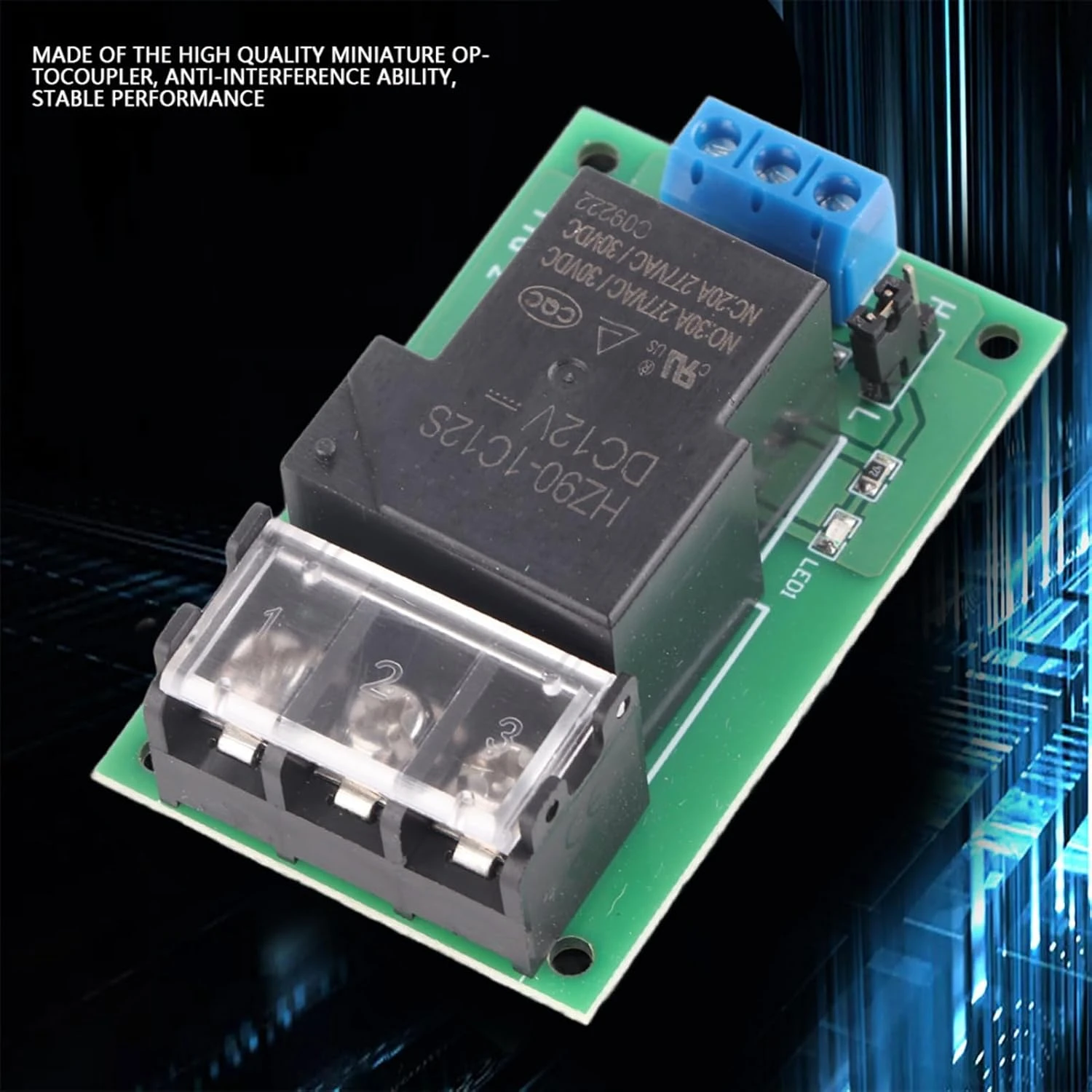

load terminal. It has an optocouplers isolation to ensure that there is no
electrical connection between the input terminal and the load control circuits,
thus protecting the relay module and the connected devices from damage.
The relay
module has a working voltage of 5V, offering compatibility with
wide range of input control devices. Also, each channel of the module can be
set to either high-level or low-level trigger mode using a jumper. This allows
you to customize the module's working to suit your specific application.
It includes a
fault-tolerant design, meaning that it will not activate the relay if the
control line is broken. This prevents accidental activation of relay. The

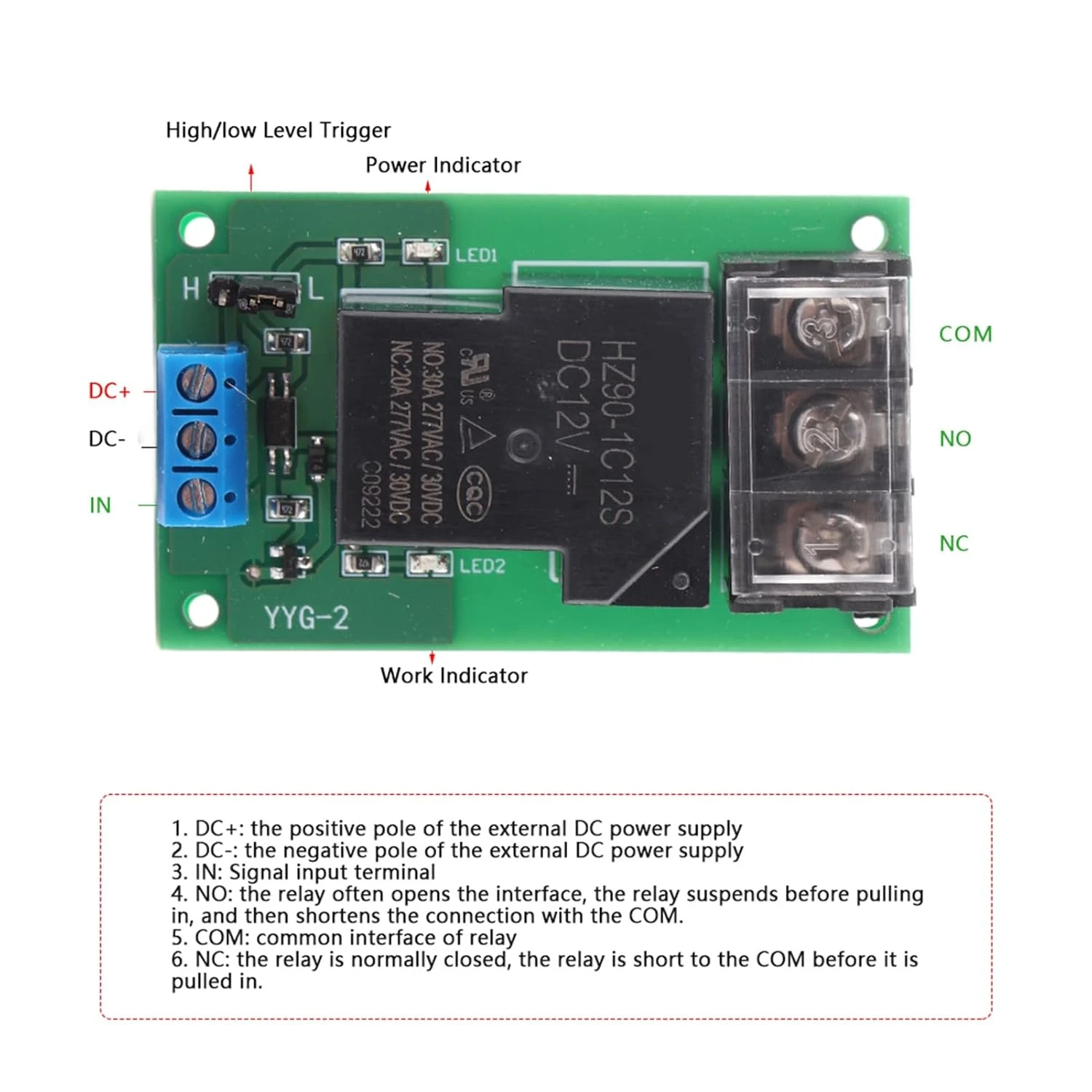

module is equipped with indicator lights: a green light shows power status,
while four red lights display the status of each relay.
Featrures & Specs
AC Load: AC 250V/30A
DC Load: DC 30V/30A
Optocoupler Isolation
Trigger Jumpers
LED Indicators
Terminal Blocks
