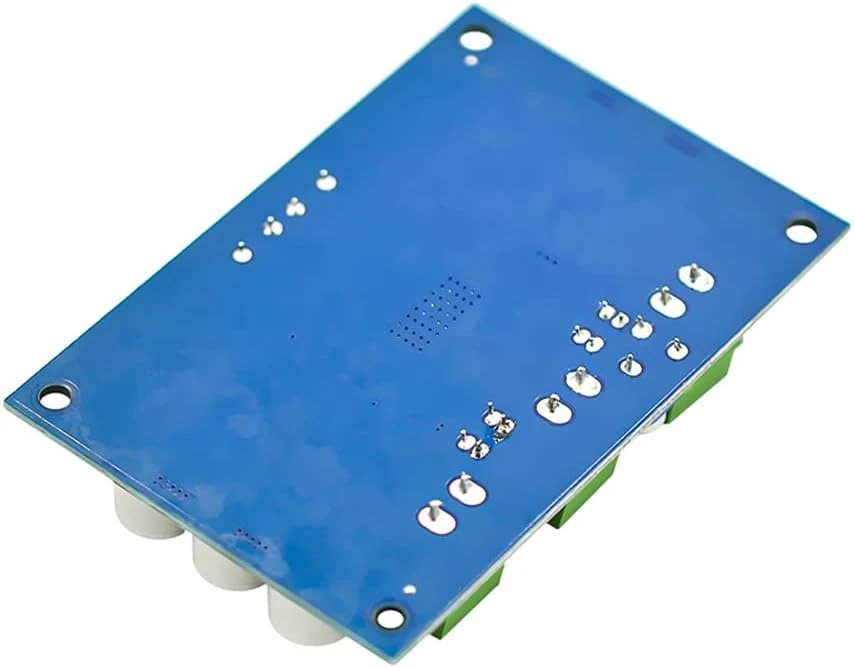

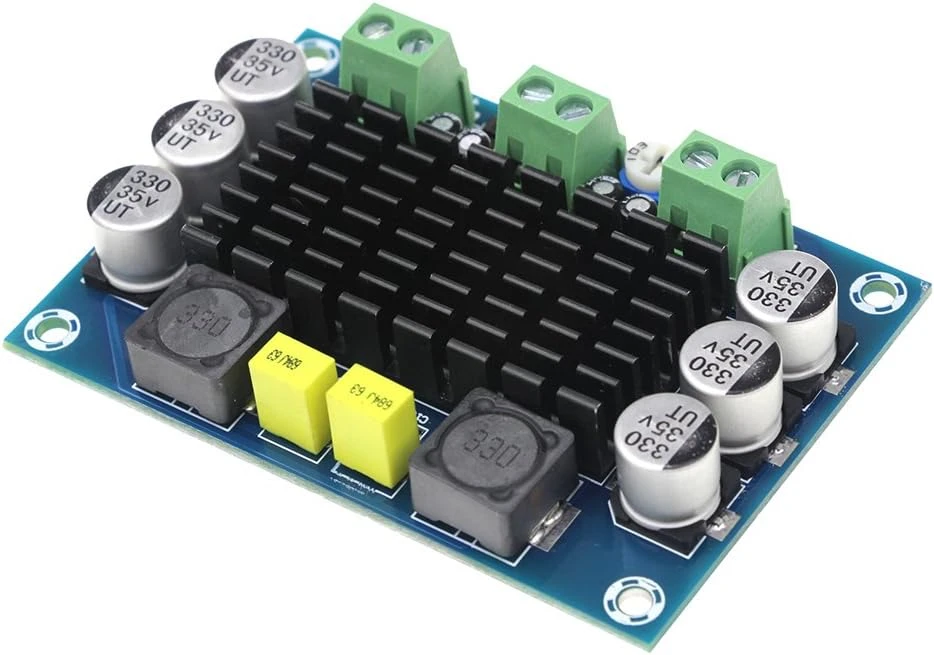

The XH-M542 TPA3116 100W Mono
Digital Power Amplifier is a high-performance, single-channel digital
audio amplifier board featuring the advanced TPA3116D2 chip. It is
designed to deliver 100W of output power with a signal-to-noise
ratio of 100dB, making it suitable for building robust audio systems. The
amplifier operates within a voltage range of 12V to 24V DC and
includes protection features such as overvoltage protection and output
current limit to ensure safe operation.
Specifications:
· Product: Digital Audio
Amplifier Board
· Model: XH-M542
· Chip type: TPA3116D2X1
· Input current: >3A
· Output power: max 100W
· Output impedance: 2-8Q
· Input impedance: 10KQ
· Signal to noise ratio:
100db
· Number of channels: Mono

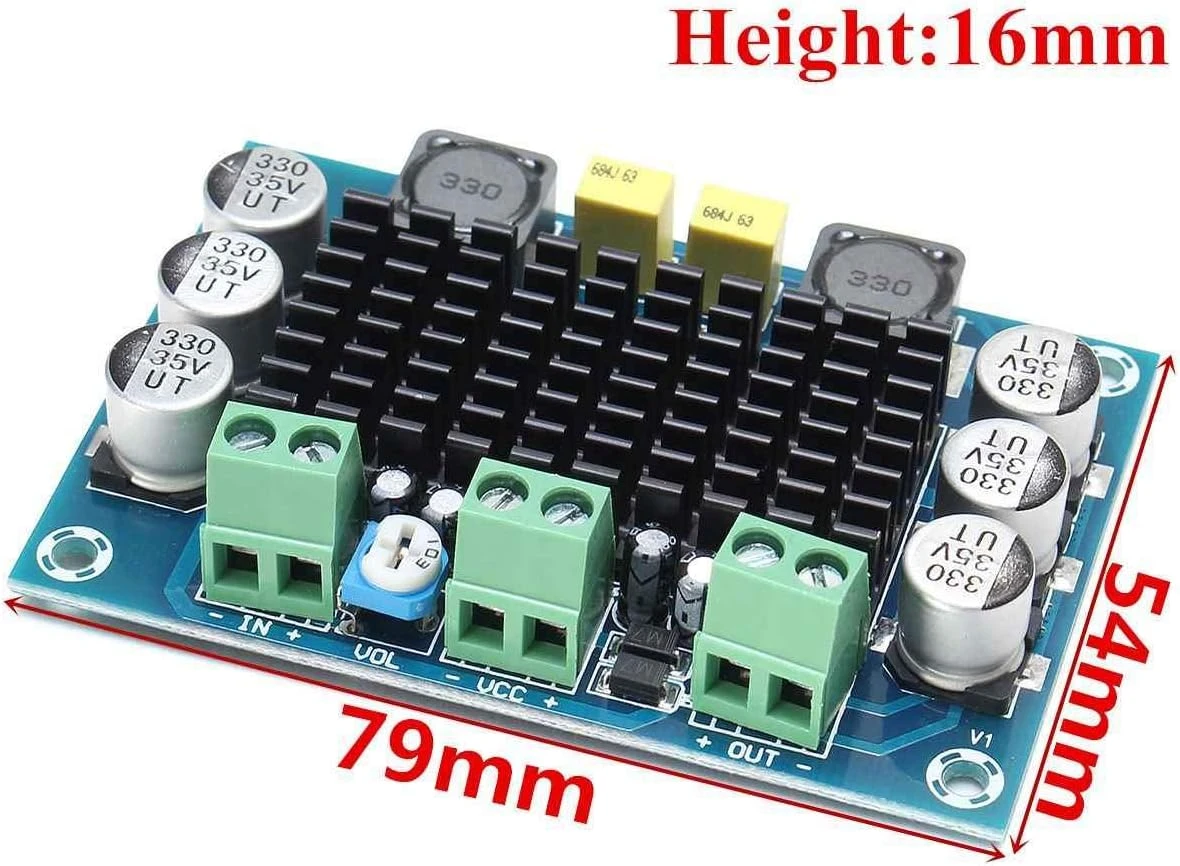

· Size: 79*54mm
· Input voltage: Recommended
DC 24V (Range 12-28V)
Package contents:
