This
power amplifier board adopts TI imported TPA3116D2 as the core, and the
official data single chip is 50W*2. Engineers read the data and combine their
own experience to develop 50W*2 dual core technology by bridge. The theory can
reach 100W*2 due to the chip. For the digital chip, the efficiency is extremely
high up to 90%, so it has the advantages of large power and small heat. The
power supply is recommended to be powered by a DC power supply of 12-24V100W or
more. This board is a finished board, ready to use, connected to the power
supply and speakers. Experience the new experience of pure digital music.
Specifications:
Β·
Product
Name: Digital Audio Power Amplifier Board
Β·
Model:
XH-M190
Β·
Input
voltage: DC12-24V
Β·
Input
current: >5A
Β·
Number
of channels: two channels
Β·
Magnification:
28 times
Β·
Output
power: 100W*2
Β·
Input
impedance: 1kΞ©
Β·
Output
matching: 2-8Ξ©
Β·
Appearance

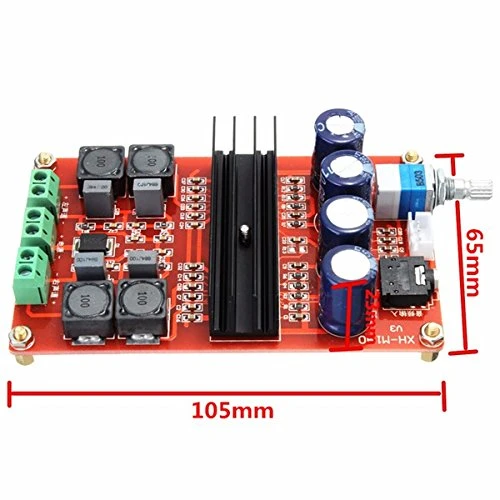

size: 99*64*24mm
Β·
Product
net weight: 160g
Package
List:
Β·
XH-M190
x1
