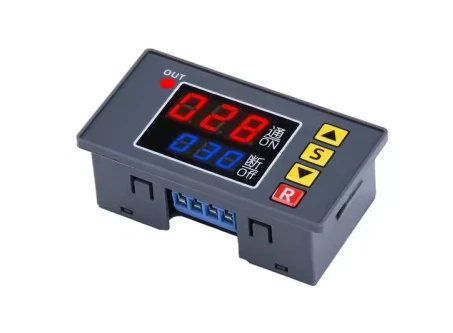

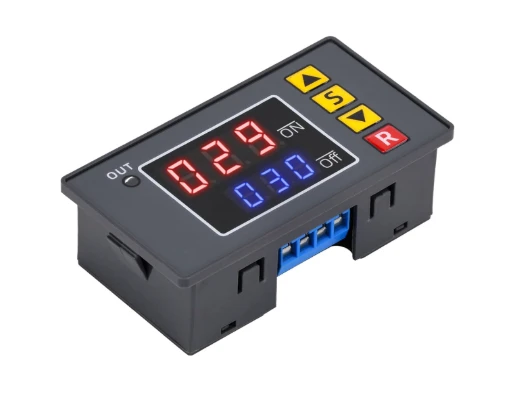

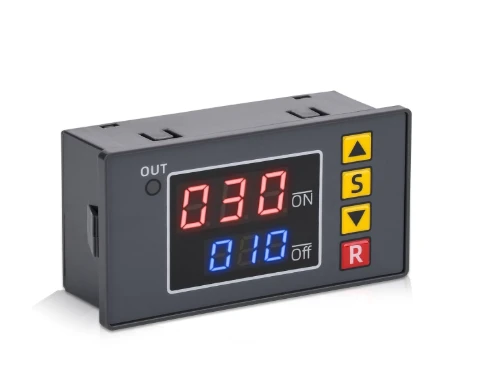

T3231 Programmable Time Control Controller Digital Time Delay 1-way Relay Switch Active Output Auto Manual Trigger Operation Reserve External Trigger Interface Direct output, stable output, input=output. 1 way normally open relay, support power-down save settings, power reset restart. T3231 programmable timer features accurate time control, clear display, multiple operating modes, flexible parameter setting, adjustable trigger mode, stable output, and easy installation. Support multiple working modes, including timed, cyclic, and periodic working modes to meet most of your needs. Support for on-off priority adjustment. Support for power-on automatic trigger operation, manual trigger operation, and external trigger operation. Reserves two external trigger interfaces, user needs to add their own trigger device, to facilitate user to perform more operations and achieve more control functions. Red and blue dual LED display module and operation buttons for easy setting of delay time and working mode. Embedded installation, 77 * 39.3mm mounting size, easy to install, suitable for a variety of application scenarios. Support power-on time and power-off time set. Support single delay on and off setting. Support infinite delay on/off setting, 1~999 adjustable cycles. seconds/minutes/hours.

T3231 programmable timer features accurate time control, clear display, multiple operating modes, flexible parameter setting, adjustable trigger mode, stable output, and easy installation. Embedded installation, 77 * 39.3mm mounting size, easy to install, suitable for a variety of application scenarios.

Specifications:

Infinite cycle: Support
Cycle switch: support
Name: Relay Switch
110-220VAC/1500W: 50g / 1.76ounce
Item weight:
Package size: 130 * 110 * 50mm / 5.12 * 4.33 * 1.97in
Delayed shutdown: Support
Working voltage: 12VDC/20A/240W, 110-220VAC/1500W, 110-220VAC/2200W (optional)
Product weight: DC12V: 45g; AC1500W: 50g; AC2200W: 55g
12VDC/20A/240W: 45g / 1.59ounce
Trigger mode: Auto trigger (default)/Manual trigger
Limit cycle: 1-999 adjustable cycles
Item size: 79.5 * 42.1 * 27.8mm / 3.13 * 1.66 * 1.09in
110-220VAC/2200W: 55g / 1.94ounce
Installation size: 77 * 39.3mm / 3.03 * 1.55in
Material: plastics
Packing List:
1 * Relay Switch
