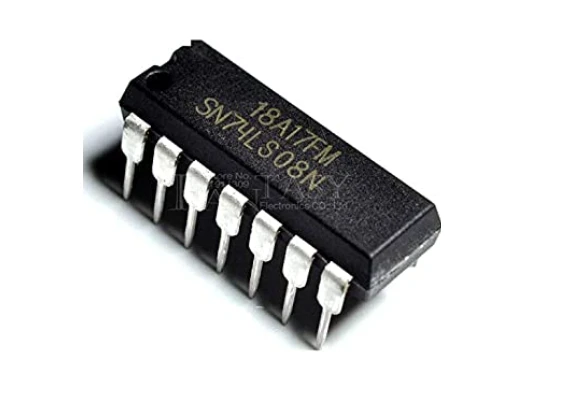

SN74LS08 AND gate
(0) 0 Reviews 0 Orders 0 Wish listed
UGX2,000.00
Quantity :
Total price :
  (Tax : )
Out of stock

The 74ls08 quad 2 input and gates contains four independent gates each of which performs the logic AND function. 74ls08 quad 2 input and gate IC can be soldered directly to the circuit board or can be mounted on a 14 pin IC base. The 74ls08 quad 2 input and gates circuit is designed such that the AND operation of the input pins 1 &2 , 4&5, 9&10, 12,13 are produced on the pin 3 , 6, 8 & 11 respectively. Operating supply voltages to the IC can vary between 4.75V to 5V and to a maximum of 5.25V and the input logic levels to the device in ‘0’(LOW) state is max. 0.8V and for ‘1’(HIGH) state is min 2V.

Features:

  • Absolute Maximum Ratings:
  • Supply Voltage: 7V
  • Input Voltage: 5.5V
  • Operating Free Air Temperature: 0oC to +70oC
  • Storage Temperature Range: -65oC to +150oC
