Ethernet /LAN Controlled 8 Channel Relay Module (RJ45-RLY16, Up to 16Amp)

(0) 0 Reviews 0 Orders 0 Wish listed

UGX425,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

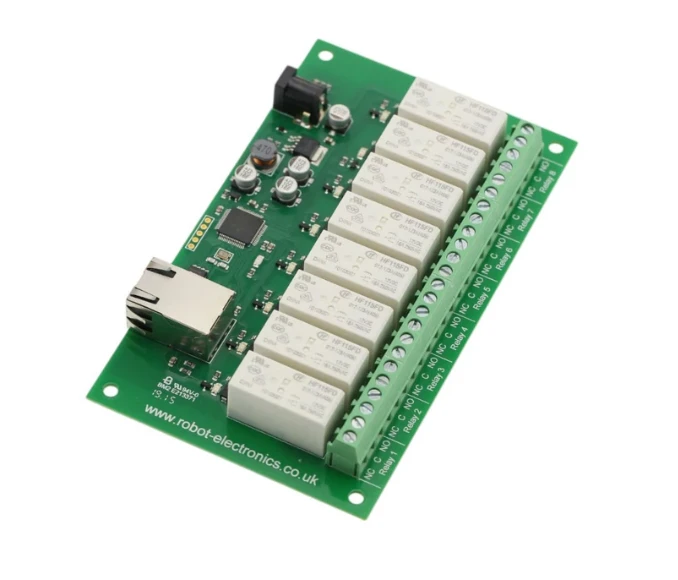

The ETH008-B provides eight volt free contact relay outputs with a current rating of up to 16Am. The module is powered from a 12vdc supply which can be regulated or unregulated. The DC input jack is 2.1mm with positive core polarity, DC supplies are required to supply at least 500mA at 12vdc. The relays are SPCO (Single Pole Change Over) types.

The normally open, normally closed and common pins are all available on the screw terminals.

The ETH008-B provides a red LED mounted immediately next to each relay to indicate whether it is in a powered state (LED on), there is also two LED's mounted in the Ethernet connector which will flash with Ethernet traffic. Finally there is a green power LED just above the processor.

Features:

· Controlled over Ethernet using simple TCP/IP commands.

· Relays - 8

· Power - 12V DC adaptor, supplied separately.

· Configuration & Test interface - HTTP (webpage).

· Control interface - TCP/IP over Ethernet.

· Relay current - Up to 16Amp @24vdc or 250vac

· Connections - Screw Terminals for N/O N/C and Common contacts.

· Free Android and iPhone Apps are available to remotely control this module.

· Please note additional options such as power supply, case and cables are available separately.

Specifications:

· Power Supply: 12V@1A
