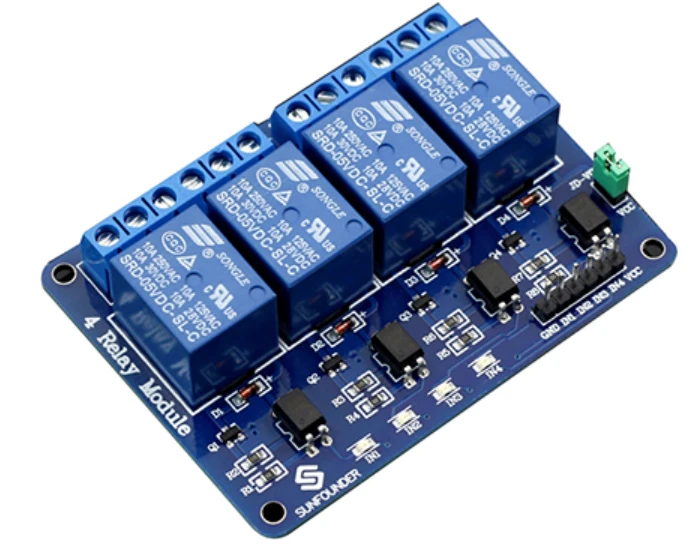

4-Channel 3-5V Relay Module With Opto Isolated Input

(0) 0 Reviews 2 Orders 2 Wish listed

UGX30,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

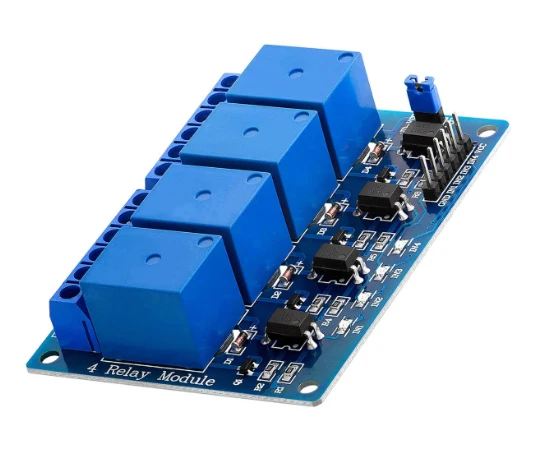

This 4-relay module consists of four LEDs, four resistors, four NPN transistors, four diodes and four relays capable of handling up to 5A 50V AC.

The relays are large in size, yet compactly sized to allow for continuous operation even under adverse operating conditions. With the help of an additional transistor, the module can be quickly and easily switched with various low-current microcontrollers.

The optocouplers and diodes protect your controller from damage. The source of the power supply can be configured with a jumper located on the board.

Specifications:

Size: 75mm (Length) * 55mm (Width) * 19.3mm (Height)
Weight: 61g
PCB Color: Blue

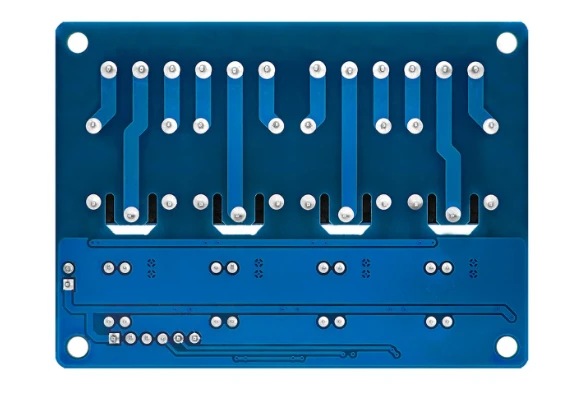

There are four fixed screw holes at each corner of the board, easy for install and fix. The diameter of the hole is 3.1mm
High quality Songle relay is used with single pole double throw, a common terminal, a normally open terminal, and a normally closed terminal
Optical coupling isolation, good anti-interference.
Closed at low level with indicator on, released at high level with indicator off

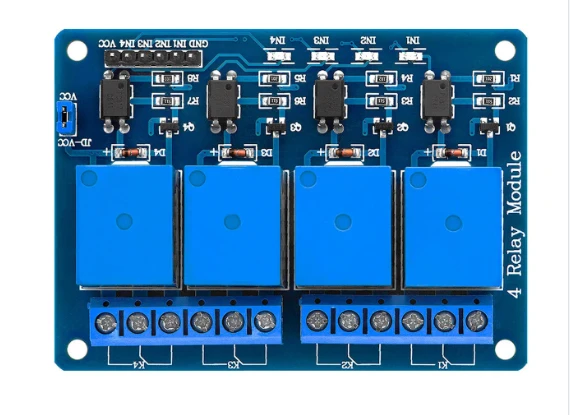

VCC is system power source, and JD_VCC is relay power source. Ship 5V relay by default. Plug jumper cap to use
The maximum output of the relay: DC 30V/10A, AC 250V/10A
