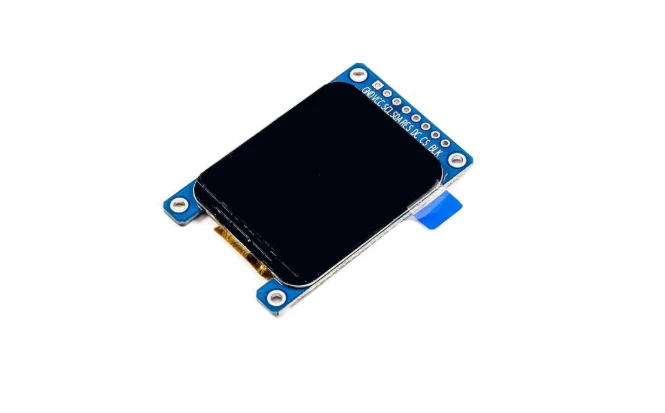

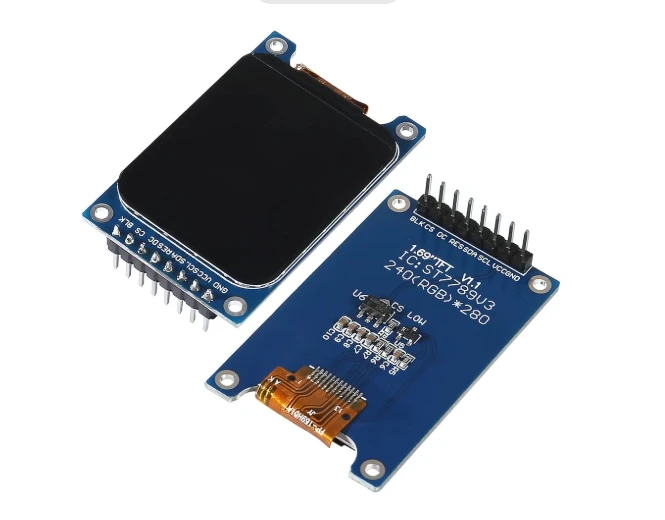

This is a 280 X 280 pixels TFT display module, with a
1.69inch display size making it a great fit for small size projects like
wearable IoT or any other portable devices. The display’s driver IC is ST7789,
which you can find many libraries to quickly start with.
Specifications:
· Size
1.69 "IPS color LCD
· Resolution:
240 (H) RGB x280 (V)
· Interface
type: 8bit 8080 MCU interface
· Control
chip: ST7789V2
· The
highlight of this screen is high definition IPS, and the display direction can
be adjusted.
· Display
color: color
· Display
area 27.972 (H) x 32.634 (V)
· Panel
size 30.07 (H) x37.43 (V) x1.56 (d)
· Pixel
spacing 0.11655 (H) x 0.11655 (V)
· Pin
number: 18pin (welded 18pin, 0.7mm spacing)
· Perspective
direction: full perspective
· Working
temperature - 20 ~ 70 ℃
· Logic
voltage 3.3V
· Backlight
type: 3 white LED parallel
· Brightness
480 (typ) CD / m2
Resources:
1. Adafruit ST7789 and ST7735 Library
2. Adafruit’s GFX library (necessary library)
3. Interfacing STM32 Blue Pill
Board with ST7789 TFT Display
4. Working with STM32F4 and
SPI-TFT: ST7789 IPS 240×240 LCD
5. Raspberry Pi, STM32, Arduino examples.
