ZP07
air-quality module adopts flat surface semiconductor gas sensor. The module has
good sensitivity to volatile organic gases such as formaldehyde, benzene,
carbon monoxide, ammonia, hydrogen, alcohol, and smoke of cigarette, essence
&, etc. The module has a good consistency and high sensitivity after aging,
debugged, adjusted, and calibrated
Specifications:
Β· Product model: ZP07 Air Quality Module
Β· Detection gas: formaldehyde, benzene,
carbon monoxide, hydrogen, alcohol, ammonia, cigarette smoke, flavor, etc.
Β· Physical interface: XH2.54-4P terminal
socket
Β· Output data: 0 ο½ 10 pollution signal
Β· Working voltage: 5.0 Β± 0.2V DC (no
voltage reverse connection protection)
Β· Output data type: TTL level signal
(built-in 200Ξ© protection resistance)
Β· Working current: β€60mA
Β· Warm-up time: β€3 minutes
Β· Response time: β€20 seconds
Β· Recovery time: β€60 seconds
Β· Working temperature: 0 ο½ 50 β
Β· Working humidity: β€95% RH
Β· Storage temperature: οΌ20 ο½
60 β
Β· Storage humidity: β€60% RH

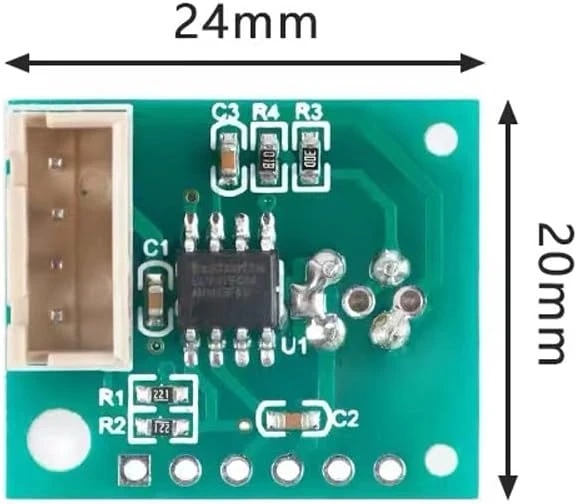

Β· Dimensions: 24 Γ 20 Γ 16mm (L Γ W Γ H)
Package
Contents:
1x ZP07 Air Quality
Module
