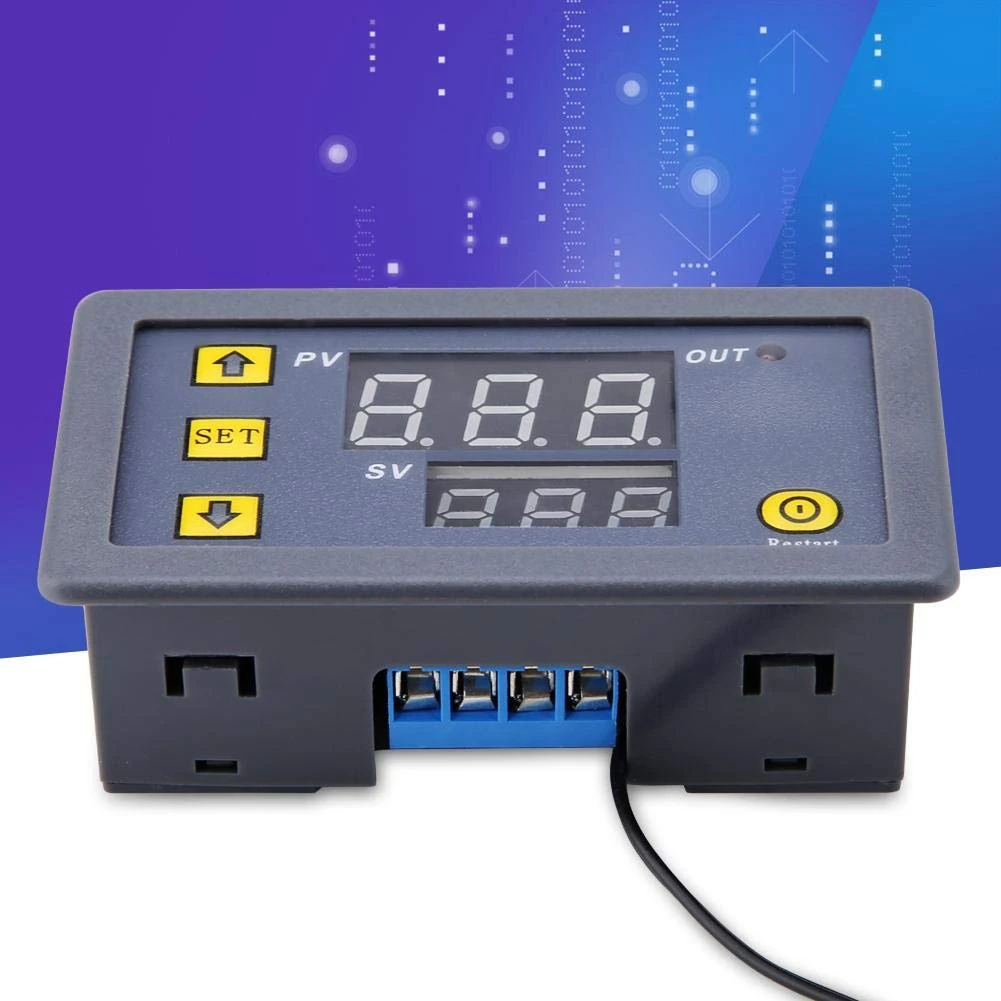

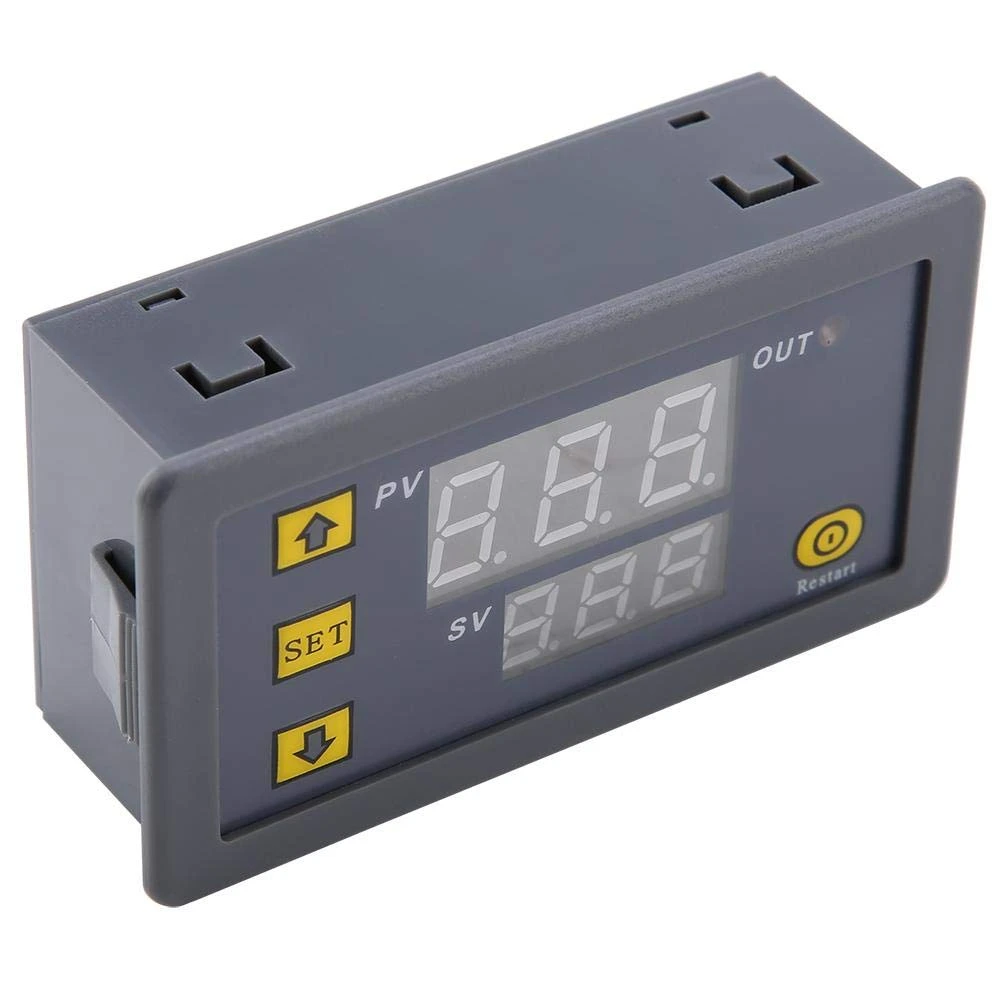

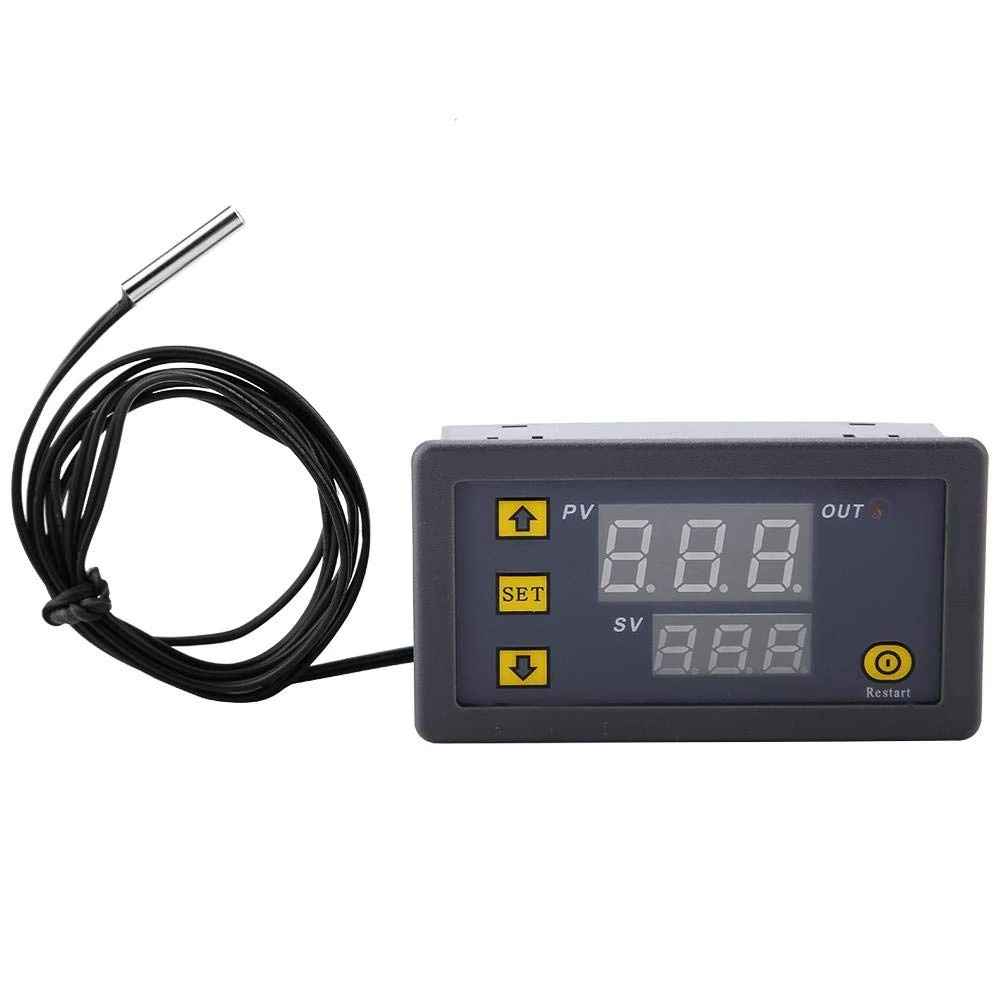

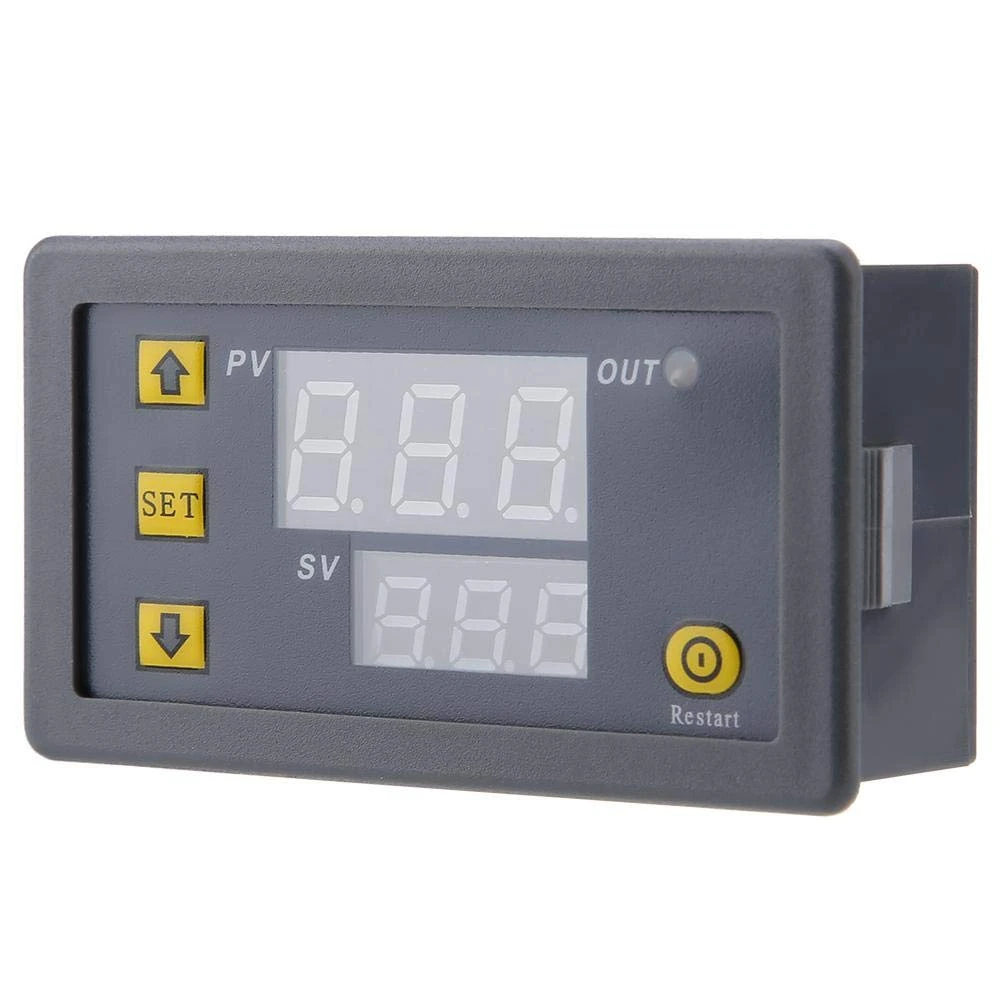

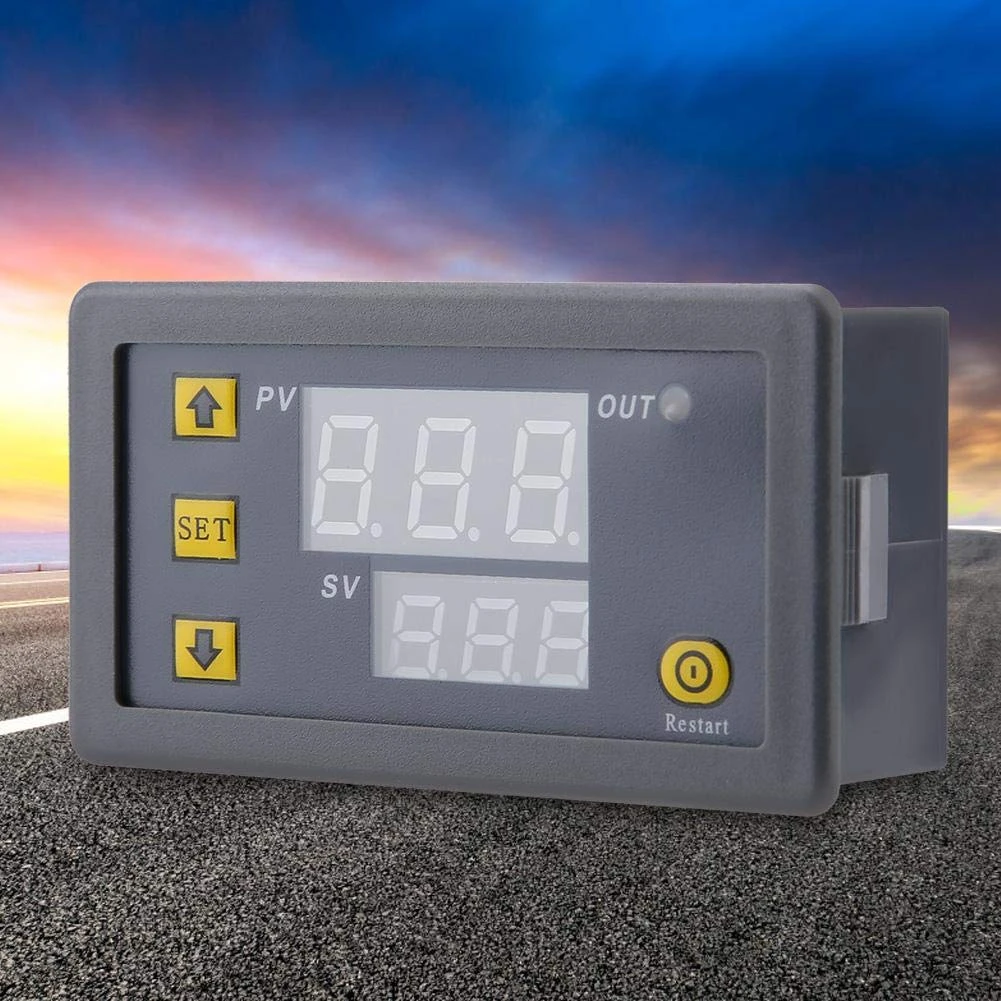

This W3230 AC110-220V Digital Temperature
Controller Microcomputer Thermostat Switch features an NTC 10K waterproof
temperature sensor. When the temperature of the object reaches a certain set
temperature at that time the microcomputer switches on the relay, in turn
switching on the device connected to the output terminals.
Features/Specs:
· Model:
W3230
· Display
Type: Digital
· Operating
Voltage: 110 ~ 220VAC
· Output
Relay Contact Capacity: 10A@220V/20A@12V/20A@24V
· Temperature
Control Range: -55 ~ 120°C
· Display
Color: Red/Blue
· Resolution
Ratio: 0.1°C(-9.9-99.9)
· Control
Accuracy: 0.1°C
· Measurement
Accuracy: ±0.1°C
· Temperature
Sensor: NTC10K Waterproof sensor
· Working
Temperature Range: -10 ~ 60°C
· Working
Humidity Range: 20% ~ 85%
· Senor
Wire Length: 1 Meter
· Length:
71 mm
· Width:
39 mm
· Height:
26 mm
· Approx
Weight: 50 gm
Applications:
· Outdoor
use uses involving potential chemical contamination or electrical interference
· Nuclear
energy control systems, combustion systems, railroad systems, aviation systems
· Medical
equipment, amusement machines, vehicles, safety equipment, and installations
subject to separate industry or government regulations
· Systems,
machines, and equipment that could present a risk to life or property
· Domestic
freezer, water tanks, refrigerator, industrial chiller, steamer, industrial
equipment, and another temperature-controlled system
Package
Includes:
1
x W3230 110-220VAC Digital Temperature Controller Microcomputer Thermostat
Switch
Note:
Product Images are shown for illustrative purposes only and may differ from the
actual product.
