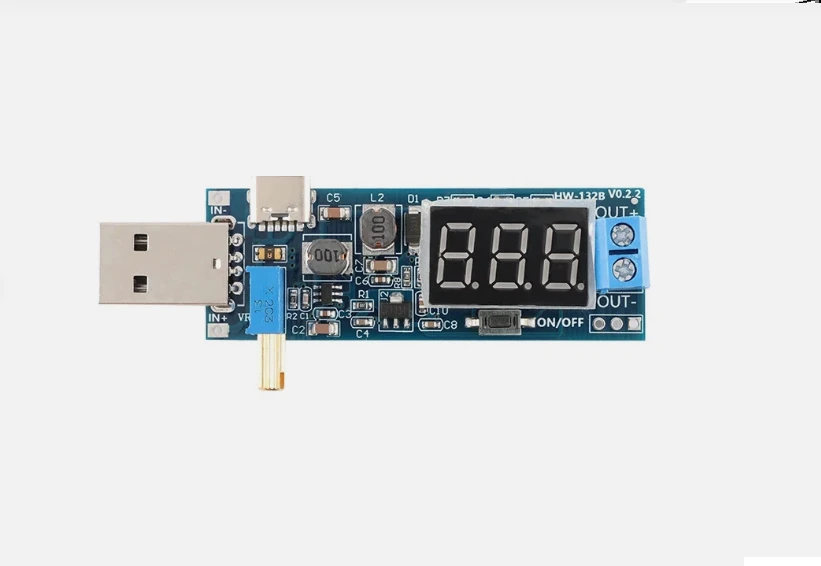

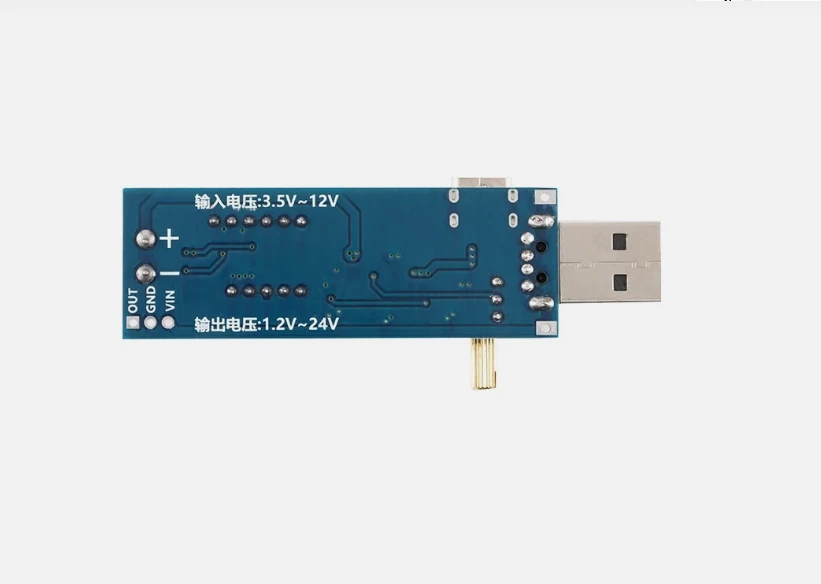

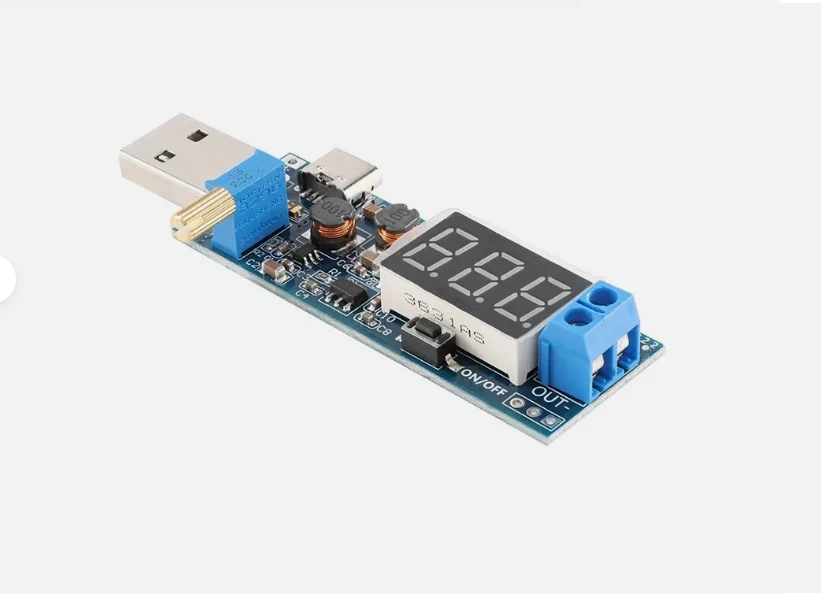

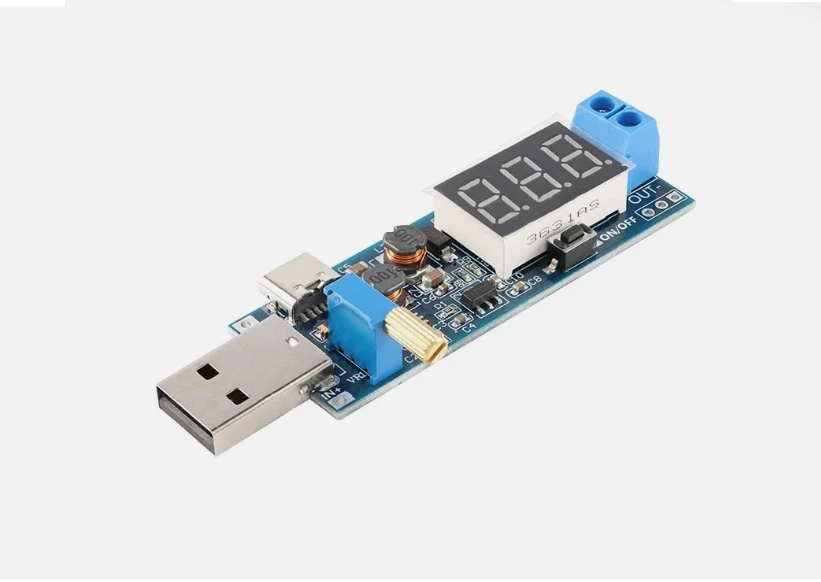

This power supply is very
convenient to use. You can output 1.2V to 24V adjustable voltage and 3W power
as long as you plug in USB-A. It is very suitable for technical engineers to
develop, debug and repair instruments. After-sales engineers are on business to
supply power to instruments and meters. It is very convenient.
Features:
· Easy to use, plug in USB-A to output 1.2V-24V
adjustable voltage.
· Turn off output with one key.
· Digital tube can be turned off.
· Using multi-loop precise adjustable potentiometer
to regulate
· Power-off storage before power-off.
· One button to turn off the output;
· Supply ON/OFF display screen;
· Support low power mode;
· Support sleep mode;
· Support both standard USB and USB-C and pads input
voltage;
· Potentiometer with rotating handle.
Specification:
· Input
voltage: 3.5V-12V
· Output
voltage: 1.2-24V
· Output
Voltage 1.2V-2V, Used within 2W
· Output
Voltage 2V-20V, Used within 3W
· Output
Voltage 20V-24V, Used within 2.5W
· Output
power = output voltage x output current
· Product
size: 80mm*20mm*10mm/3.14*0.78*0.39”
· Weight:
15g
Note: This
product is not a high power supply, please use it in the power range.
Package Included:
· 1 x DC-DC Step Down Step Up HW-132 Buck Boost
Adjustable DC 3.5-12V To 1.2-24V Power Supply Voltage Regulator 5V to 3.3V 9V
12V 18V 24V
