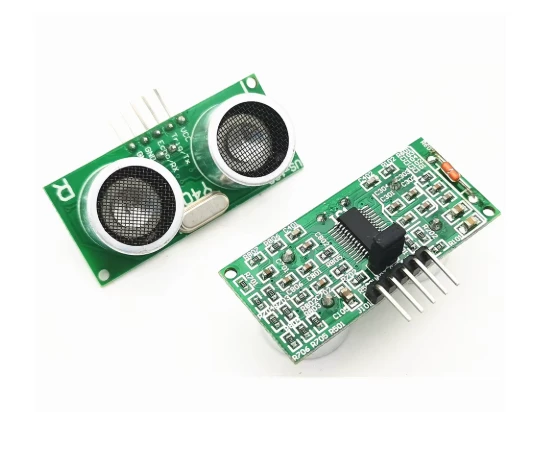

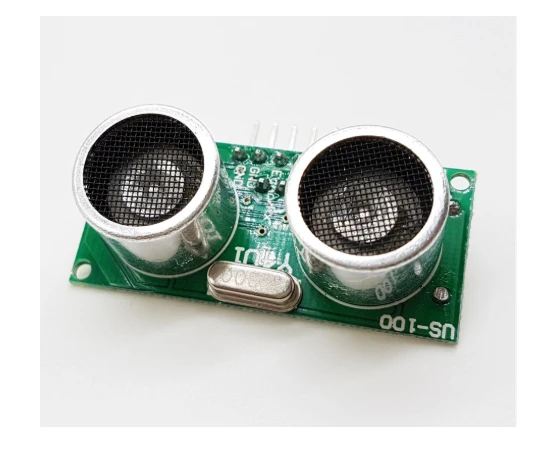

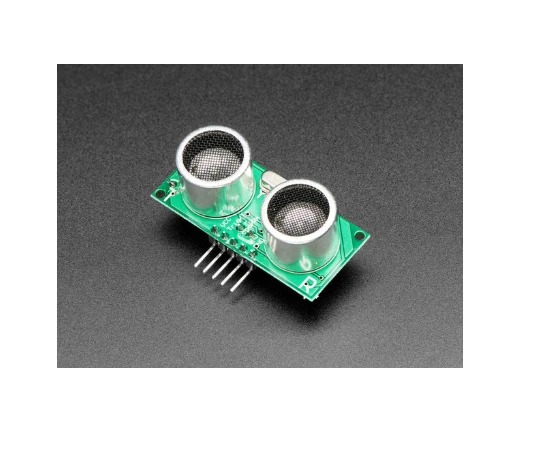

US-100 ultrasonic sensor module with Temperature Compensation

(0) 0 Reviews 1 Orders 1 Wish listed

UGX25,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

US-100 ultrasonic sensor module is a compact, high-quality module for distance measurement. It can detect objects, obstacles, and walls up to a distance of 2cm to 450cm range. It is ideal for mobile robot applications.

There is a built-in temperature sensor on the US-100 for accurate ranging even at varying ambient temperatures. This sensor can also work in UART mode (band rate 9600) or GPIO mode, which makes it more convenient when making your applications.

This US-100 ultrasonic module can realize 2 ~ 450cm of non-contact ranging function, has 2.4 ~ 5.5 V of wide voltage input range, static power consumption is less than 2mA. Their own temperature sensor will revise the ranging and has many communication modes like GPIO, serial ports etc, just like watchdog inside, very stable and reliable.

Features:

· Power & Logic Voltage: DC 2.4V~5.5V

· Current: 2mA

· Operating Temperature: -20~ + 70º

· Measuring Angle: Less than 15º

· Detection Distance: 2cm – 450 cm

· Accuracy: 0.3cm +1%

· Sensor dimensions (excluding header): 45 x 20mm

· Weight: 9g

Included in package:

1x US-100 ultrasonic sensor module
