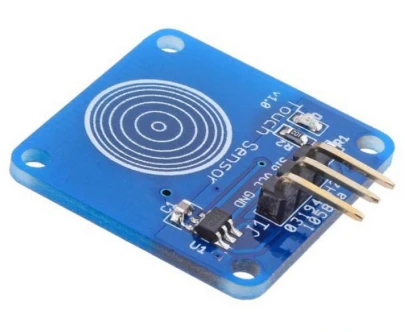

TTP223B Capacitive Touch Key Sensor Module is based on a touch-sensing IC capacitive touch switch module. It allows you to remove the worry of conventional push-type keys.

Digital Capacitive Touch Switch Module is based on TTP223B. Normally, it outputs low and keeps at a low power state. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to a low power state again.

In addition to the thin paper (non-metallic) covering the surface of the module, as long as the correct location of the touch, you can make it hidden in the walls, desktops, and other parts of buttons.

Specification:

Operating voltage: DC 2.0V ~ 5.5V

VOH: VCC 0.8V

VOL: VCC 0.3V

Sink current: 8mA @ VCC = 3V, VOL = 0.6V

Source current: -4mA @ VCC = 3V, VOH = 2.4V

Response time: 220ms (at mode of low power consumption) and 60ms (at quick speed mode)

Size: 24 x 24 x 7.2mm

Package included:

1 x TTP223B Digital Touch Sensor Module
