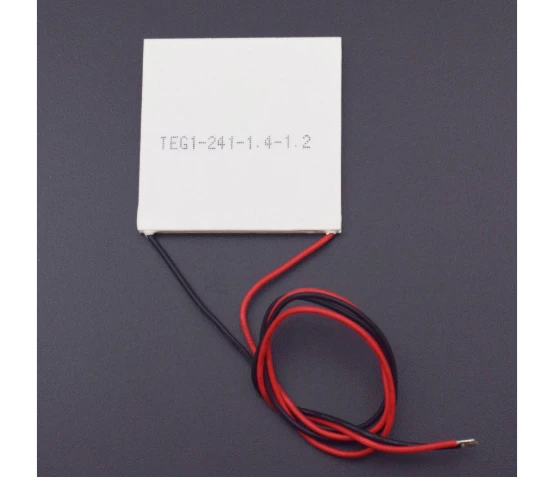

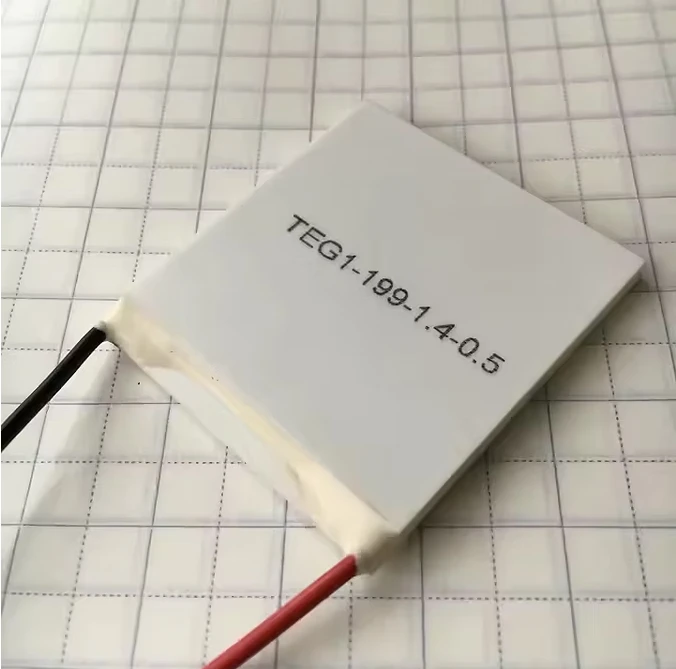

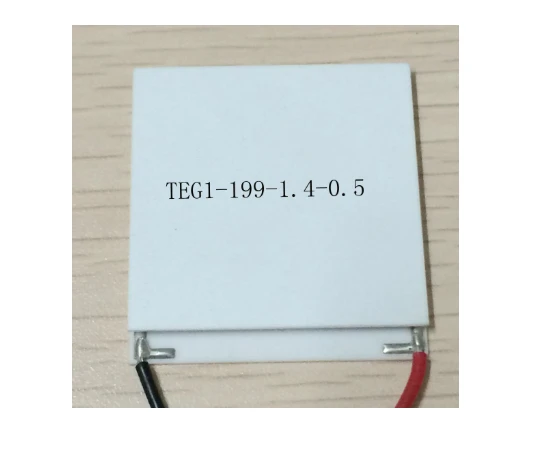

Peltier generator modules
are very interesting devices β these generate a voltage when there is a
temperature difference between each side of the module. With these modules, the
heat of your hand is enough to generate a small voltage. As you increase the
temperature difference between the two sides, the voltage generated increases.
This module will generate approximately 0.97V and 225mA with a 20Β°C difference
and up to 4.8V and 669mA with a 100Β°C temperature difference. The module can
withstand -60 to 125Β°C and measures 40 x 40 x 3.4mm. To keep generating a
voltage, the temperature difference between each side will need to be
maintained.
Features
Β· Maximum
current of 0.669mA @ 100Β°C difference
Β· Open circuit voltage: 11.1 volts
Β· Matched load resistance: 3.07 ohms
Β· Matched load output voltage: 5.6 volts
Β· Output current: 1.8 amperes
Β· Output power: 10 watts
Β· Heat flow through the module: about 192 watts
Β· Heat flux: about 12.0 watts/cm2
Β· Temperature
Range: -60Β°C to 125Β°C
Β· Temperature
electromotive force (a): > 190x uV/ β
Β· Wire
Length: ~30cm / 12Λ
Β· Maximum
voltage of 4.8V @ 100Β°C difference
Β· Optimum
value (Z): 2.5 ~ 3x10-3W/β
Β· Thermal
conductivity (K): 15~16x10-3-W/β cm
Β· Dimensions:
40 x 40 x 3.4mm
Included
in package:
1x Peltier generator module
