The TB6612FNG Motor
Driver can control up to two DC motors at a constant current of 1.2A (3.2A
peak). Two input signals (IN1 and IN2) can be used to control the motor in one
of four function modes: CW, CCW, short-brake and stop. The two motor outputs (A
and B) can be separately controlled, and the speed of each motor is controlled
via a PWM input signal with a frequency up to 100kHz. The STBY pin should be
pulled high to take the motor out of standby mode.
Logic
supply voltage (VCC) can be in the range of 2.7--5.5VDC, while the motor supply
(VM) is limited to a maximum voltage of 15VDC. The output current is rated up
to 1.2A per channel (or up to 3.2A for a short, single pulse).

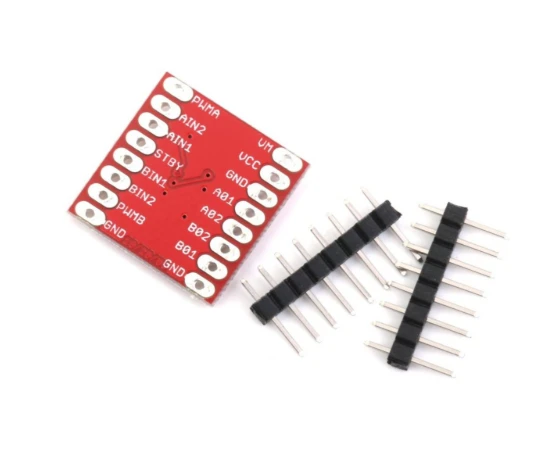

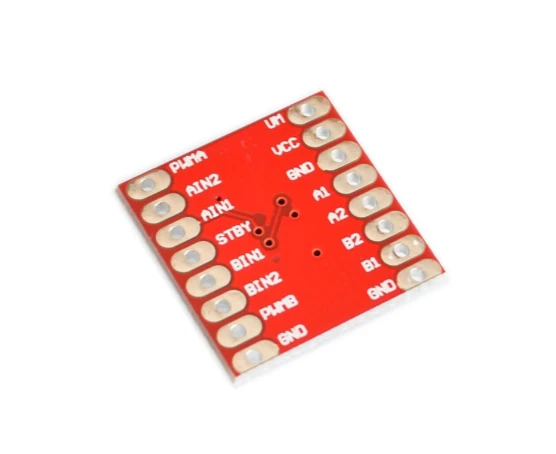

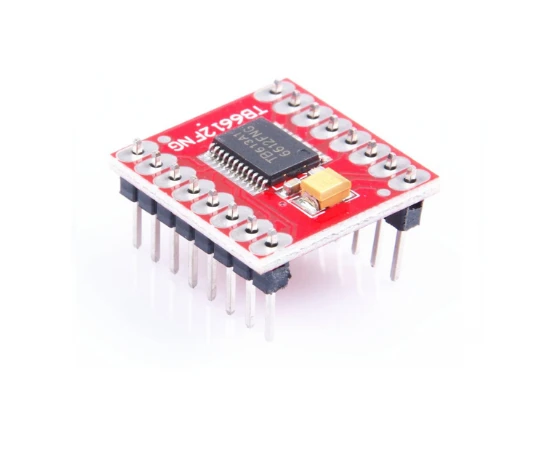

This
little board comes with all components installed as shown. Decoupling capacitors
are included on both supply lines. All pins of the TB6612FNG are broken out to
two 0.1" pitch headers; the pins are arranged such that input pins are on
one side and output pins are on the other.
Features
:
Package Includes:
1xTB6612FNG
Motor Driver HBridge Module 1A for DC Motor
