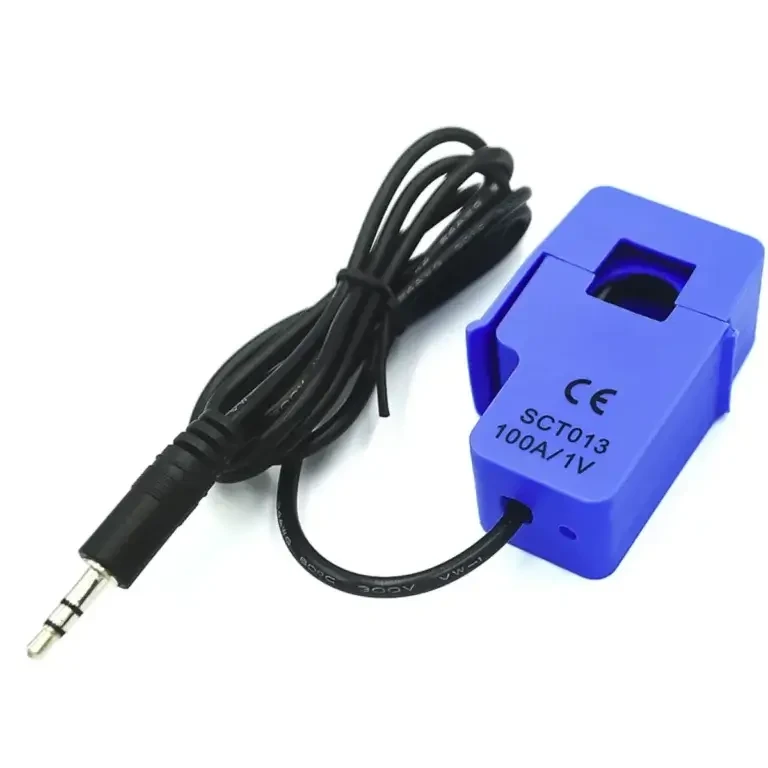

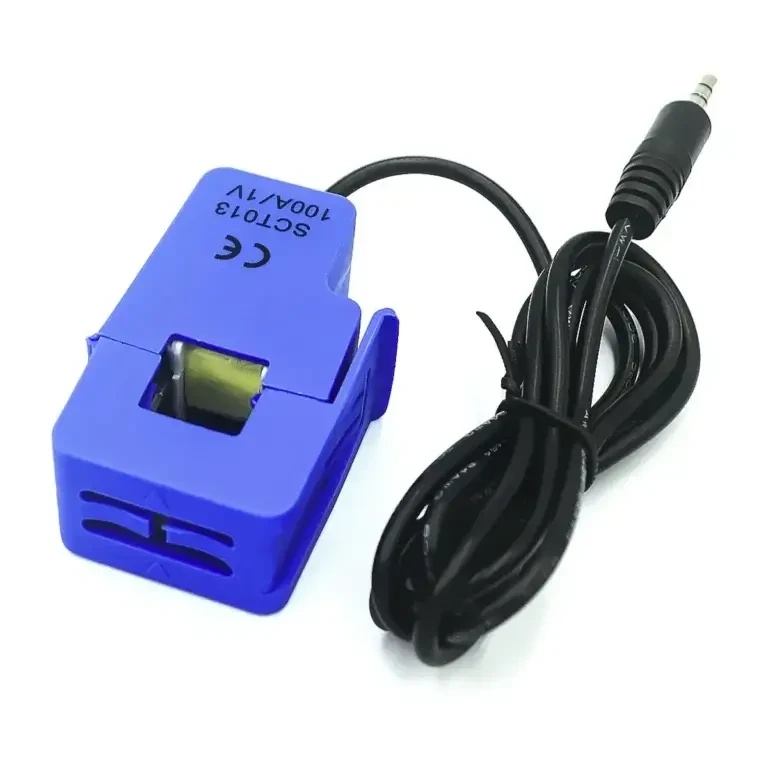

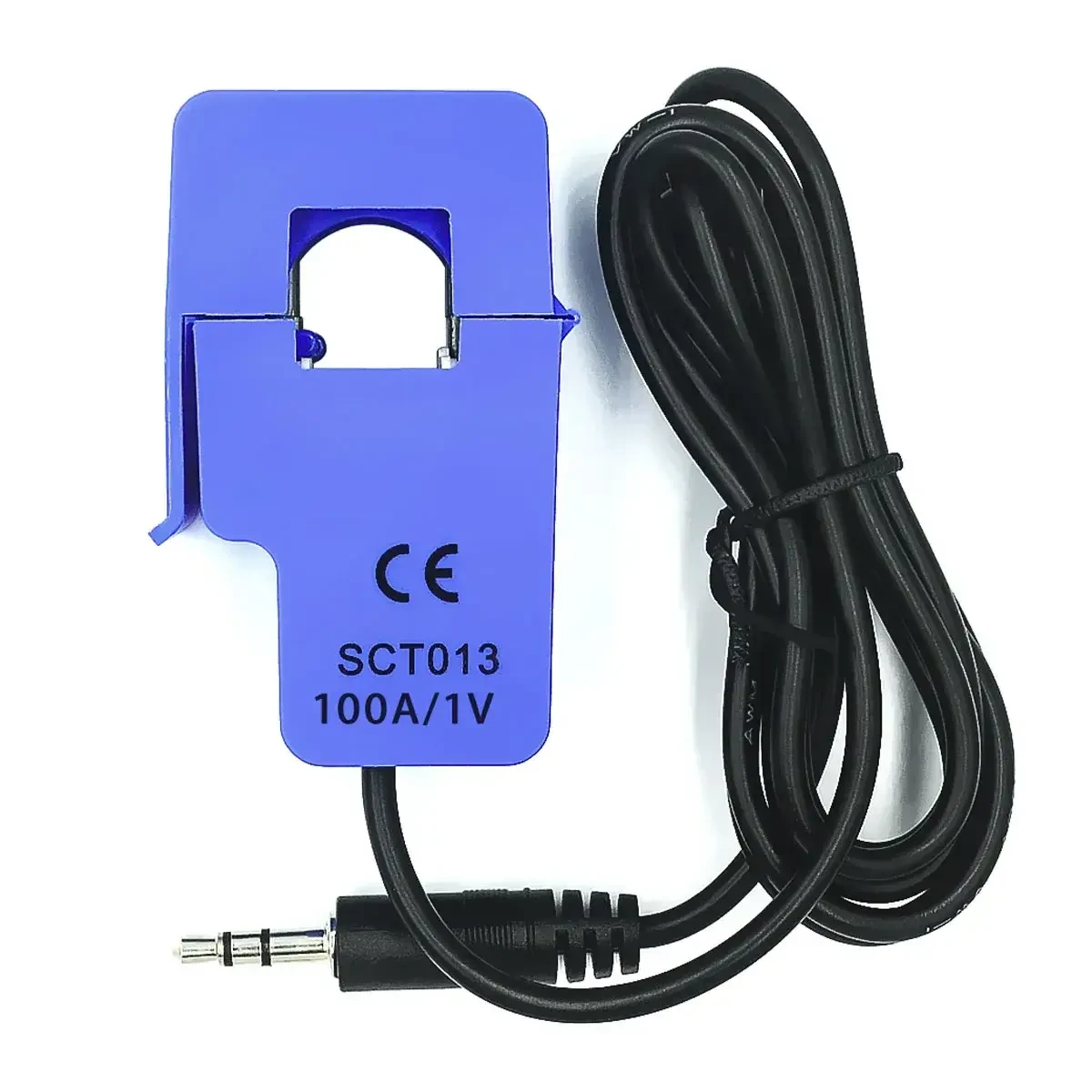

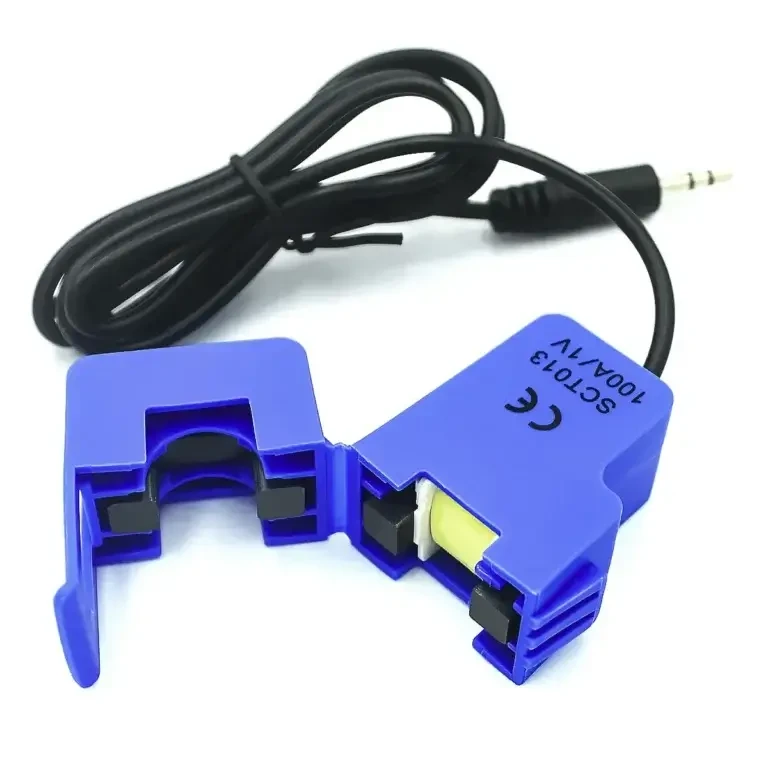

The
SCT-013 100A is an AC current transformer designed for measuring alternating
current up to 100A. Its split-core design allows for easy installation around
existing conductors, making it particularly suitable for DIY projects. It is
compatible with microcontrollers such as Arduino and Raspberry Pi, making it
ideal for energy monitoring, over-current protection, and various electrical
measurement applications.
SCT-013-000
(100A / 1V) β Voltage Output Variant:
This
variant includes a built-in internal sampling (burden) resistor across its
secondary winding.
Burden
Resistor: Already
built-in. When 100A AC passes through the clamp, the internal resistor drops
the voltage so that exactly 1V AC (RMS) is present at the audio jack plug.
Convenience: Easier to wire up because you don't
need to calculate or solder an external burden resistor. You only need a basic
voltage divider circuit to bias the signal for your microcontroller's ADC.
Safety: Intrinsically safer. Because the
internal burden resistor is always connected, it will never build up dangerous
open-circuit high voltages.
Specifications:
Β·
Model: SCT-013-000
Β·
Core Material: Ferrite
Β·
Input Current: 100a AC
Β·
Leading Wire in Length: 1.5m
Β·
Opening Size: 0.51 * 0.51inch / 13 x 13mm
Β·
Turns Ratio: 1: 1800
Β·
Resistance Grade: Grade B
Β·
Max Sampling Resistance: 10 Ξ©
Β·
Linearity: Β±3%
Β·
Accuracy: Β±1%
Β·
Work Frequency: 50-1 KHz
Β·
Work Temperature: -25ΛC ~ 70ΛC
Β·
Reference project: Open Energy Monitor
Β·
Dielectric Strength: 6000V AC/1min
Package
Contents:
1 x SCT-013-000
(100A / 1V) Non-invasive
AC Current Sensor
