The

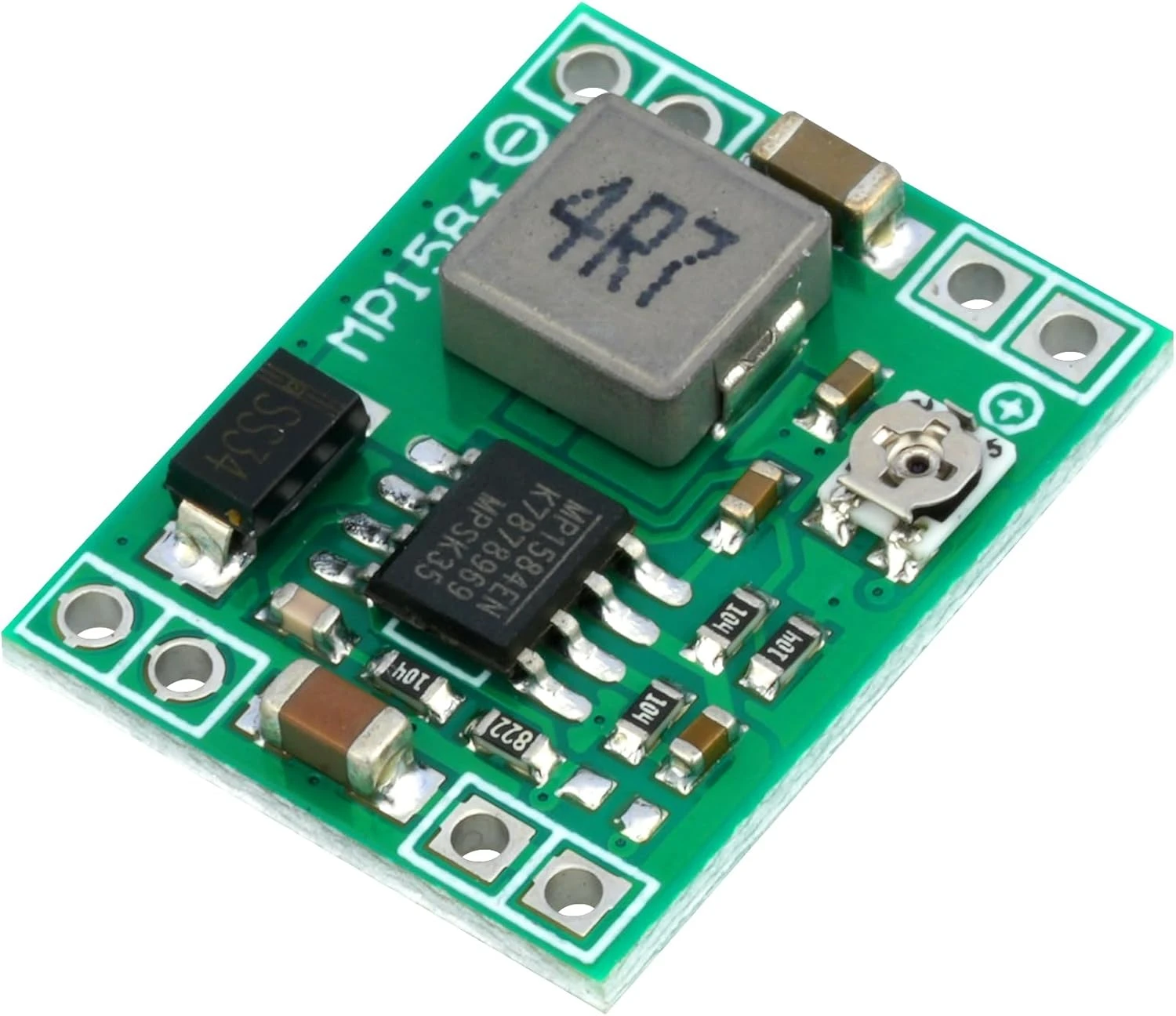

Mini MP1584 DC-DC 3A Buck module is ultra small 5V output DC to DC
step-down Buck converter uses an MP1584EN high frequency switching regulator
and integrated high voltage power MOSFET.
It
features soft start, thermal shutdown, and under-voltage lockout (UVLO) to
protect the module from operating at the insufficient supply voltage.
Small
size, light weight, low internal power consumption, and wide input voltage
range of 4.5V to 28V makes this module suitable for a variety of different
applications where small size and lightweight voltage conversion is needed,
including RC cars and airplanes, quadcopters, robotics, Arduino modules, and
DIY devices.
Specifications:
·
Model
/ Name: Ultra-small DC-DC step-down module
·
Input
Voltage: 4.5V to 28V
·
Output
Voltage: 0.8V to 20V
·
Output
Current: 3A (Max)
·
Conversion
efficiency: 92% (Highest)
·
Output
Ripple: less than 30mV
·
Switching
frequency: 1.5MHz (highest) typically 1MHz
·
Operating
Temperature: -45 ℃
to 85 ℃
·
Size:
22mm * 17mm * 4mm (L * W * H)
Package
Contents:
1 x DC-DC step-down
module
