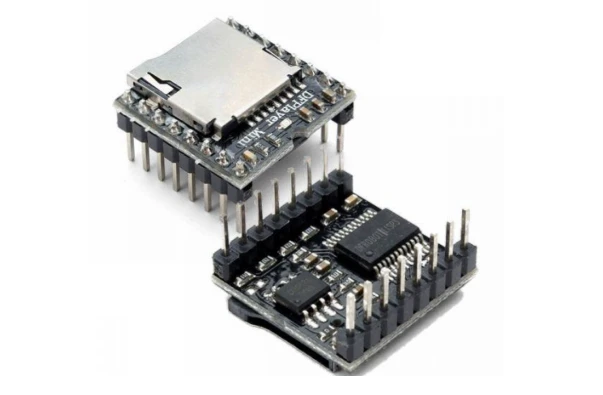

This card is a mini MP3 card. The card has one speaker output. The
module can be used as a standalone module with installed battery, speaker and
push buttons, or it can be used with Arduino, ESP32, Raspberry Pi and any
microcontroller with UART. Fully supports FAT16, FAT32 file system, maximum
support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH.
·
You
can connect with button on the pin so playback switching at the touch of a
button.
·
Default
9600 baud rate
·
Support
MP3, WAV, WMA audio formats
·
High
support for 48KHz sample rate and 24-bit DAC output can be output to provide
high-quality audio playback effect.
·
Supported
sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
·
24
-bit DAC output, support for dynamic range 90dB, SNR support 85dB
·
Fully
supports FAT16, FAT32 file system, maximum support 32G of the TF card, support
32G of U disk, 64M bytes NOR FLASH
·
A
variety of control modes, I/O control mode, serial mode, AD button control mode
·
Audio
data sorted by folder supports up to 100 folders, every folder can hold up to
255 songs
·
30
level adjustable volume, 6 -level EQ adjustable
·
Communicating
with UART
