The LM2596-ADJ is a versatile and highly efficient DC-DC buck (step-down) voltage regulator designed to convert a higher input voltage to a lower, regulated output voltage. It is part of the LM2596 series from Texas Instruments and is known for its ease of use, reliability, and robust performance. The adjustable version (ADJ) allows for a wide range of output voltages, making it suitable for various applications requiring precise voltage regulation.

Key Features:

·         Adjustable output voltage for flexibility in various applications

·         High efficiency up to 75% (depends on configuration and load)

·         Can supply up to 3A of continuous output current

·         Built-in thermal overload protection and short-circuit protection

·         Low ripple and noise for stable output

·         Simple external component design for ease of use

Technical Specifications:

·         Input Voltage Range: 4V to 40V

·         Output Voltage Range: Adjustable from 1.23V to 37V

·         Output Current: Up to 3A

·         Efficiency: Up to 75% (depends on load and configuration)

·         Switching Frequency: 150 kHz (typical)

·         Ripple and Noise: Typically <30mV

·         Thermal Shutdown: Integrated

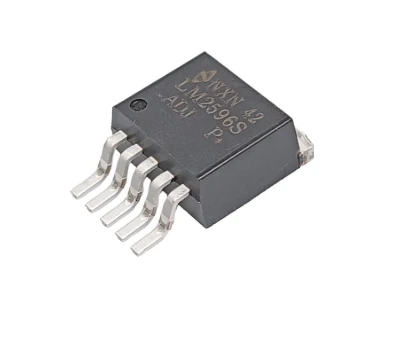

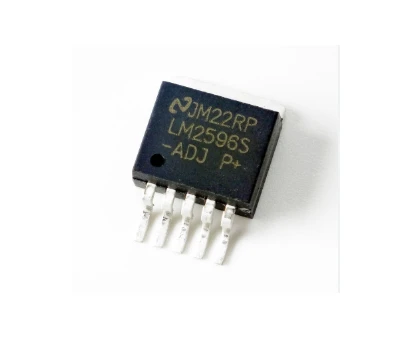

Package Type: Typically available in TO-263

Applications:

Power supplies for electronic devices

Battery-powered applications

LED drivers

Adjustable voltage regulators

Power management in electronic circuits

DIY electronics projects

Usage:

Connect the input voltage to the appropriate pins of the LM2596-ADJ.

Use external resistors to set the desired output voltage according to the feedback network.

Connect the output to the load and ensure that the current requirements do not exceed the regulator’s capacity.

Implement appropriate heat sinking if operating at high currents to ensure thermal stability.

Caution:

Verify that the input and output voltage ratings are within the specified limits to avoid damage.

Properly size and place external components (e.g., capacitors, inductors) to achieve desired performance and stability.

Handle the regulator with care to avoid damage from electrostatic discharge (ESD) and follow recommended operating conditions.

Datasheet:
For detailed technical specifications, refer to the LM2596-ADJ Datasheet.
