The

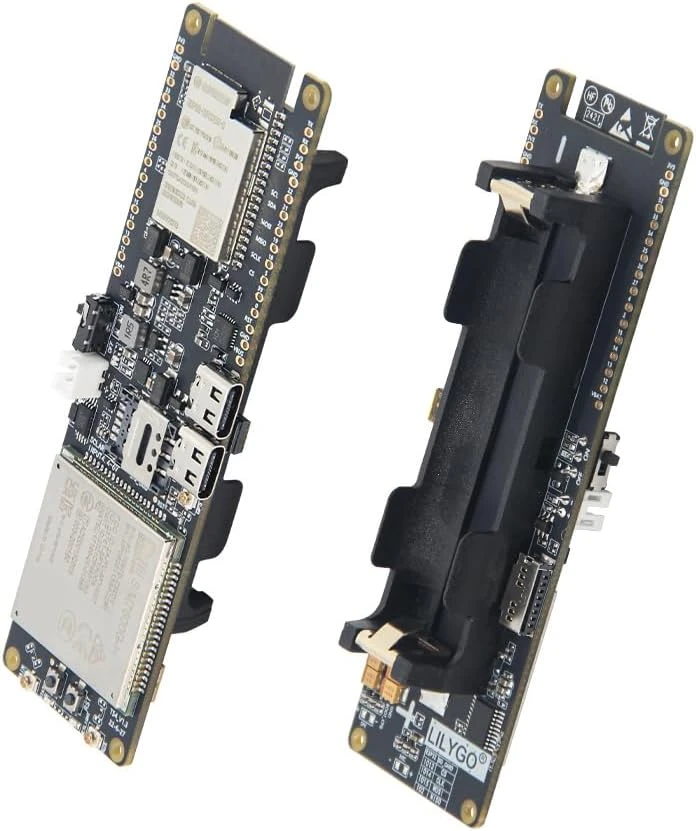

TTGO T-SIM7600G-H R2 from LilyGO is a microcontroller based on an ESP32 with a
built-in SIM7600G-H R2 Module. This means that the module has numerous wireless
communication options such as GNSS (GPS), Wi-Fi, Bluetooth and LTE. The board
has a USB-C connection with which it can be programmed (USB-C cable not
included). In order to facilitate the use of various application scenarios, two
T-type-c interfaces are reserved on the development board, one is used to
upload the program to the main control chip, and the other is the SIM7600G-H
USB Dongle industrial network card interface. It can be connected to the
computer via a USB cable to write programs and execute the corresponding
functions of the program. Module number T-SIM7600G-H.T-SIM7600G-H is a
programmable development board with WIFI/Bluetooth-compatible/4G LTE CAT4. The module also has an integrated 18650
battery holder (battery not included).
Features:
100% brand new
and high quality
Interfaces:
UART, SPL, 12C-, CAN, 12S, SDIO.

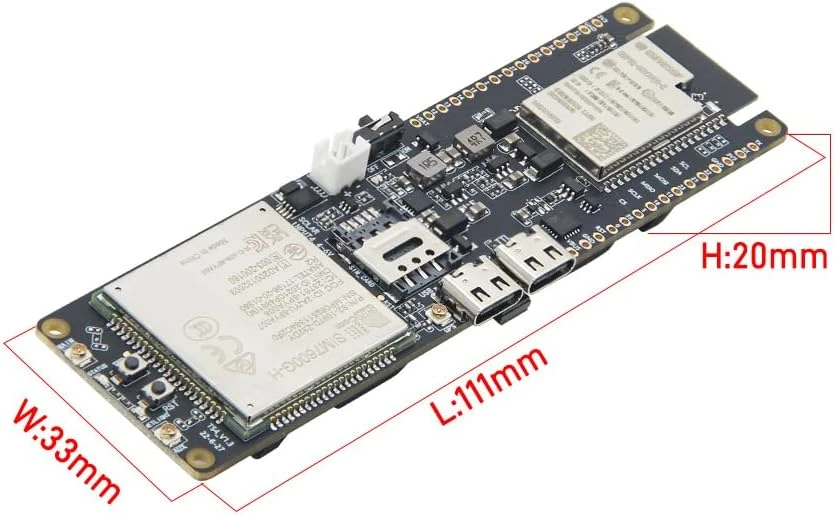

Size: approx.
111x37mm/4.37x1.46in
GNSS :
BeiDou/GPS/GLONASS
Frequency Bands:
LTE-FDD : B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/ B28/B66
LTE-TDD:
B34/B38/B39/ B40/B41
ESP32 MCU
Parameters
v Clock Speed : 240Mhz
v Antenna : On-board
v Flash : 16 MB
v PSRAM : 8MB
v Bluetooth: v4.2 BR/EDR and BLE

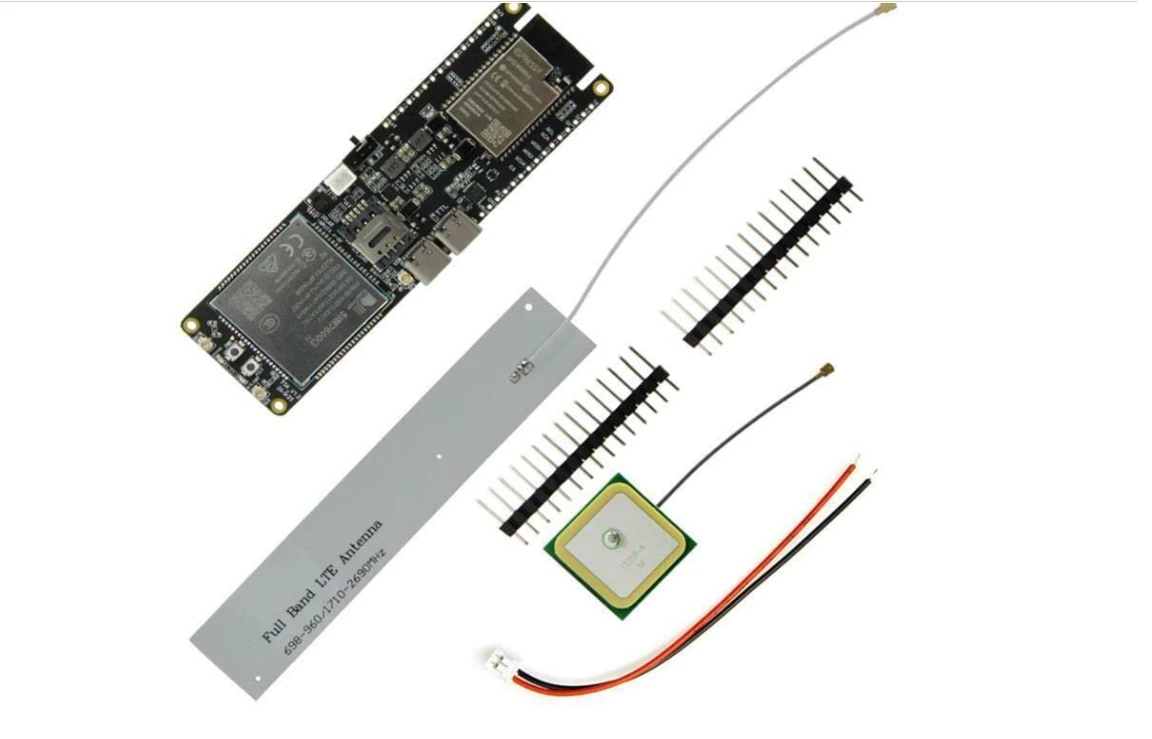

Package contents:
·
1x
T-SIM7600G-H R2
·
1x
LTE antenna
·
1x
GNSS antenna
·
1x
JST-PH female cable
·
2x
Male pin header 15p
