LDR Light Sensor Module for Arduino

(0) 0 Reviews 0 Orders 0 Wish listed

UGX5,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

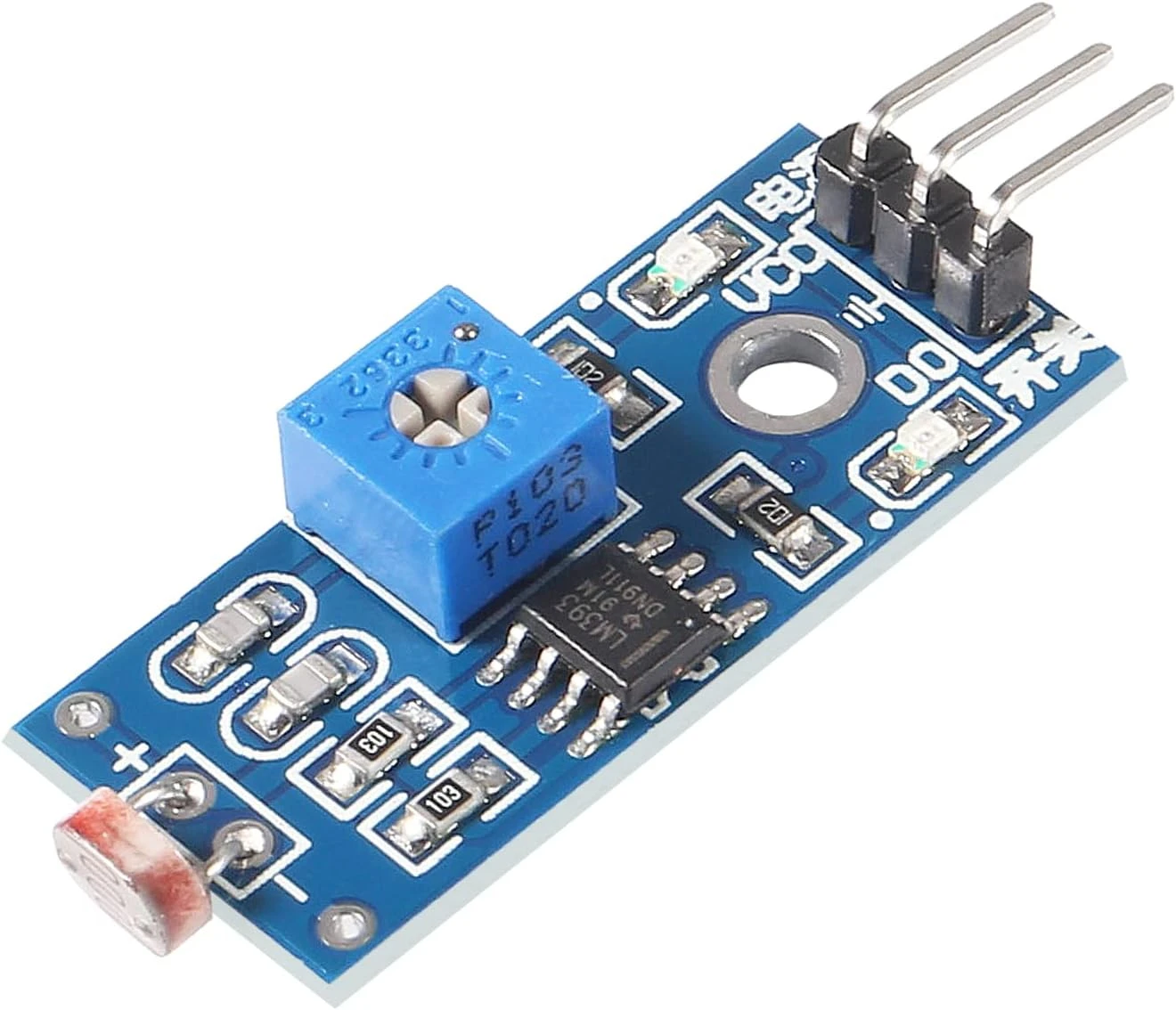

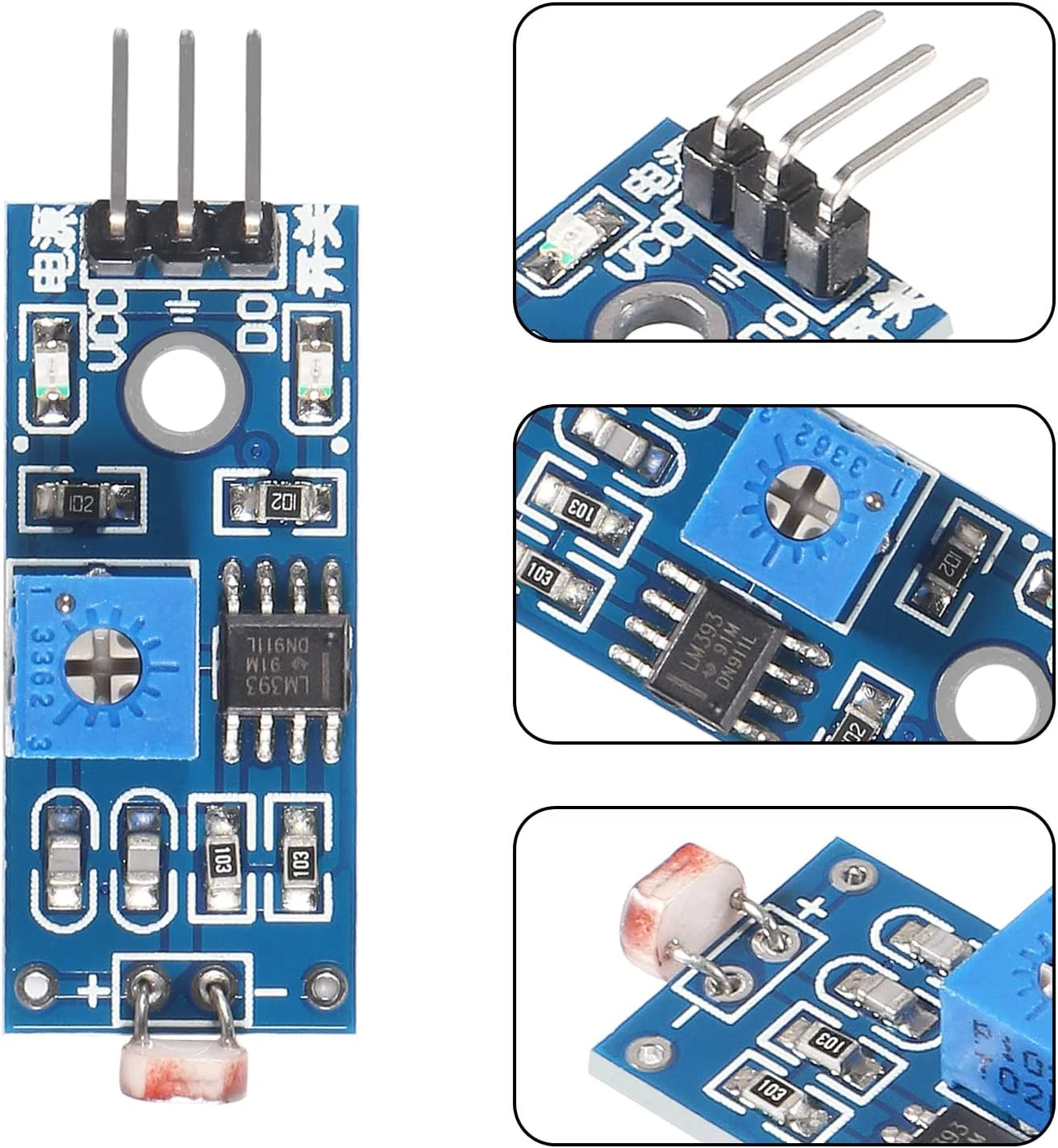

This LM393 Photosensitive Light-Dependent Control Sensor Module is using a high-quality LM393 voltage comparator. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal gives a clean and good waveform.

Driving ability is 15mA with the adjustable potentiometer, it can adjust the brightness of the light detected. Working voltage is 3. 3V to 5v. Where output is digital switch output. Since this module is sensitive to the light, usually used for detecting the ambient brightness and light intensity.

When there is no light or the light intensity cannot reach the value, DO output is high level. When light intensity over than the value, the module DO output is low level. The module digital output DO can be directly connected to the microcontroller, use microcontroller detects high or low level, so that can detect the environmental light intensity change.

You can use this board digital output DO port drive relay module directly(our store on sale these relay modules), and can also use as a photoelectric switch. The analog output of connects with adc module and it can get more precise light intensity value through the adc-converter.

Specifications:

· A sensitive sensor type photoresistor

· The comparator output signal is clean, good waveform, driving ability, more than 15mA.

· Adjustable potentiometer to adjust the brightness of the light detection

· Working voltage: 3.3V-5V

· Output format: digital switching outputs (0 and 1)

· A fixed bolt holes for easy installation

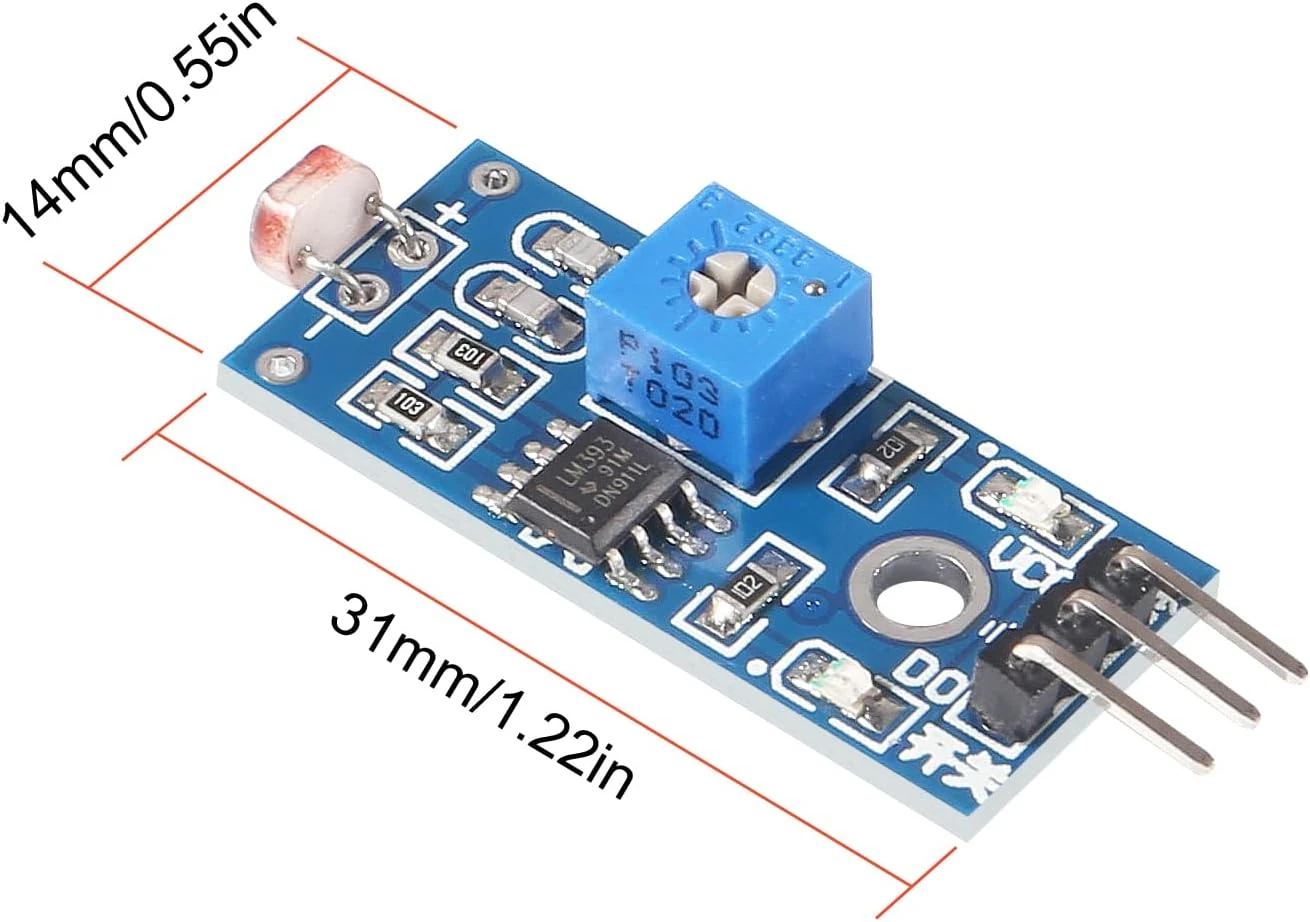

· PCB size: 3.2cm x 1.4cm

· Wide voltage LM393 comparator

Package contents:

1x LDR module
