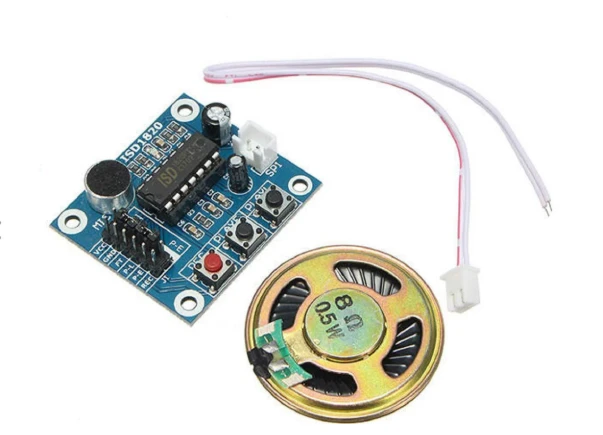

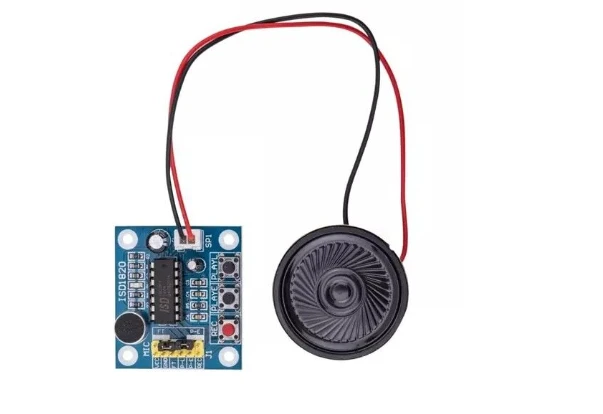

ISD1820 Voice Recording Module

(0) 0 Reviews 0 Orders 1 Wish listed

UGX15,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

The ISD1820 Voice Recording Module for Arduino is a high-performance voice recording and playback device that is compatible with the Arduino microcontroller. It is designed to provide an easy way to record and play back audio for a wide variety of projects.

Technical specs:

· Operating voltage: 3V-5V

· Recording time: 10s-60s (depends on the capacity of the connected flash chip)

· Sampling rate: 6.4kHz

· Dimensions: 40mm x 24mm x 15mm

Pin connections:

· VCC: Connect to power supply voltage (3V-5V)

· GND: Connect to ground

· PTT: Connect to digital pin on Arduino

· PLAY: Connect to digital pin on Arduino

· ERASE: Connect to digital pin on Arduino (optional)

· MIC: Connect to microphone

· SPK: Connect to speaker

This ISD1820 Voice Recording Module is a great choice for projects such as voice-controlled devices, voice prompts for interactive projects and audio recorders. It can record and play back audio, and it only requires 3 digital pins from the Arduino to control the recording and playback. The module can be powered using a battery or using external power supply. It is also equipped with a flash chip that stores the recorded audio, and the capacity of the flash chip determines the recording time. It is a reliable device that can be used to record and play back audio, making it a versatile device for a wide range of musical applications.
