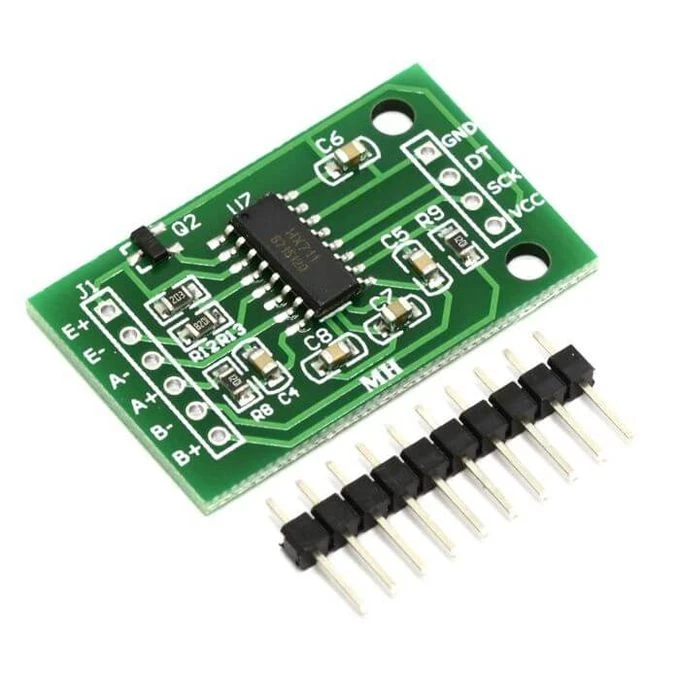

This
module uses 24 high-precision A / D converter. This chip is designed for
high-precision electronic scale and design, has two analog input channels,
programmable gain of 128 integrated amplifier. The input circuit can be
configured to provide a bridge voltage electrical bridge (such as pressure,
load) sensor model is an ideal high-precision, low-cost sampling front-end
module.
Specification:
·
Two
selectable differential input channels
·
On-chip
power supply regulator for load-cell and ADC analog power supply
·
On-chip
oscillator requiring no external component with optional external crystal
·
On-chip
power-on-reset
·
Data
Accuracy: 24 bit (24 bit analog-to-digital converter chip)
·
Refresh
Frequency: 10/80 Hz
·
Operation
supply voltage range: 4.8 ~ 5.5V
·
Operation
supply Current: 1.6mA
·
Operation
temperature range: -20 ~ +85℃
·
Dimension:
Approx. 36mm x 21mm x 4mm / 1.42" x 0.83" x 0.16"
