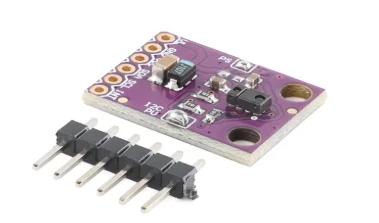

This is the
RGB and Gesture Sensor, a small board with a built in APDS-9960 sensor
that offers ambient light and color measuring, proximity detection, and
touchless gesture sensing. With this RGB and Gesture Sensor you will be able to
control a computer, microcontroller, robot, and more with a simple swipe of
your hand! This is, in fact, the same sensor that the Galaxy S5 uses and is
probably one of the best gesture sensors on the market for the price.
The
APDS-9960 is a serious little piece of hardware with built in UV and IR
blocking filters, four separate diodes sensitive to different directions, and
an I2C compatible interface. For your convenience we have broken out the
following pins: VL (optional power to IR LED), GND (Ground), VCC (power to
APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each
APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm).
Specifications:
Model: GY-APDS 9960-3.3
Using chip: APDS-9960
Power supply: 3.3v
Communication: IIC communication protocol
Size: 20mm * 15.3mm
