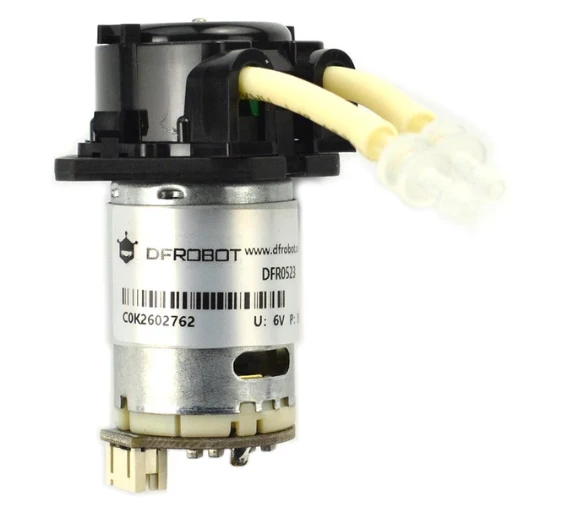

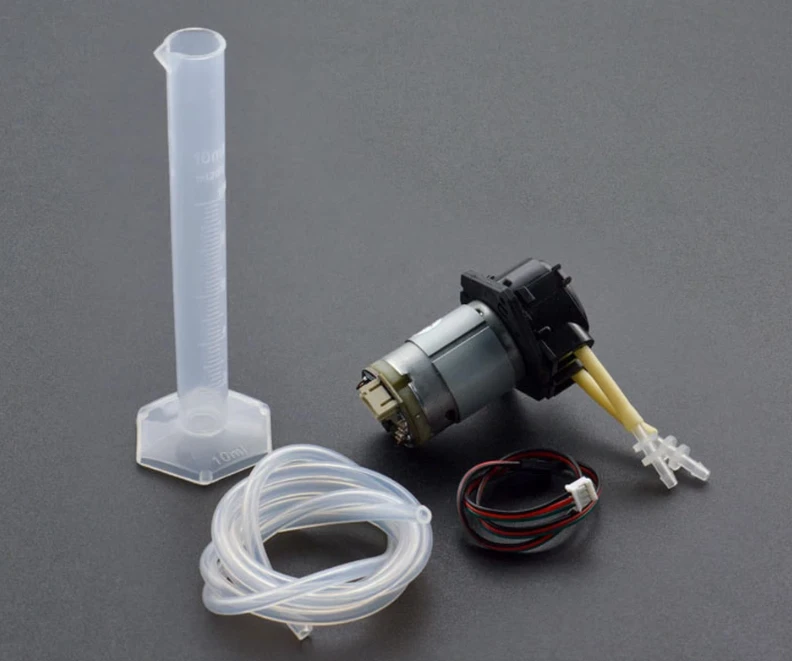

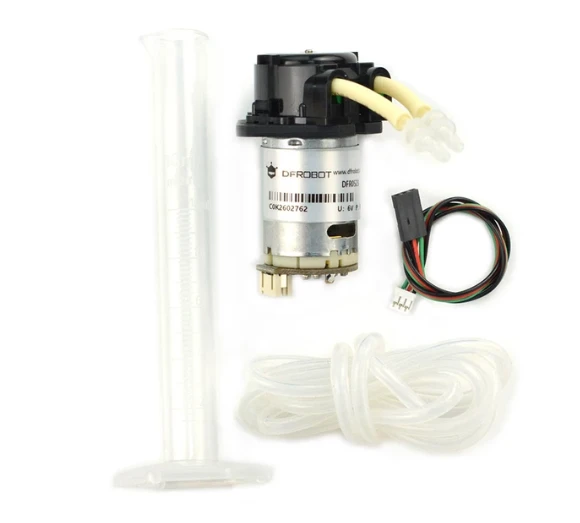

Gravity: digital peristaltic pump is a new product developed by DFRobot. This is a new member of our water quality monitoring devices. It is an actuator for the liquid system.
DFRobot peristaltic pump integrates a PPM motor driver on the pump; this is a Gravity interface (PH2.0-3P) motor driver. The control signal is compatible with standard servo motor, you can use Arduino, Raspberry Pi and other kinds of microcontrollers to control its direction and flow speed. The tube in the pump head is made up of BPT material, which is anti-acid and long life.

Peristaltic pumps are a kind of positive displacement pump used for delivering small amounts of fluid. The fluid is contained within a flexible tube fitted inside a circular pump casing. When the rotor rotates continuously, the fluid in the tube will be squeezed and deliver to the other side. In this way, the liquid flow rate can be easily accuracy controlled.

Key Features:

Peristaltic pump:

Low noise,

Low cost,

Simple structure,

Easy to maintain,

Three rotors with moderate pulsation,

Non-toxic and pollution-free

Driver board

Gravity 3Pin digital connector, plug and play

Servo PPM control signal, driving easily and compatible with Arduino, Raspberry Pi, micro: bit and other controllers.

Specifications:

Driver Board

Input Voltage: 5V-6V

Maximum Continuous Operating Current: 1.8A

Peak Current: 2.5A

Quiescent Current: <1mA (No PPM Signal Input)

PPM Signal Resolution: 1us

Positive Pulse Width of the PPM Signal: 500us-2500us

Forward Pulse Width Range: 500us-1400us (500us: max forward speed)

Stop Pulse Width Range: 1400us-1600us

Inverted Pulse Width Range: 1600us-2500us (2500us: max inverted speed)

PPM Frequency: 50Hz (Servo Control Signal)

Connector: Gravity PH2.0-3P

Size: 27.4 x 28.7 mm/1.08 x 1.13 inches

Peristaltic Pump

Motor: DC Motor

Rated Voltage: 6V

Rated Power: 5W

Tube Material: BPT

Tube Specifications: inner diameter 2.5mm, outer diameter 4.5mm

Pump Head Material: Engineering Plastics

Pulsation: Three Rollers, Small Pulsation

Flow: ≥45ml/min

Working Conditions: ambient temperature 0 ~ 40 ℃, relative humidity <80%
