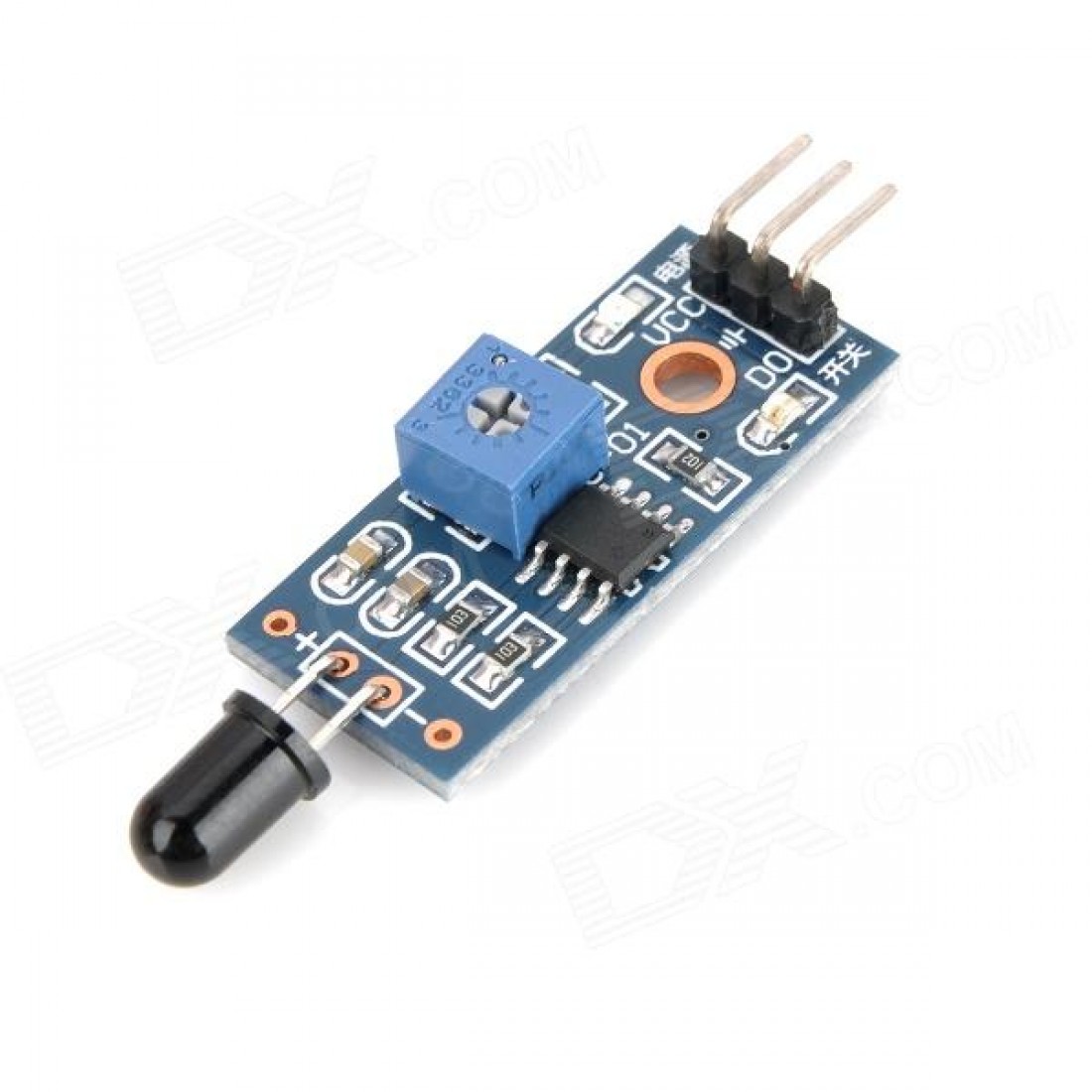

FIRE FLAME SENSOR
(0) 0 Reviews 0 Orders 0 Wish listed
UGX5,000.00
Quantity :
Total price :
  (Tax : )
Out of stock

Description:

  • Sensitive to flame spectrum
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity
  • Signal output indicator

Specifications:

  • Spectrum range: 760nm ~ 1100nm
  • Detection angle: 0 - 60 degree
  • Power: 3.3V ~ 5.3V
  • Operating temperature: -25℃ ~ 85℃
  • Dimension: 27.3mm * 15.4mm
  • Mounting holes size: 2.0mm

Applications

  • Fire detection
  • Fire fighting robot
  • Fire alarm
  • How to Use



In the case of working with a MCU:

VCC ↔ 3.3V ~ 5.3V

GND ↔ power supply ground

AOUT ↔ MCU.IO (analog output)

DOUT ↔ MCU.IO (digital output)

Note: the Flame Sensor is used for detecting fire without any fire-protection for itself, please keep distance from the fire to avoid damage.
