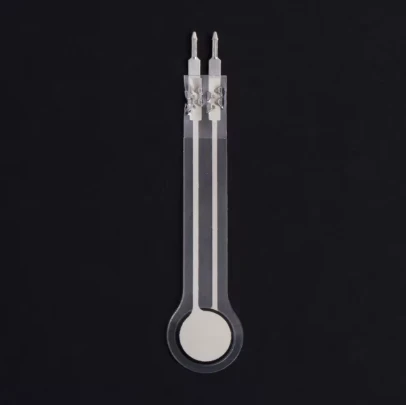

DC 3.3 V DF9-40
Pressure Sensor 0-20 KG High Precision Resistor Model Film Waterproof Sensor
Attachment
Feature:
This flexible pressure
sensor is based on a new nano-pressure-sensitive material and is complemented
by an ultra-thin substrate.
Highly sensitive flexible nanomaterial enable highly sensitive pressure sensing.
It has a pressure sensitive function as well as a waterproof function.
When the sensor detects an external pressure, the resistance of the sensor
changes.
The pressure signal can be converted to a corresponding electrical signal
output using a simple circuit.
Specifications:
Measuring range: 0-20kg
Thickness: <0.25mm
Accuracy: Β±2.5% (85% measurement range)
Repeatability: <Β±5.8 (50% load)
Lifespan: > 1 million times
Initial resistance: >10MΞ© (no load)
Response time: <1ms
Recovery time: <15ms
Test voltage: DC 3.3V (typical)
EMI: will not produce
EDS: not sensitive
Induction area outer
diameter: 9 mm
Induction area inner diameter: 7.5 mm
Pin pitch: 2.54mm
Packing list:
1 * Pressure Sensor
