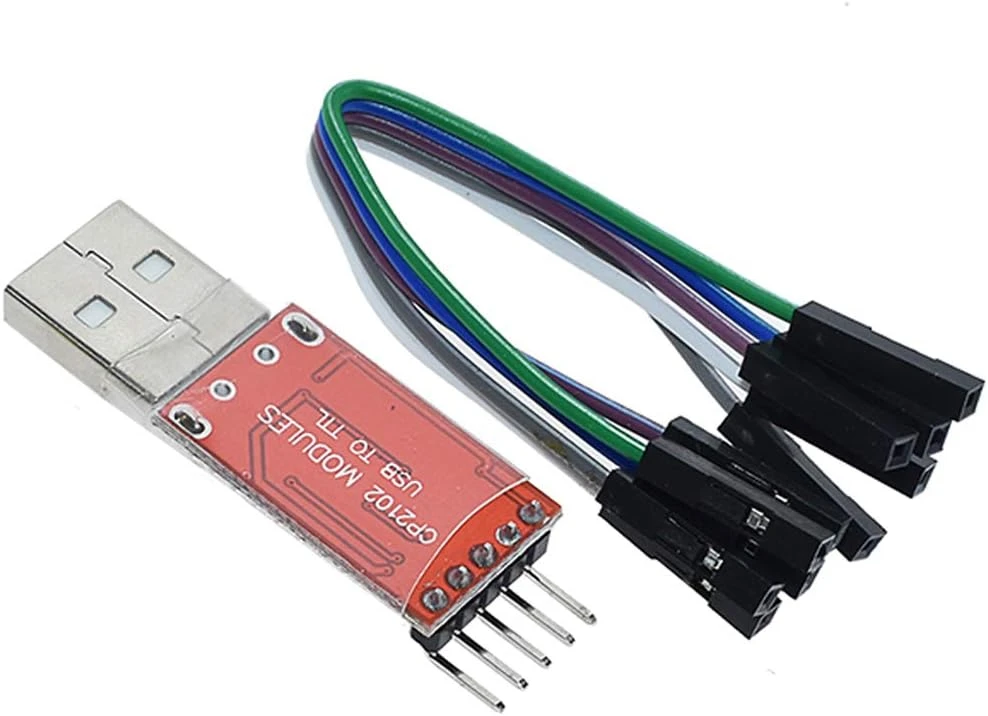

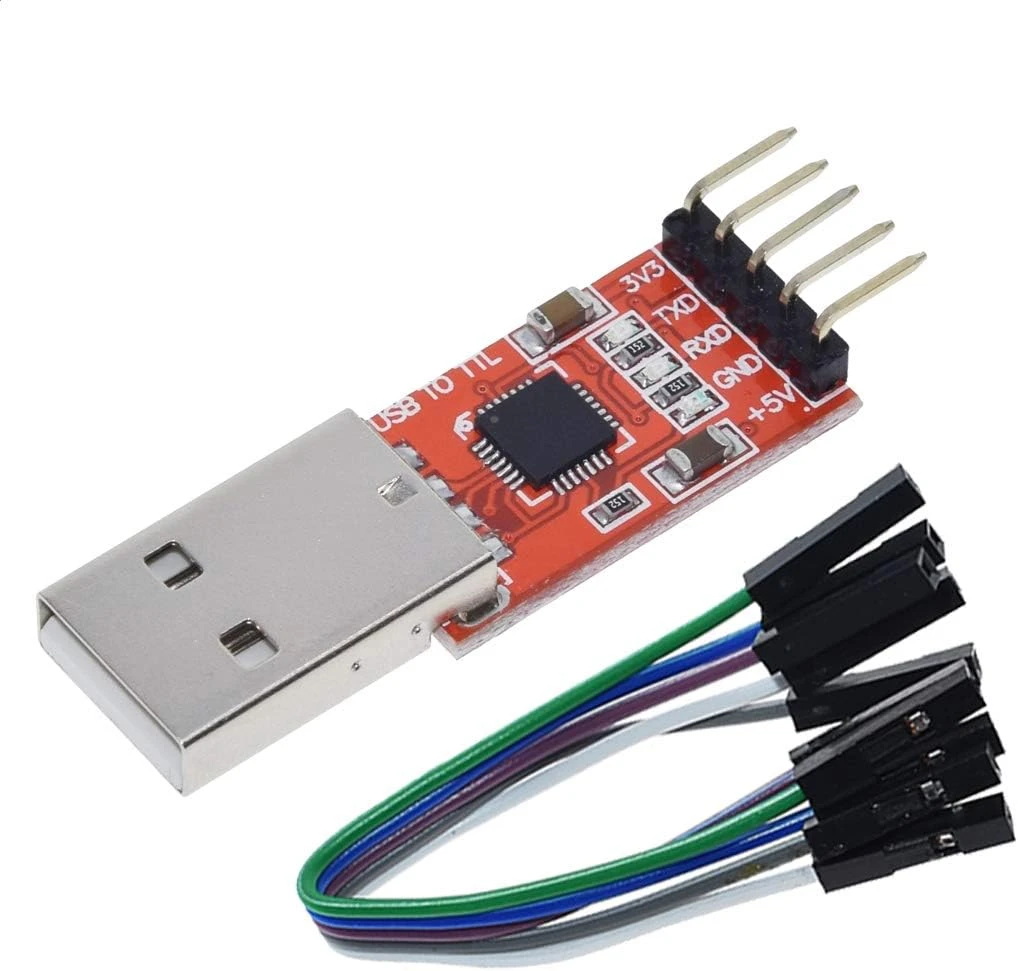

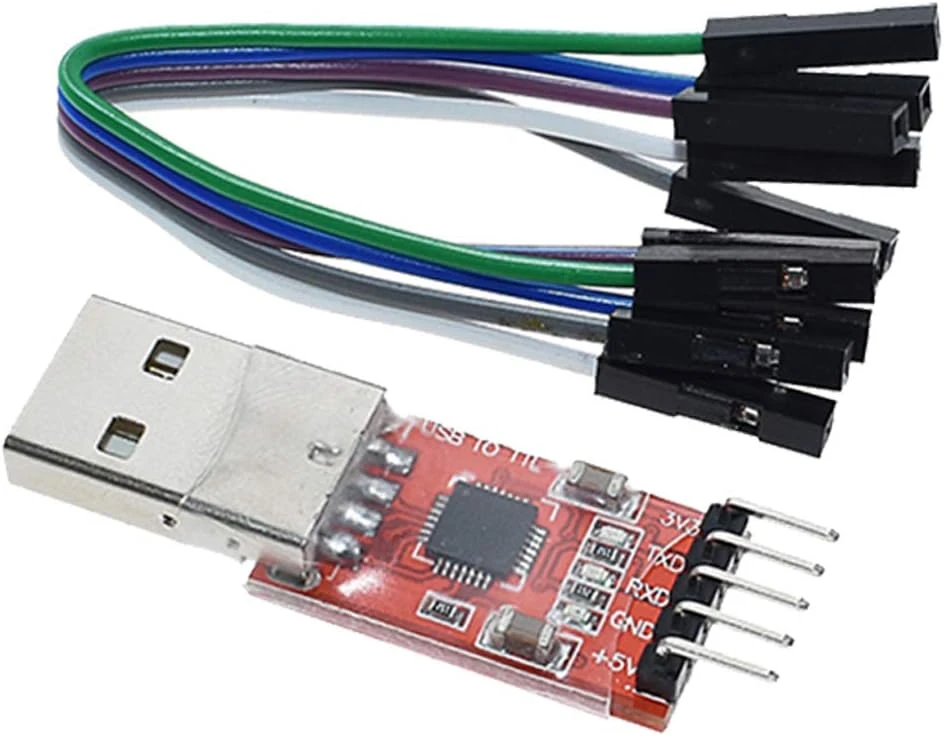

This is a USB 2.0 to TTL UART 6PIN CP2102 Module Serial
Converter. Connect MCU easily to your computer!
Features:
·
Stable and reliable chipset CP2102
·
USB specification 2.0 compliant with full-speed
12Mbps.
·
Standard USB type A male and TTL 6pin
connector. 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
·
All handshaking and modem interface signals.
·
Baud rates: 300 bps to 1.5 Mbps.
·
Byte receive buffer; 640 byte transmit buffer.
·
Hardware or X-On/X-Off handshaking supported.
·
Event character support Line break
transmission.
·
USB suspend states supported via SUSPEND pins.
·
Temperature Range: -40 to +85.
·
Supports Windows 98SE, 2000, XP, Vista,
Window7, Mac OS 9, Mac OS X & Linux 2.40
Note:
Please install the following driver to work in Win 10.
https://www.silabs.com/documents/public/software/CP210x_Universal_Windows_Driver.zip
