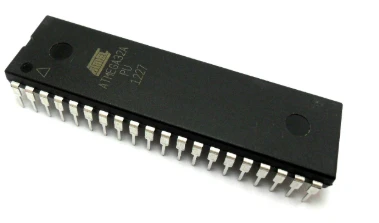

ATMEGA32A Microcontroller

(0) 0 Reviews 0 Orders 0 Wish listed

UGX30,000

Quantity :

Total price :

(Tax : )

Overview
Reviews

The low-power, high-performance Microchip 8-bit AVR® RISC-based microcontroller featuring 32 KB self-programming Flash program memory, 2 KB SRAM, 1 KB EEPROM, 8-channel 10-bit A/D converter and JTAG interface for on-chip-debug. The device achieves 16 MIPS throughput at 16 MHz at 2.7-5.5V operation.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching one MIPS per MHz, allowing you to optimize power consumption versus processing speed.

Features:

•Chip microcontroller 8 AVR 32K Flash 40PDIP
•Controller Series: AVR MEGA
•Core Size: 8bit
•Input / Output: 32
•Power Min Voltage: 2.7V
•The maximum value of the power supply voltage: 5.5V
•Digital chip package: DIP
•Number of Pins: 40
•Program Memory Size: 32KB
•EEPROM storage capacity: 1KB
•Memory capacity, RAM: 2KB
•CPU Speed: 16MHz
•Peripheral devices: ADC, Comparator
•Embedded Interface Type: JTAG, SPI, USART
•Operating Temperature Min: -40 ° C
•The highest operating temperature: 85 ° C
•SVHC (SVHC): No SVHC (20-Jun-2013)
•PWM Channels: 4
•Device label: megaAVR
•Operating temperature range: -40 ° C to + 85 ° C
•Oscillator Type: External, Internal
•ADC Inputs: 8
•Supply voltage range: 2.7V to 5.5V
•Surface Mount Devices: through-hole
•Timers: 3
•Flash memory capacity: 32KB
