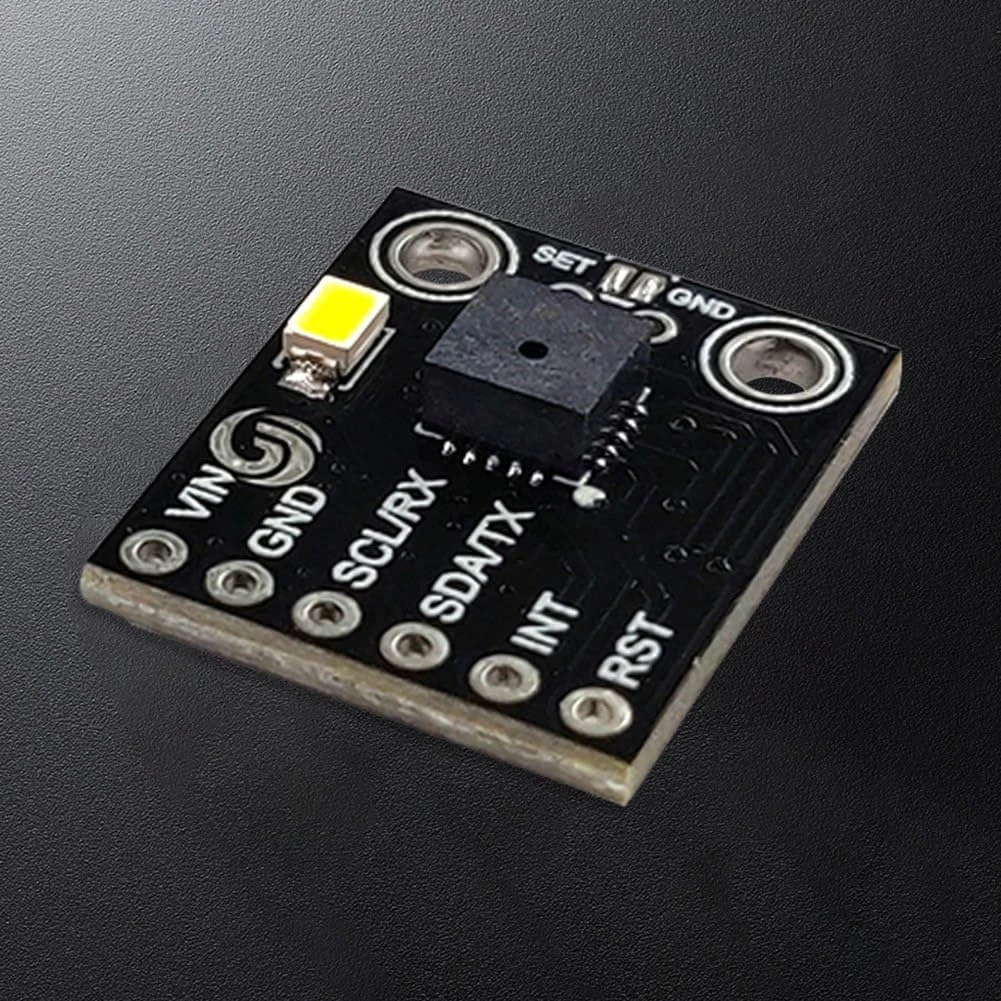

The
AS7263 is a digital 6-channel spectrometer for spectral identification in the
near IR (NIR) light wavelengths. AS7263 consists of 6 independent optical
filters whose spectral response is defined in the NIR wavelengths from
approximately 600nm to 870nm with full-width half-max (FWHM) of 20nm. An
integrated LED driver with programmable current is provided for electronic
shutter applications. The AS7263 integrates Gaussian filters into standard CMOS
silicon via Nano-optic deposited interference filter technology and is packaged
an LGA package that provides a built in aperture to control the light entering
the sensor array. Control and Spectral data access is implemented through
either the I²C register set, or with a high level AT Spectral Command set via a
serial UART.
Applications:
• Product
authentication
• Bank
note/document validation
• Chemical
analysis
• Food/beverage
safety
Package
Contents:

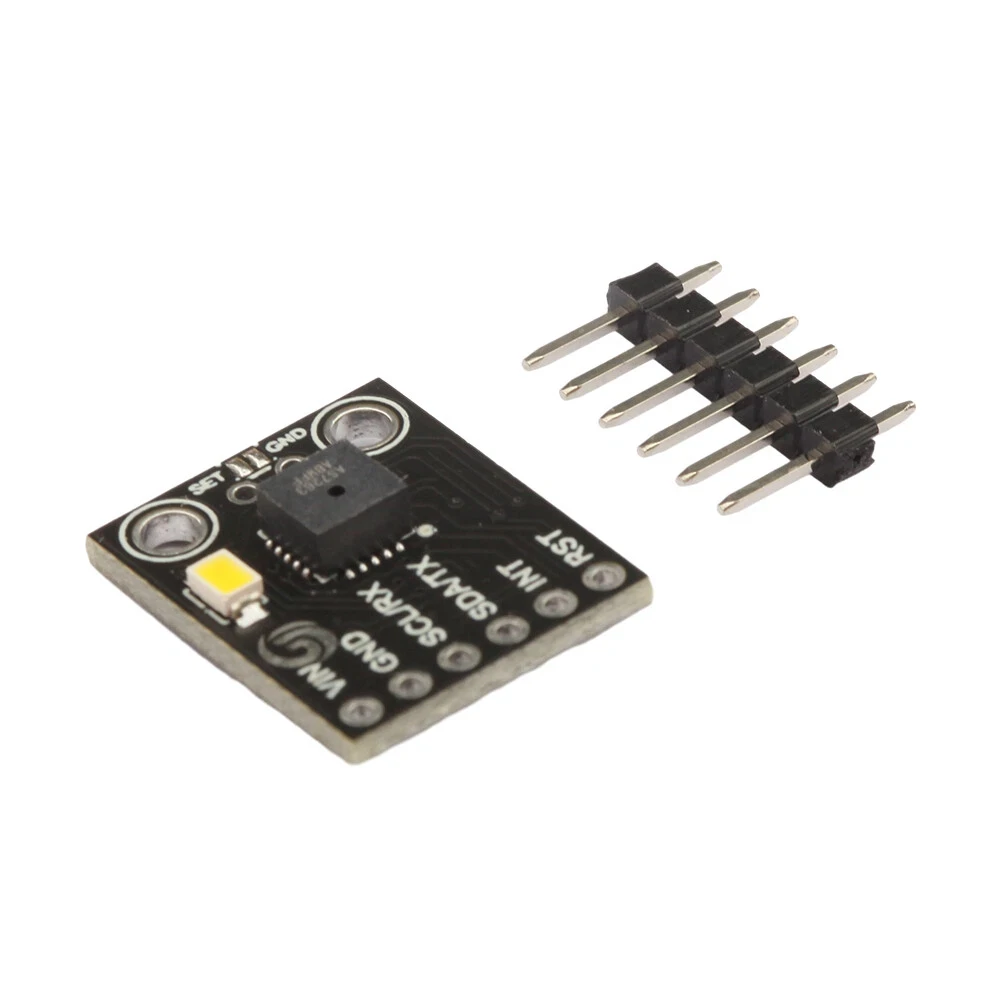

1 x Spectrometer Module
