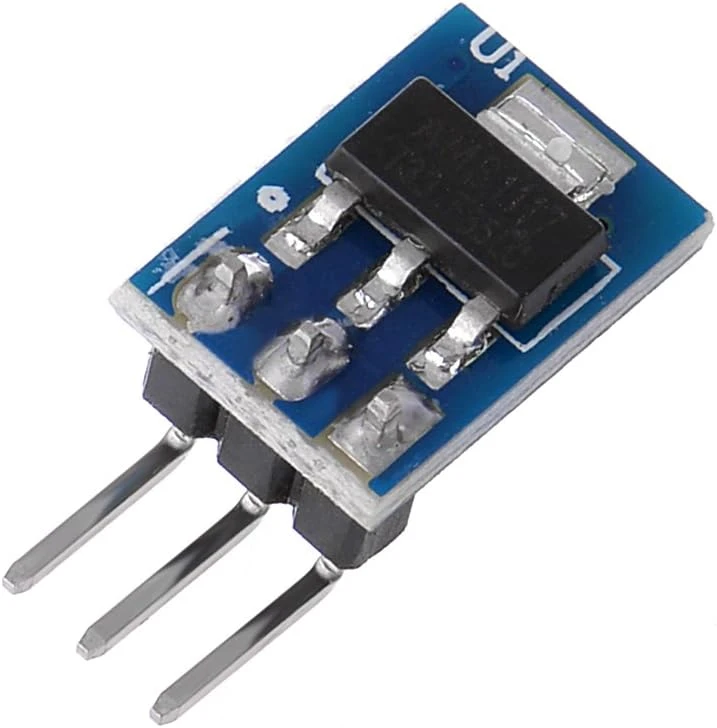

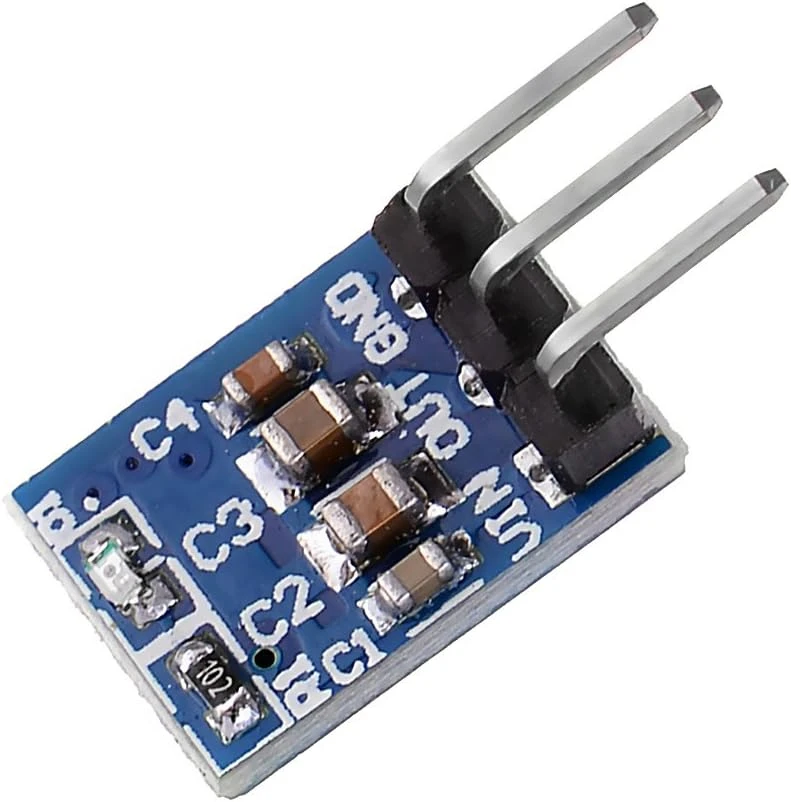

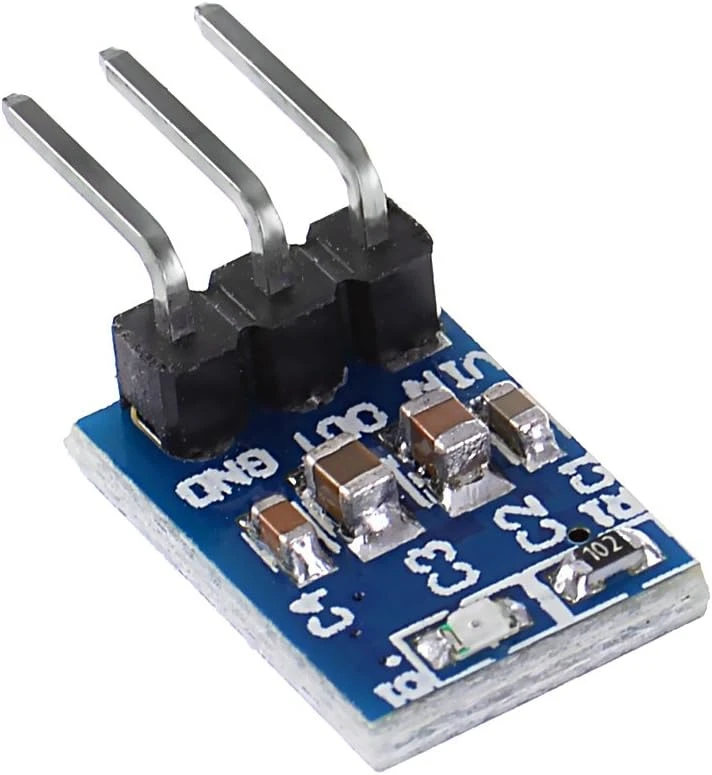

AMS1117-3.3
is a positive Voltage Regulator Step Down Power Supply Module, support DC
4.75-12V input and 3.3V fixed voltage and 0.8A current output.
The
module is suitable for electronic devices such as SCM project design needs 5V

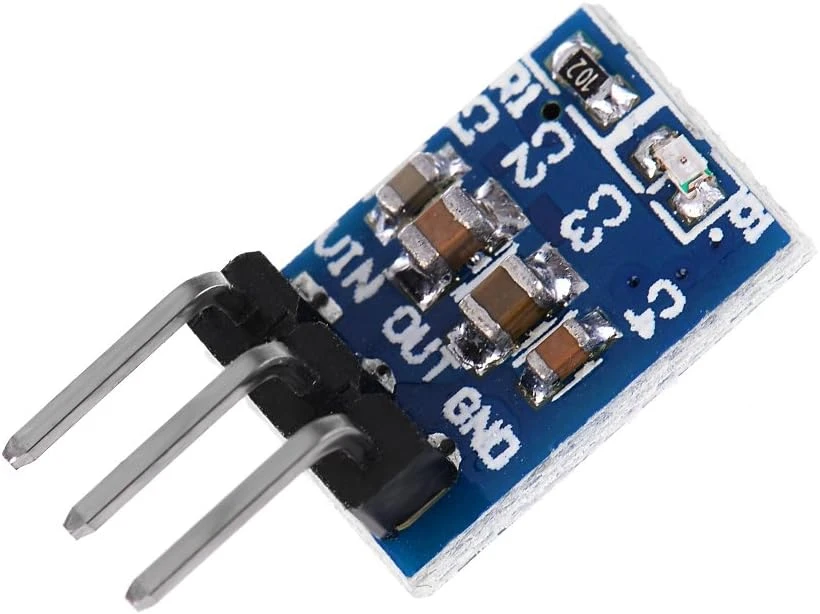

power supply, It is simple Dual-panel design and the Input output using the 2

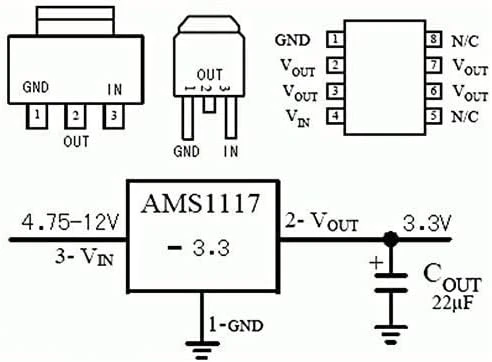

Pin single row pin for easy connection. AMS1117-3.3 pinout can be easy to
connected with your MCU development and provide the constant power supply.
Applicable
for high-efficiency linear regulator Published Active Power Regulator Battery
Charger Active instrument.
Specifications:
·
Output
current: 1A
·
Line
adjustment rate: 0.2% (maximum)
·
Load
regulation: 0.4% (max.)
·
Package
Type: SOT-223
·
Operating
junction temperature range: -40 to 125°C
·
Welding
temperature (25 seconds): 265°C
·
Storage
temperature: - 65~150°C
·
Output
voltage: 3.267 to 3.333V (IOUT: 0 to 1A, VIN :4.75V to 12V)
·
Line
adjustment (maximum): 10mV (VIN :4.75V to 12V)
·
Load
regulation (maximum): 15mV (VIN = 5V, IOUT: 0 to 1A)
·
Voltage
difference (maximum): 1.3V
·
Current
limit: 900 ~ 1500mA
·
Quiescent
Current (Max): 10mA
·
Ripple
suppression (minimum): 60dB
·
Size:8.6mm
x 12.33mm
Package contents:
1x AMS1117-3.3
module
